№ 585.5

Fully Discrete Integrated Amplifier

Discover the truth in every note – no matter the volume

Find a deeper connection to the music you love with the № 585.5. This integrated amplifier delivers superb performance, reproducing any source material with exceptional realism so you’re drawn into the details of your music with every single listen.

Features

№585.5 Feature 01

Detailed Digital Audio

Unlock the full potential of your digital music collection. The № 585.5 contains a premium Precision Link Digital-to-Analog Converter (DAC) that accurately reproduces audio signals and minimizes noise, so you hear the truth, passion and detail of every note.

№585.5 Feature 02

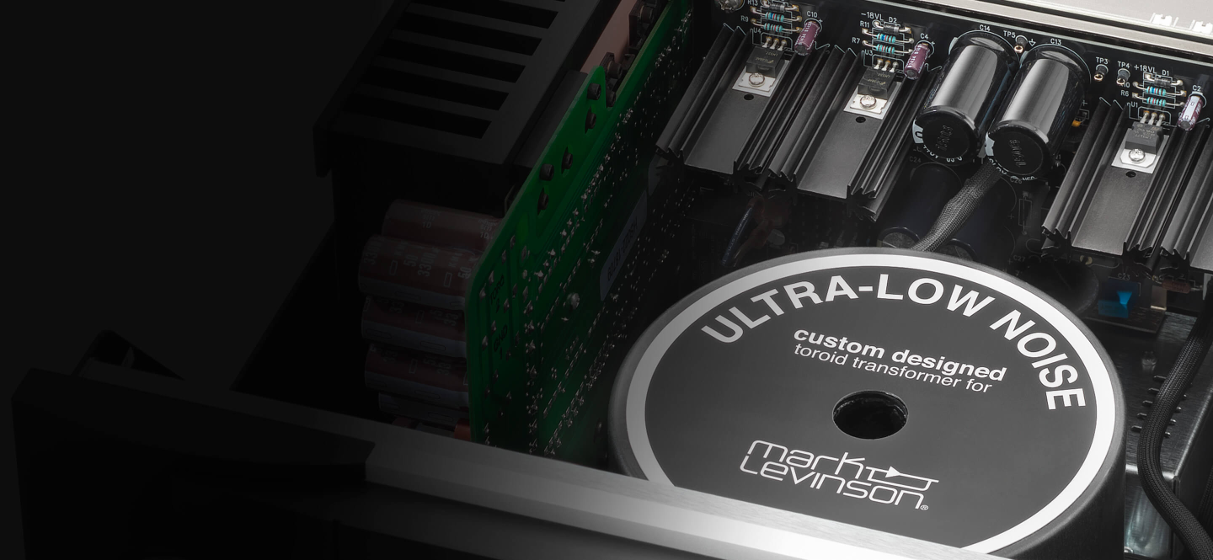

Pure Power

Fill your home with distortion-free sound. The № 585.5 contains an oversized toroidal transformer and massive capacitors that deliver all the headroom you need for your most dynamic performances.

№585.5 Feature 03

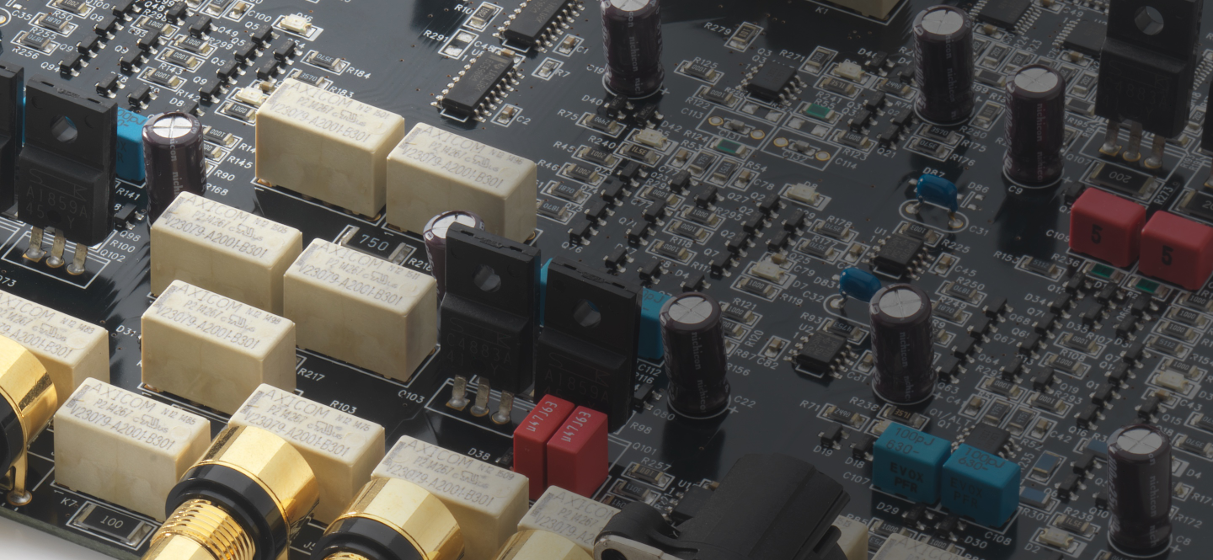

Pure Path Circuit Design

Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the № 585.5 delivers unmatched sound quality that captures the nuances of every note.

№585.5 Additional Feature 01

Details at Any Volume

Mark Levinson’s innovative R-2R ladder volume control provides balanced and consistent sound. Discern subtle details in your music, even at low volume.

№585.5 Additional Feature 02

Flexible Control Capabilities

Connect and control the № 585.5 through Ethernet, RS-232, IR input or the custom aluminum remote.

№585.5 Additional Feature 03

Home Theater Integration

Seamlessly integrate into your home theater system with SSP mode, allowing your Surround Sound Processor to control both the left and right loudspeakers powered by your № 585.5.

Reviews

“The Mark Levinson № 585.5 integrated amp is a complete success in every area of its build and performance … it speaks with a clarity unrivaled among competing products.”

“The Mark Levinson № 585.5 integrated amp is a complete success in every area of its build and performance … it speaks with a clarity unrivaled among competing products.”

Read more

Specifications

Highlights

Pure Path Phono preamp — a discrete design with no op-amps and operates exclusively in class A throughout
High resolution sound from class-A/B amps
Fixed-gain moving magnet (MM) section with 5 capacitive cartridge-loading settings
Discrete analog circuitry throughout
Moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings
Ultrasonic filter intelligently compensates for rumble and warping
32-bit/192khz performance, including DSD over PCM via USB 80Hz high-pass option allows proper operation of a 2.1-channel system
Designed and handcrafted in the USA

Inputs

6 digital inputs: USB, AES/EBU, S/PDIF
4 analog inputs

Control

Ethernet, RS-232, IR and 12V trigger ports
Mark Levinson extruded aluminum remote

Amplification

200W at 8 ohms; 300-350W at 4 ohms
A deeper relationship with sound awaits.

A deeper relationship
with sound awaits.

Experience Mark Levinson for yourself.

Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Hero Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Front Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Back Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Top Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 1 Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 2 Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 3 Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 4 Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 5 Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 6 Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 7 Nº585.5 - Black - Fully Discrete Integrated Amplifier with Class A Pure Phono Stage - Detailshot 8

Nº585.5

MLNO585P5AM

Fully Discrete Integrated Amplifier with Class A Pure Phono Stage


With superb analog performance, advanced digital audio capability and discrete class A Pure Phonostage, the Nº 585.5 reproduces any source material with exceptional realism.

Find a Dealer

Detailed Digital Audio

Unlock the full potential of your digital music collection. The № 585.5 contains a premium Precision Link Digital-to-Analog Converter (DAC) that accurately reproduces audio signals and minimizes noise, so you hear the truth, passion and detail of every note.

Pure Power

Fill your home with distortion-free sound. The № 585.5 contains an oversized toroidal transformer and massive capacitors that deliver all the headroom you need for your most dynamic performances.

Pure Path Circuit Design

Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the № 585.5 delivers unmatched sound quality that captures the nuances of every note.

Details at Any Volume

Mark Levinson’s innovative R-2R ladder volume control provides balanced and consistent sound. Discern subtle details in your music, even at low volume.

Flexible Control Capabilities

Connect and control the № 585.5 through Ethernet, RS-232, IR input or the custom aluminum remote.

Home Theater Integration

Seamlessly integrate into your home theater system with SSP mode, allowing your Surround Sound Processor to control both the left and right loudspeakers powered by your № 585.5.

Nº585.5

Evolution

The Mark Levinson Nº 585 has swept up best in class awards and countless accolades around the world, and is now widely regarded as perhaps the finest integrated amplifier ever made. Now, the Nº 585.5 redefines the playback quality of a classic medium; by adding the same Pure Phono stage found in the award winning Nº 523 and Nº 526 preamplifiers taking the reproduction of any source material to new heights of realism.

Architecture

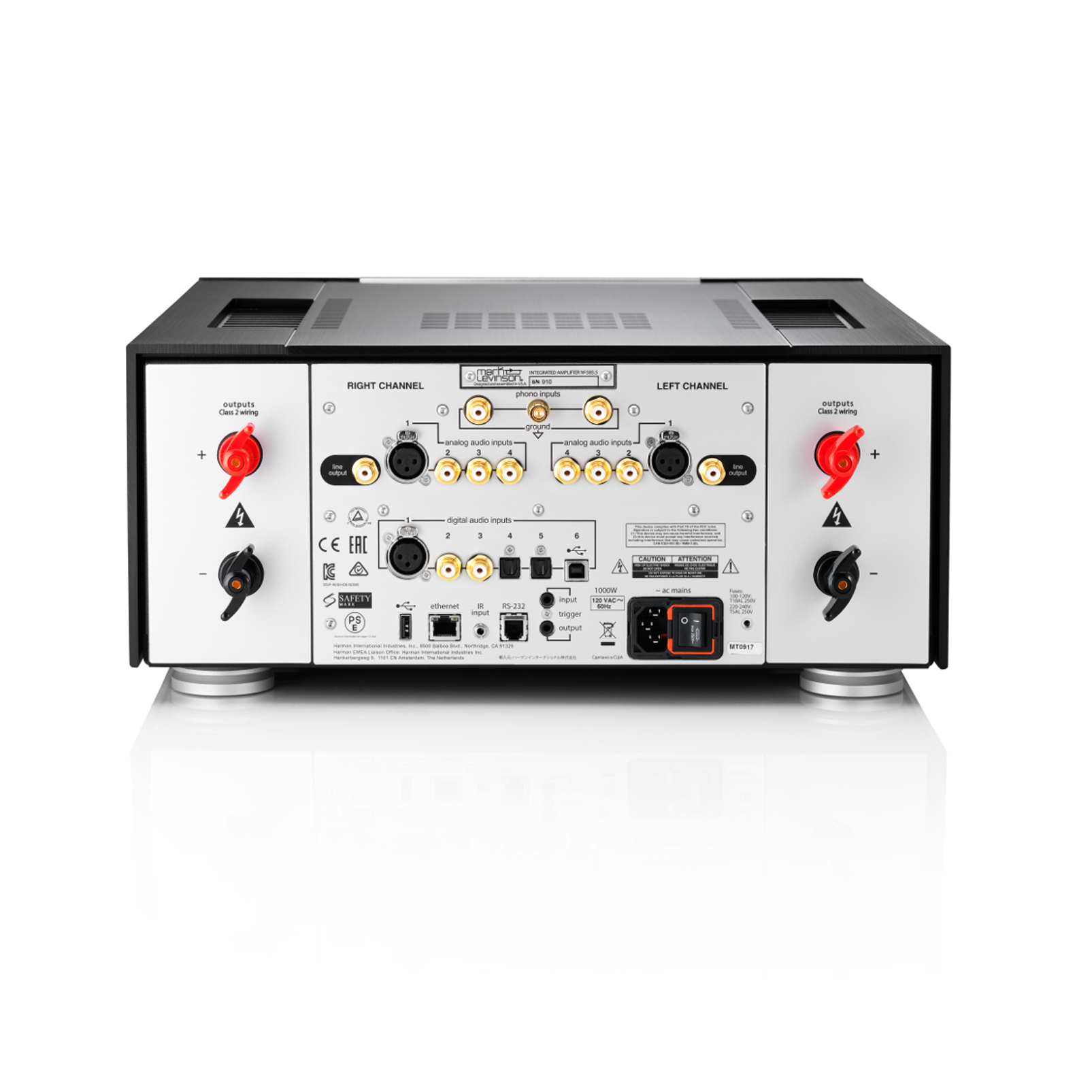

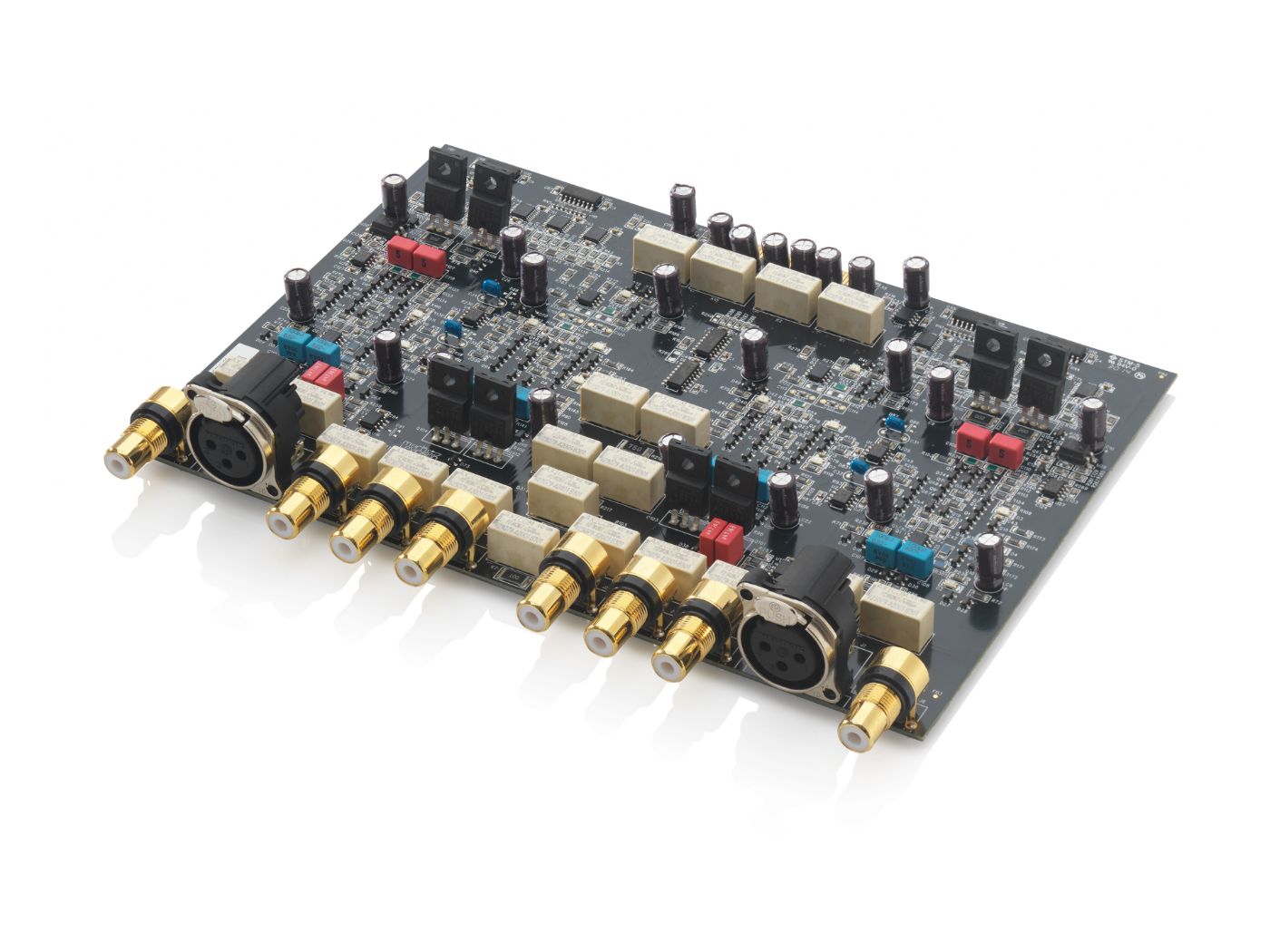

The foundation of the No 585.5 is its fully discrete, mirror-imaged, dual-monaural analog circuitry featuring individual signal switching relays for each of its five stereo inputs: one XLR and three RCA plus a Stereo Pure Phono stage. Volume controls use discrete R2R ladders and low-noise analog switches for the widest possible bandwidth and maximum signal integrity. The fully-differential Class AB power stage includes an oversized 900VA toroidal transformer with individual secondary windings for the left and right channels.

Amplification

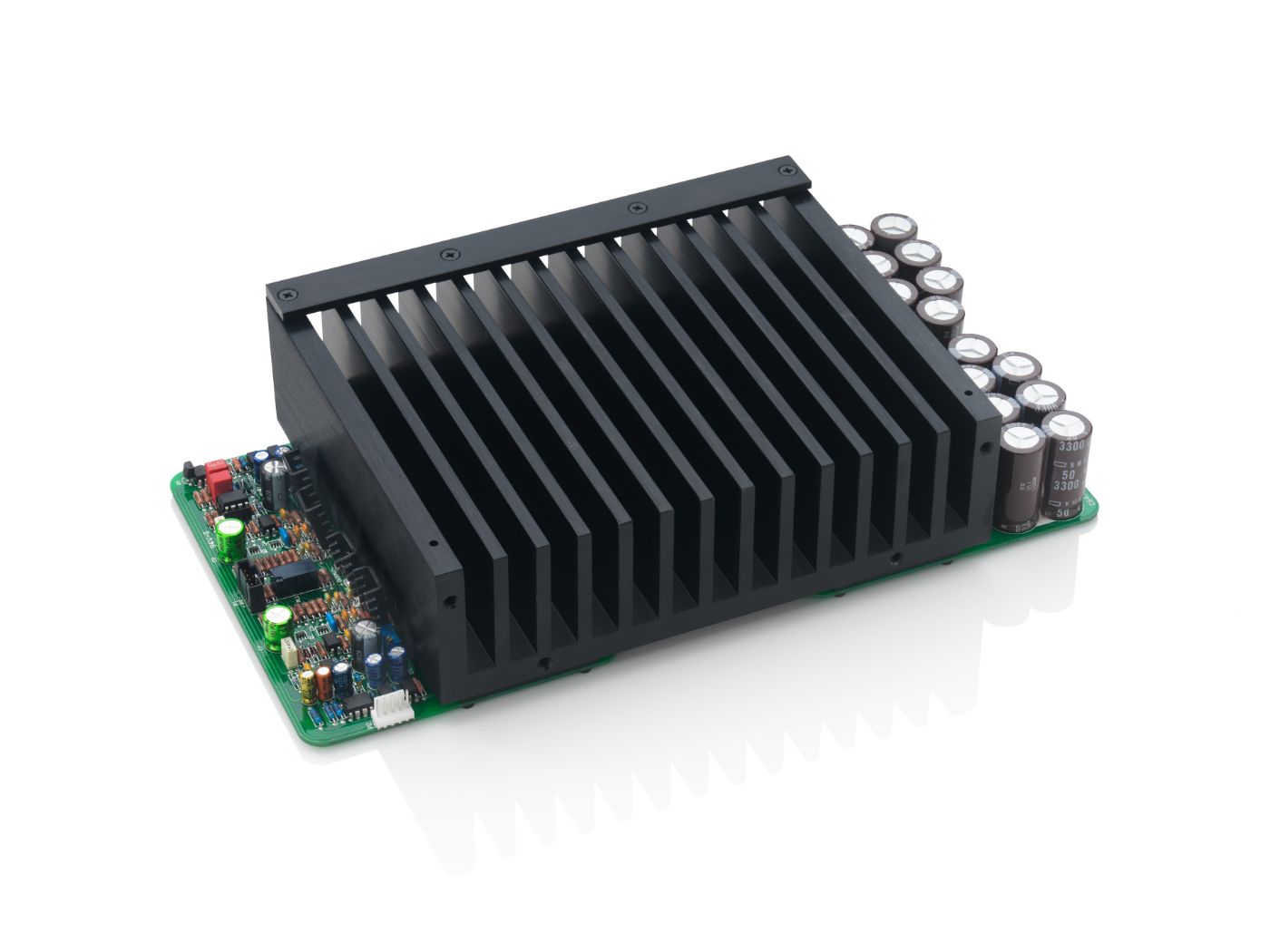

Each elegantly simple amplifier channel utilizes twelve output transistors and multiple smaller local capacitors that allow them to be placed physically closer to the amplifiers for greater transient response when power is needed immediately. This robust architecture results in a conservative power rating of 200W per channel. System integration and expansion are possible using the stereo RCA pre-outs which can operate full-range or with an included switchable, second-order, 80Hz crossover filter allowing for seamless integration into 2.1-channel systems with powered subwoofers.

Pure Phono: Class A for a Classic Medium The Pure Phono stage is a discrete design with no op-amps and operates exclusively in class A throughout, employing tantalum nitride thin-film resistors and polypropylene capacitors with exceptionally low tolerances.

A fixed-gain moving magnet (MM) section with five capacitive cartridge-loading settings, and a moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings ensures optimization for any cartridge. And an ultrasonic filter intelligently compensates for rumble and warping. The Pure Phono stage also contains physically separated channels and balanced inputs for sonic purity.

Audio Chassis

Building upon this superb analog platform, the Nº 585.5 adds equally outstanding digital audio capability. An ESS Sabre 32-bit O/A convertor with proprietary jitter elimination circuitry and fully balanced, discrete IN circuitry forms the heart of the digital audio processing stage. Six digital audio inputs are provided including one AES/EBU, two coaxial and two optical plus a USB audio processor capable of asynchronous data transfer of high resolution DSD and PCM files at up to 192kHz/32 bits resolution. For low-resolution audio formats, proprietary Clari-Fi'" signal processing reconstructs information and bandwidth lost in compressed file formats restoring them to higher fidelity.

Control

System integration and communication ports include Ethernet, USB, RS-232, IR input, and 12V trigger input and output. An iconic Mark Levinson custom cast aluminum system IR remote is included with the Nº 585.5.

Construction

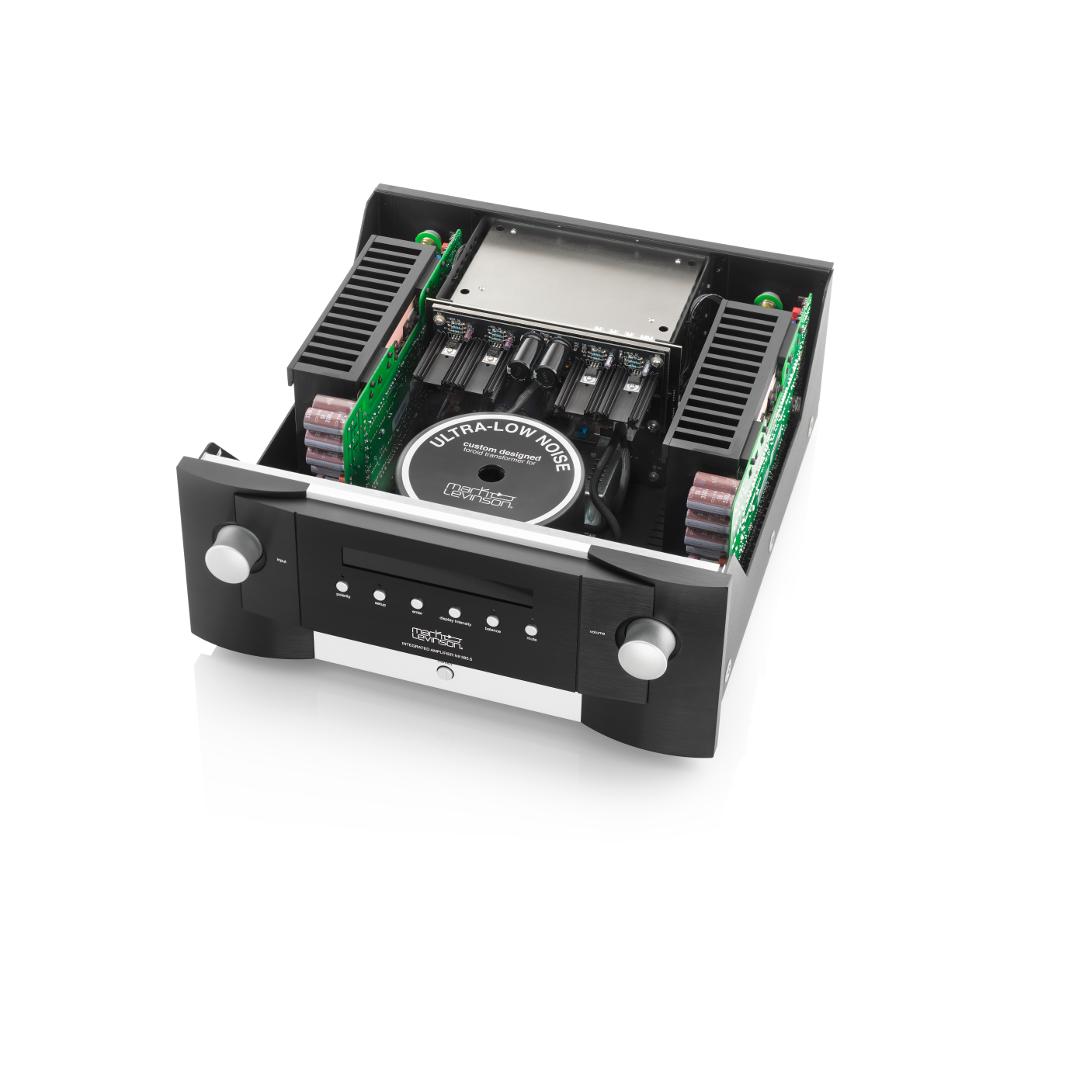

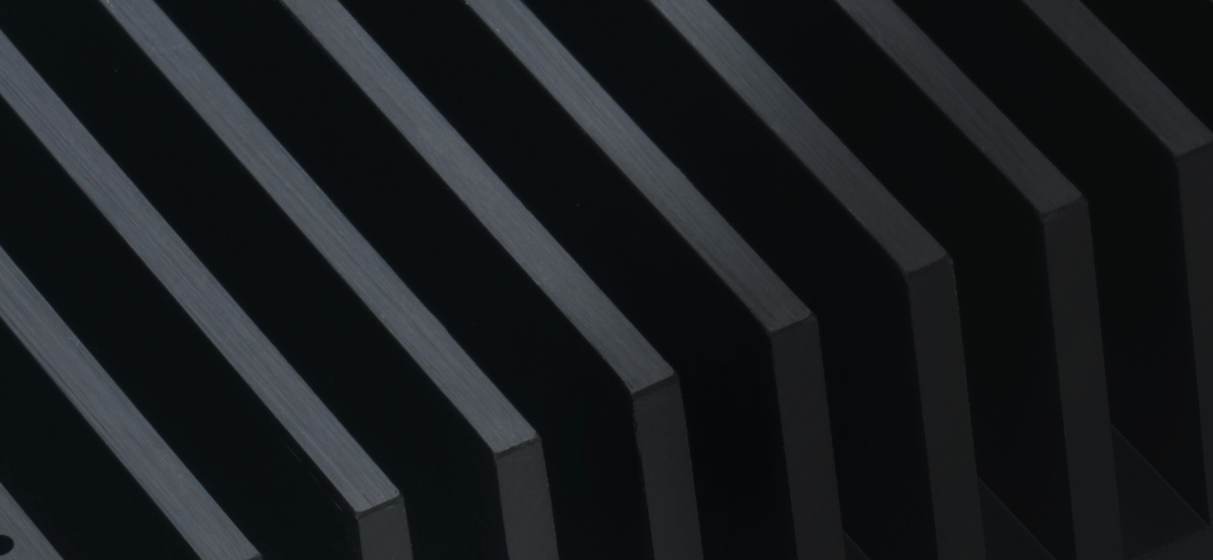

The chassis of the Nº 585.5 utilizes card-cage architecture to isolate critical low-level analog and digital circuitry from the power supplies and amplifier modules. The steel and aluminum construction features internal amplifier heatsinks and Mark Levinson's iconic black and silver anodized aluminum front panel with its intuitive twin-knob control system and unique red display. A newly designed 3-piece anodized brushed aluminum top cover exudes durability, elegance and quality.

  • Highlights & Specs
  • Documents & Downloads

Nº585.5 Highlights

  • Pure Path Phono pre amp – a discrete design with no op-amps and operates exclusively in class A throughout
  • High resolution sound from class A/B amps
  • Ethernet, RS-232, IR and 12V trigger ports
  • Fixed-gain moving magnet (MM) section with five capacitive cartridge-loading settings
  • 4 analog inputs
  • Discrete analog circuitry throughout
  • Mark Levinson extruded aluminum remote
  • Moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings
  • 6 digital inputs: USB, AES/EBU, S/PDIF
  • 200W at 8 ohms; 300-350W at 4 Ohms
  • Ultrasonic filter intelligently compensates for rumble and warping
  • 32-bit/192khz performance, including DSD over PCM via USB 80 Hz high-pass option allows proper operation of a 2.1-channel system
  • Designed and handcrafted in the USA

General Specifications

RIAA frequency response 20Hz to 20kHz, ±0.3dB
Infrasonic filter defeatable, 15Hz, 2nd order (12dB/octave)
Input resistance (Moving Magnet Mode) 47kΩ
Input capacitance (Moving Magnet Mode) selectable; 50, 100, 150, 200, or 680pF
Gain (Moving Magnet Mode) 40dB @ 1kHz
THD+N, 20Hz to 20kHz, 2VRMS output (Moving Magnet Mode) <0.03%
Input resistance (Moving Coil Mode) selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000, or 47k
Input capacitance (Moving Coil Mode) 50pF
THD+N, 20Hz to 20kHz, 2VRMS output (Moving Coil Mode) <0.02%, 50 or 60dB settings, <0.04%, 70db setting
Gain (Moving Coil Mode) selectable; 50, 60, or 70dB @ 1kHz
Output Power 200W RMS per channel @ 8 Ω, 20Hz – 20kHz
Damping Factor >400 @ 20Hz, referred to 8 Ω
Frequency Response 20Hz – 20kHz, ±0.13dB; 2Hz – 250kHz, +0.2dB/–3dB
Signal-to-Noise Ratio >98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full output – maximum volume setting
Voltage Gain 40.7dB (maximum volume setting)
Total Harmonic Distortion <0.01% @ 1kHz, 200W, 8 Ω; <0.1% @ 20kHz, 200W, 8 Ω
Preamplifier Section (Analog) Input Impedance >45k Ω (RCA & XLR)
Preamplifier Section (Analog) Input Overload >5.5V RMS (RCA & XLR)
Preamplifier Section (Digital) DAC Board - same as No 585
DAC output voltage @ full scale (0dBFS) 3.7VRMS
DAC frequency response 20Hz to 20kHz, +0 / ¬–0.2dB
DAC THD, full scale (0dBFS) <0.0001% @ 1kHz, <0.0003% @ 20kHz
DAC SNR (referred to 3.7VRMS / 0dBFS output) >120dB (A-weighted)
PCM sample rates/bit depth 32, 44.1, 48, 88.2, 96, 176.4, or 192kHz; up to 32 bits
DSD Native or DoP (DSD over PCM), single- and double-speed (2.8 and 5.6MHz)

Audio Specifications

RIAA frequency response 20Hz to 20kHz, ±0.3dB
Infrasonic filter defeatable, 15Hz, 2nd order (12dB/octave)
Input resistance (Moving Magnet Mode) 47kΩ
Input capacitance (Moving Magnet Mode) selectable; 50, 100, 150, 200, or 680pF
Gain (Moving Magnet Mode) 40dB @ 1kHz
THD+N, 20Hz to 20kHz, 2VRMS output (Moving Magnet Mode) <0.03%
Input resistance (Moving Coil Mode) selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000, or 47k
Input capacitance (Moving Coil Mode) 50pF
THD+N, 20Hz to 20kHz, 2VRMS output (Moving Coil Mode) <0.02%, 50 or 60dB settings, <0.04%, 70db setting
Gain (Moving Coil Mode) selectable; 50, 60, or 70dB @ 1kHz
Output Power 200W RMS per channel @ 8 Ω, 20Hz – 20kHz
Damping Factor >400 @ 20Hz, referred to 8 Ω
Frequency Response 20Hz – 20kHz, ±0.13dB; 2Hz – 250kHz, +0.2dB/–3dB
Signal-to-Noise Ratio >98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full output – maximum volume setting
Voltage Gain 40.7dB (maximum volume setting)
Total Harmonic Distortion <0.01% @ 1kHz, 200W, 8 Ω; <0.1% @ 20kHz, 200W, 8 Ω
Preamplifier Section (Analog) Input Impedance >45k Ω (RCA & XLR)
Preamplifier Section (Analog) Input Overload >5.5V RMS (RCA & XLR)
Preamplifier Section (Digital) DAC Board - same as No 585
DAC output voltage @ full scale (0dBFS) 3.7VRMS
DAC frequency response 20Hz to 20kHz, +0 / ¬–0.2dB
DAC THD, full scale (0dBFS) <0.0001% @ 1kHz, <0.0003% @ 20kHz
DAC SNR (referred to 3.7VRMS / 0dBFS output) >120dB (A-weighted)
PCM sample rates/bit depth 32, 44.1, 48, 88.2, 96, 176.4, or 192kHz; up to 32 bits
DSD Native or DoP (DSD over PCM), single- and double-speed (2.8 and 5.6MHz)
