Mark Levinson + Lexus
Audio Enlightenment

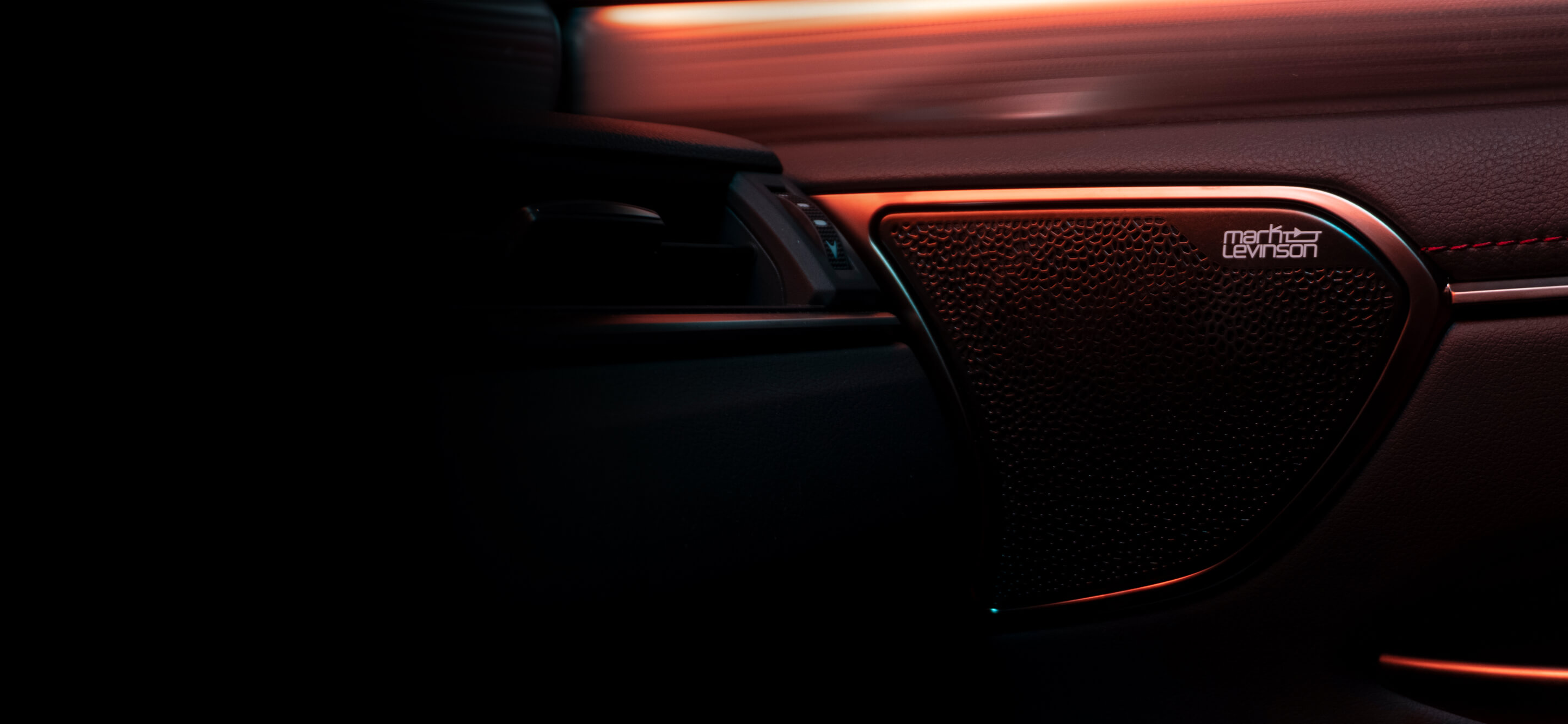

MARK LEVINSON | LEXUS

A Shared Passion
For Perfection

Mark Levinson was born from the soul of a passionate musician with an uncompromising devotion to audio perfection. Together with Lexus, we bring an exhilarating music experience to every passenger, in every vehicle, during each and every ride. Discover the most subtle notes and the deepest tones of your favorite music. Discover Mark Levinson in Lexus.

MARK LEVINSON + LEXUS
  • Lexus Models
  • Racing
  • Reviews
Lexus <em>ES</em>
ES
1800 watts
17 speakers

Highlights

  • 1800 watts amplified power
  • 17 speakers
  • 7.1 channel architecture
  • 12 channel DPS amplifier

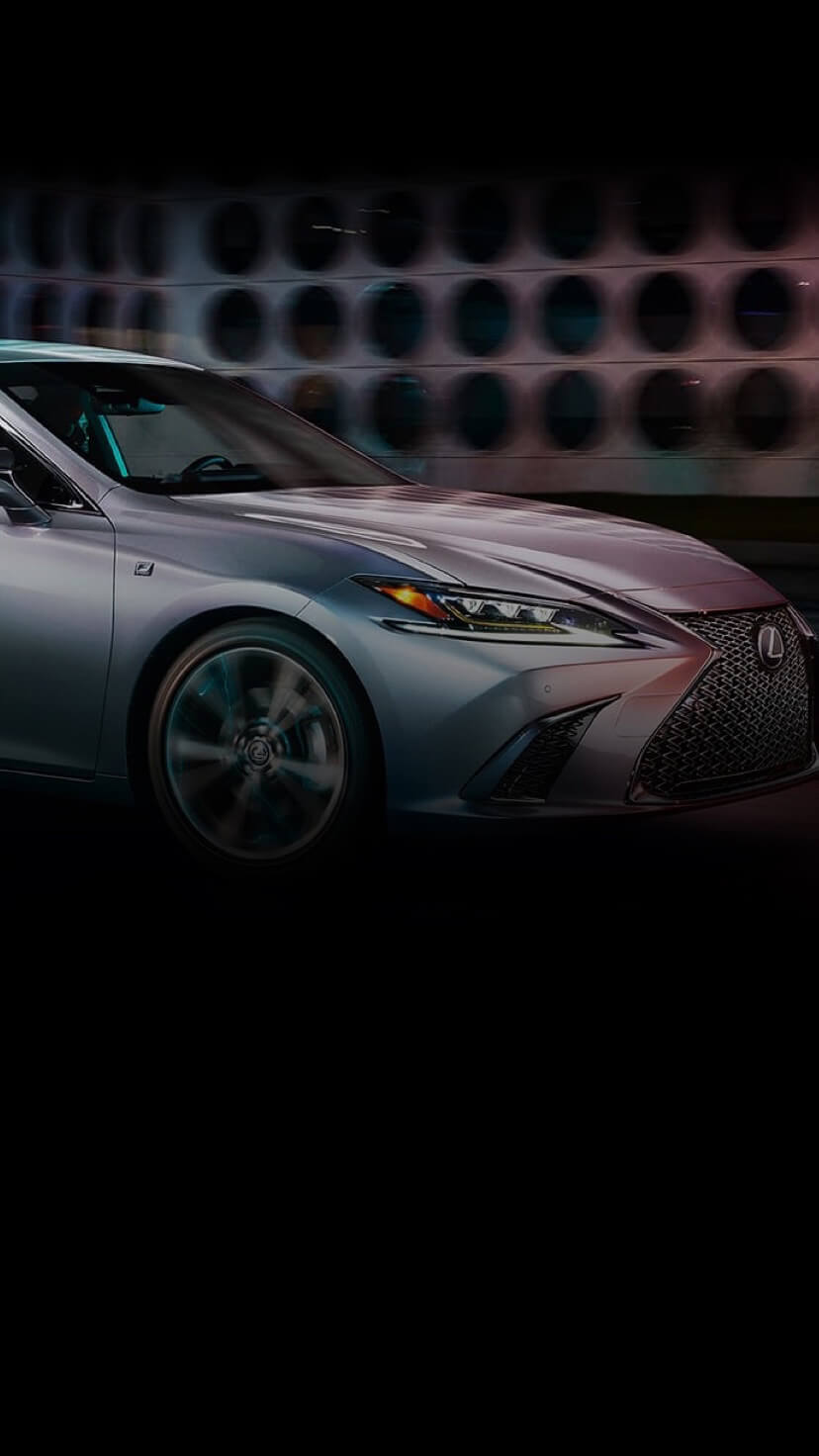

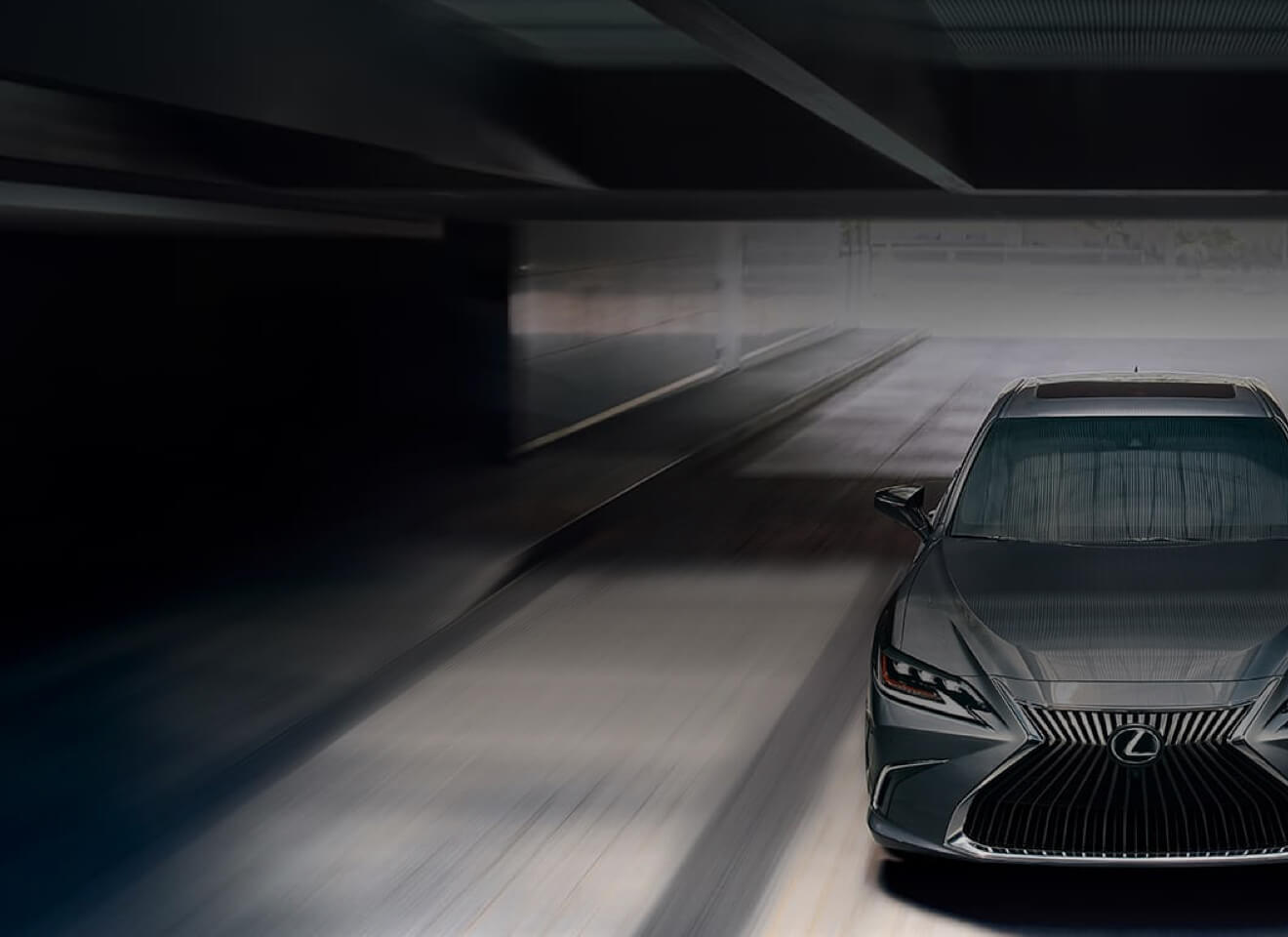

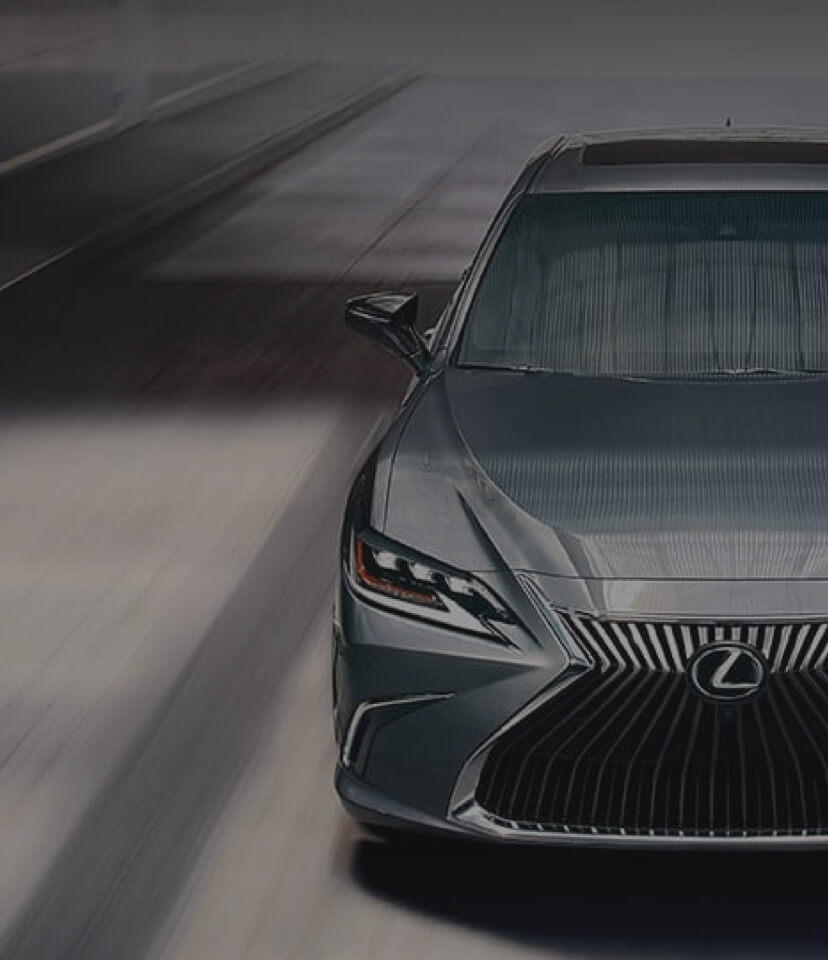

Lexus ES

An Adventure for the Senses

Take your senses on an unforgettable journey with the all-new Lexus ES. Boldly crafted with first-of-its-kind technology, the Mark Levinson system in the ES features a surround sound experience that transforms your behind-the-wheel experience. There is a distinct difference between listening to music and being immersed in it, and no one knows that better than Mark Levinson engineers. That’s why they created PurePlay—the world’s first sound system that fully envelops the listener in their music through advanced sound-stage technology. This is surround sound like you’ve never experienced.

Learn more about the Lexus ES on Lexus.com

1 1 1 3 3 2 2 4 2 2 5

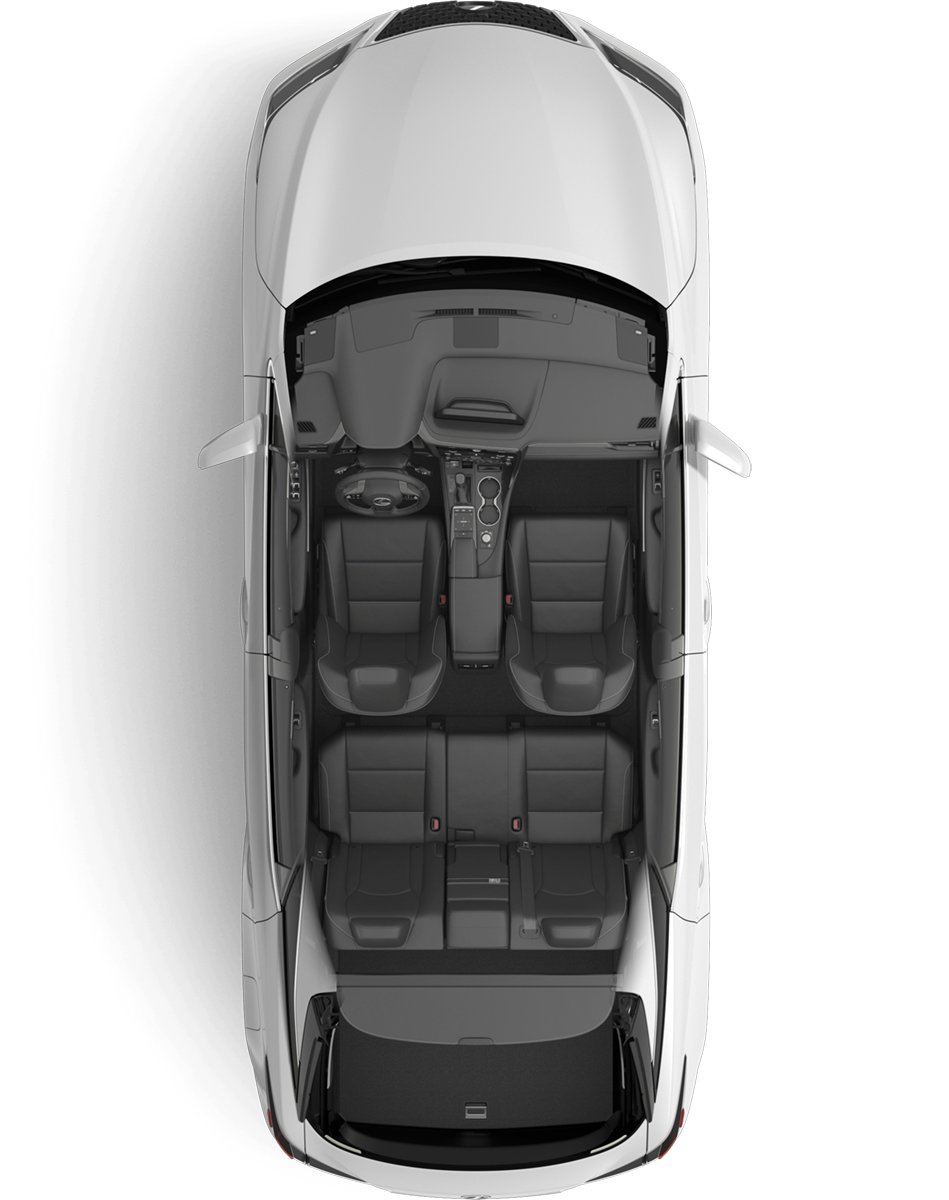

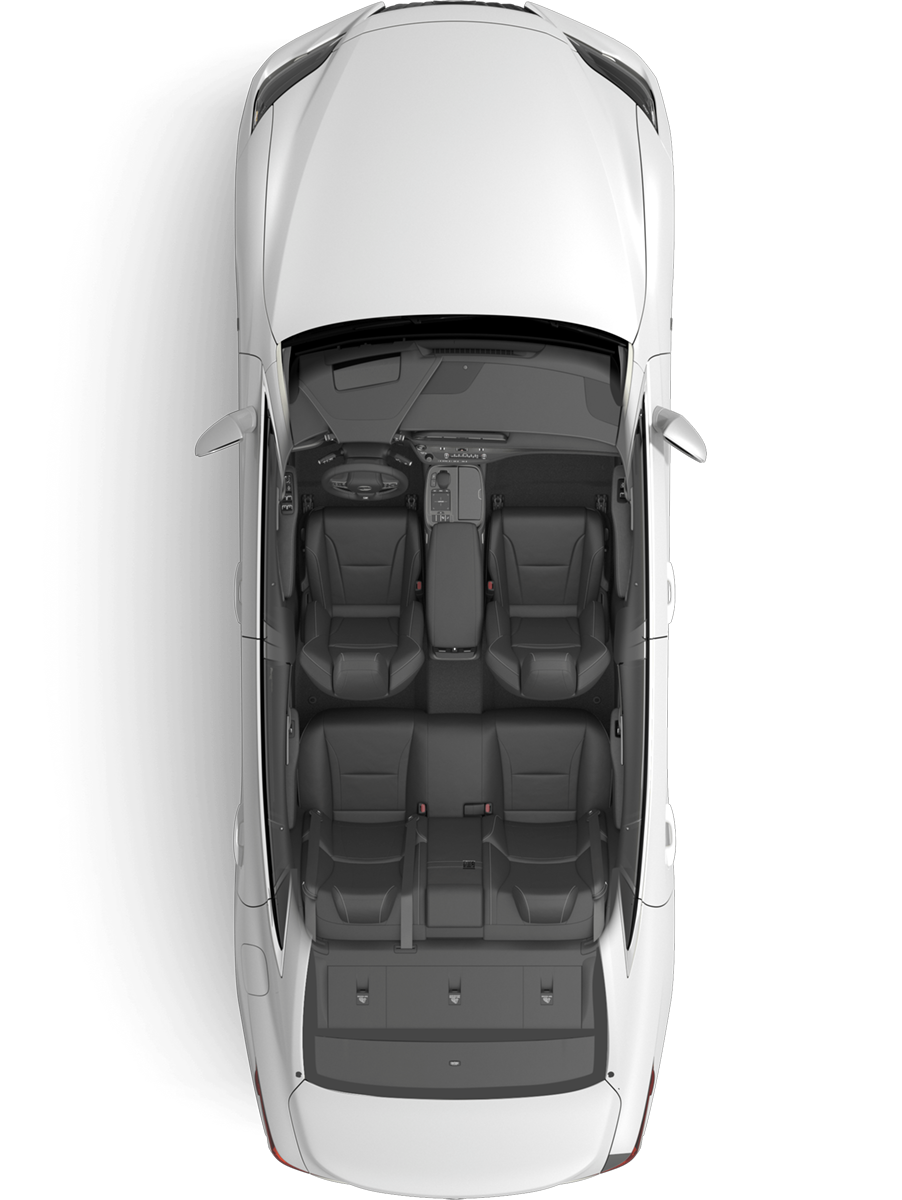

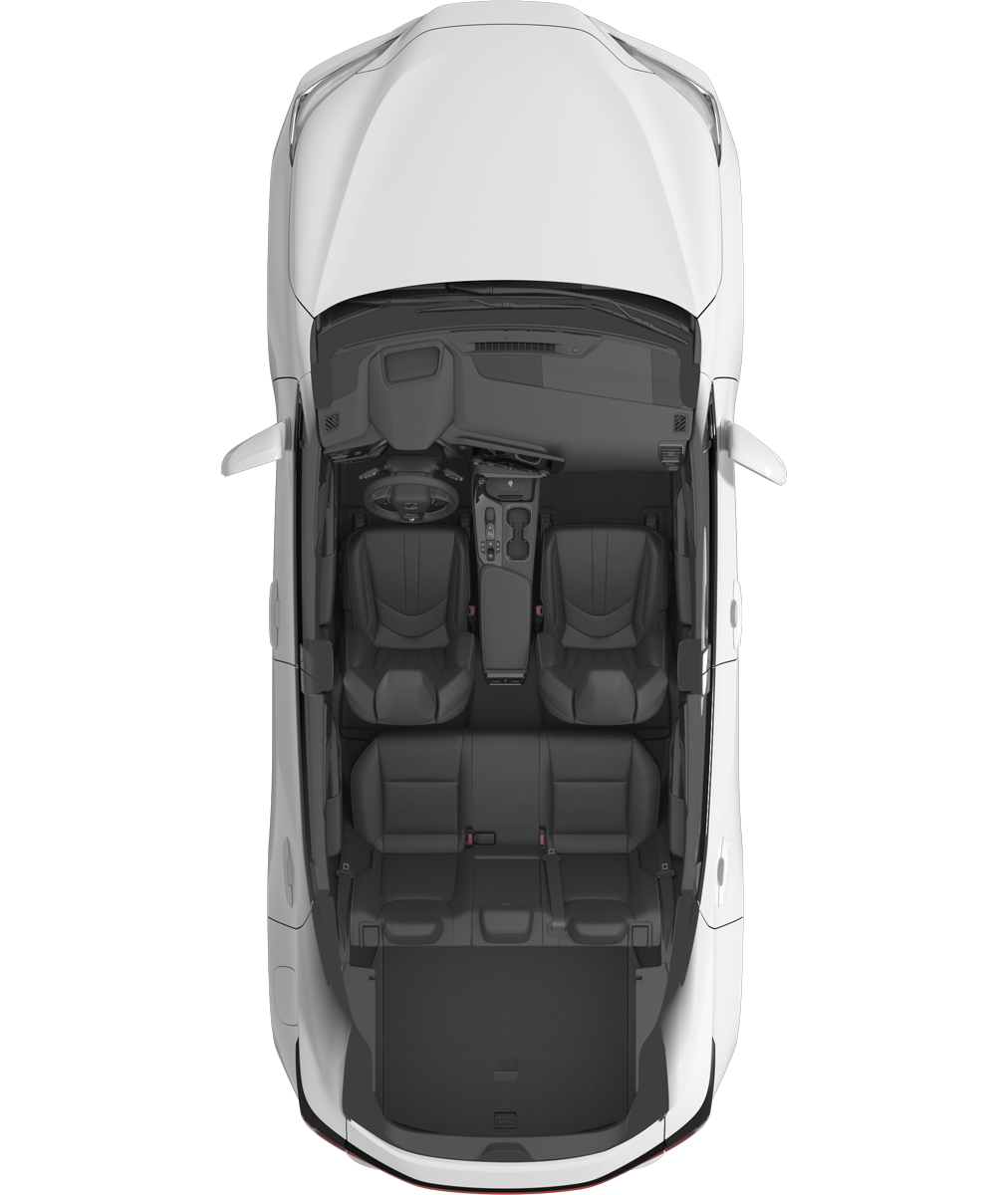

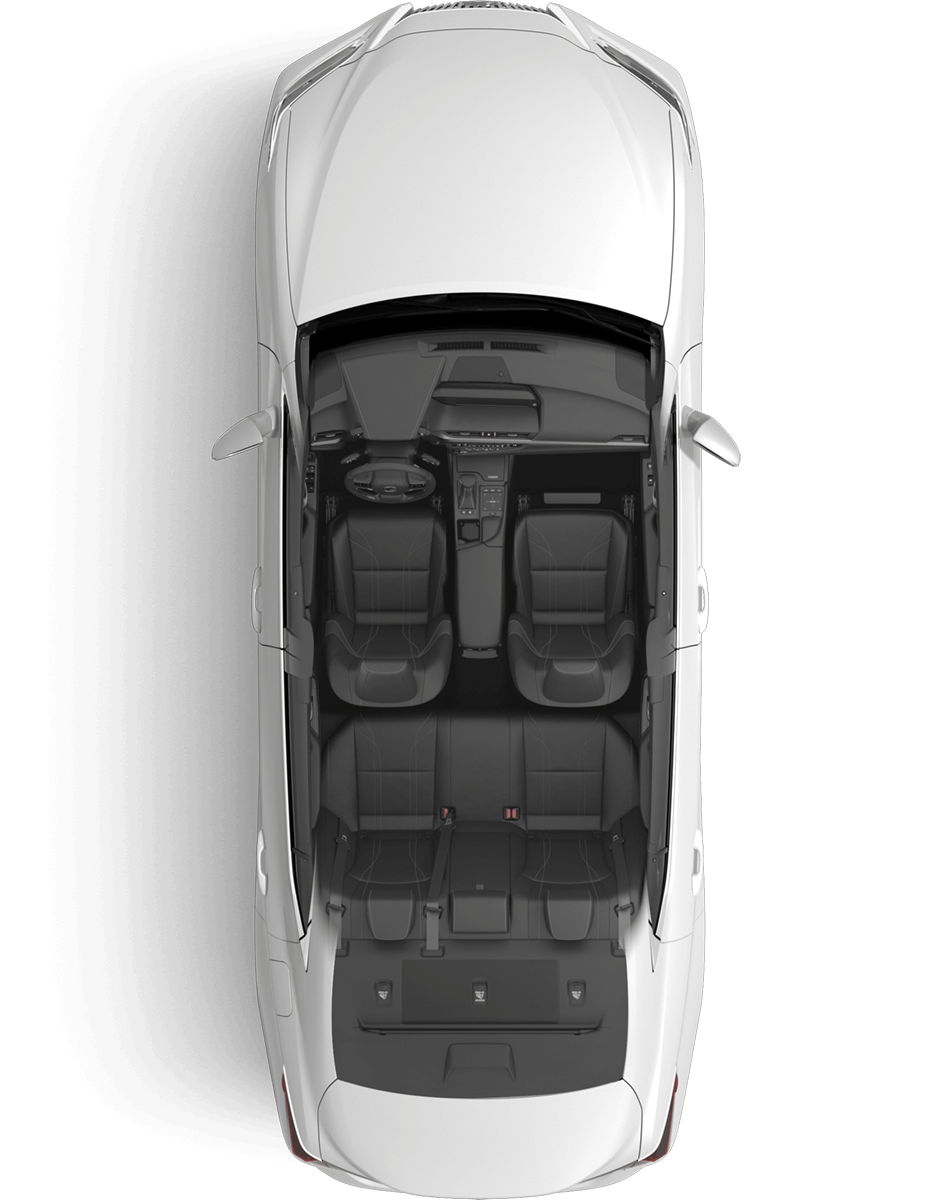

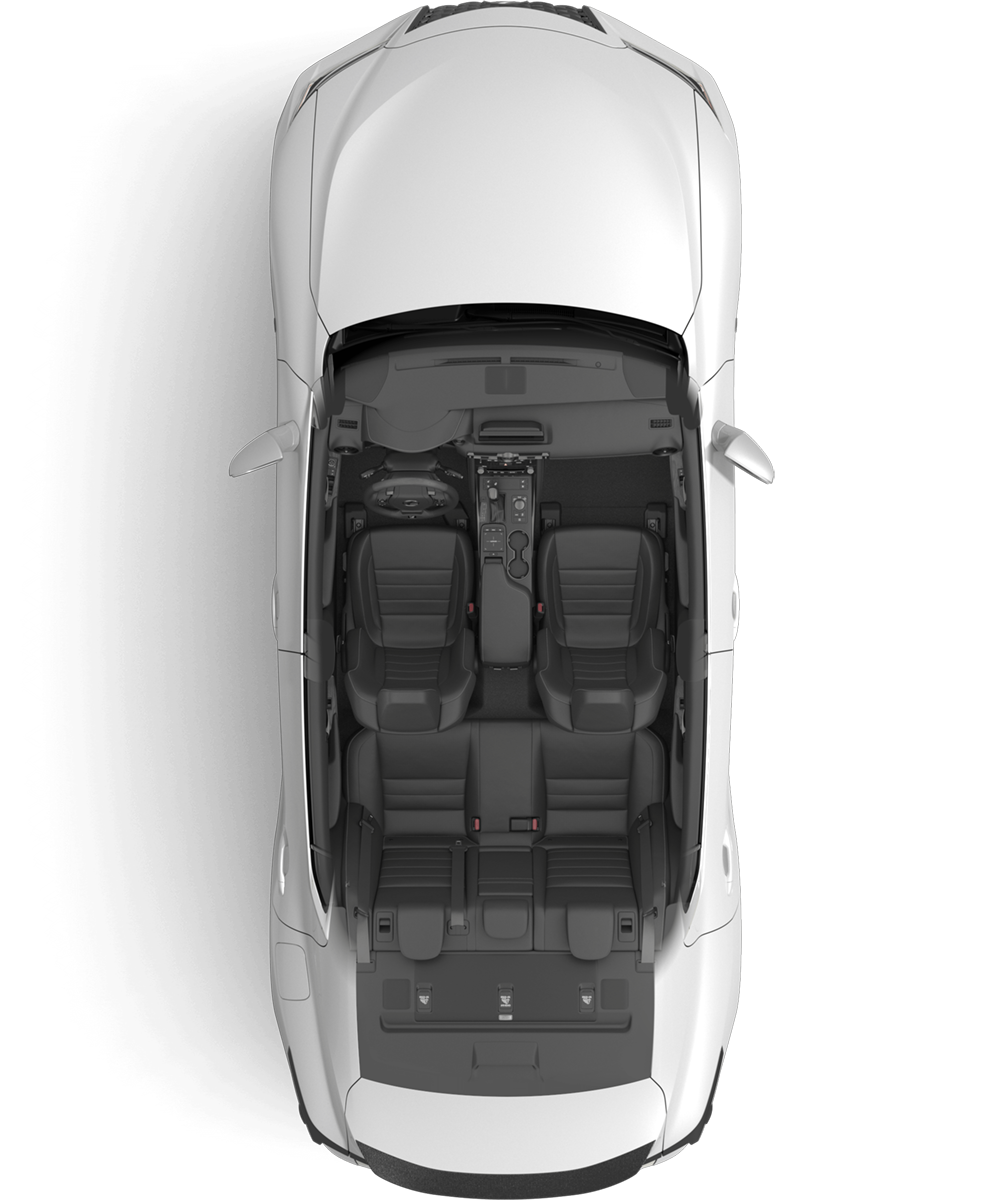

System Overview

1

Midrange Unity Extended Bandwidth Speakers

Center Front

90mm Unity Speakers combine efficient design with authentic sound, producing mid and high frequencies. These speakers are placed at shoulder height for optimal performance and minimal interference.

2

Unity Speakers

Front and rear doors

90mm Unity Speakers combine efficient design with authentic sound, producing mid and high frequencies. These speakers are placed at shoulder height for optimal performance and minimal interference.

3

Eliptical Woofers

Front and rear doors

8x9in high efficiency woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seating position in the vehicle

4

Subwoofer

Rear

265mm Subwoofer delivers deep and clear low-frequency sound that you can feel as well as hear

5

Amplifier

Drivers Seat

12-channel, 835-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

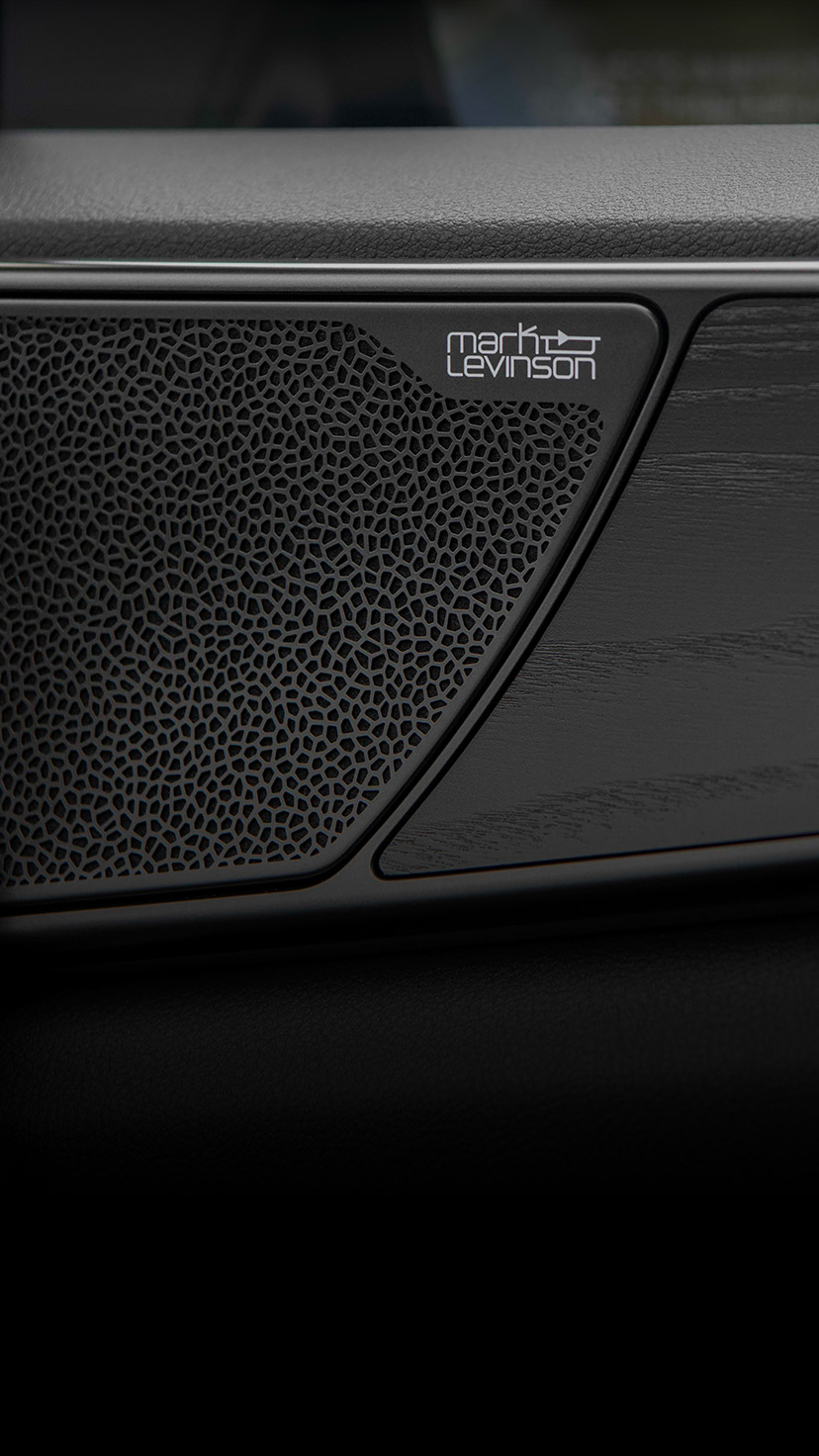

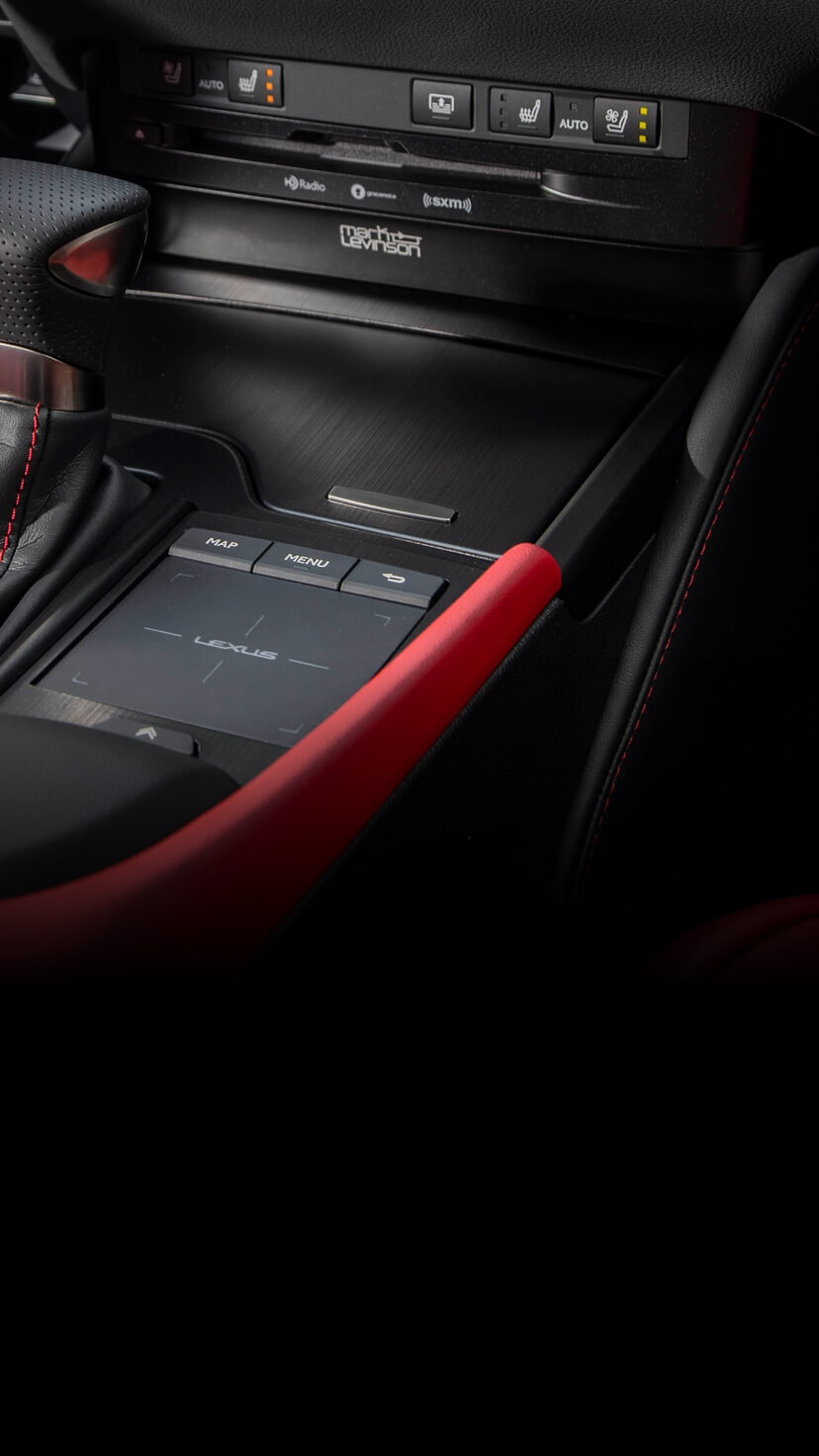

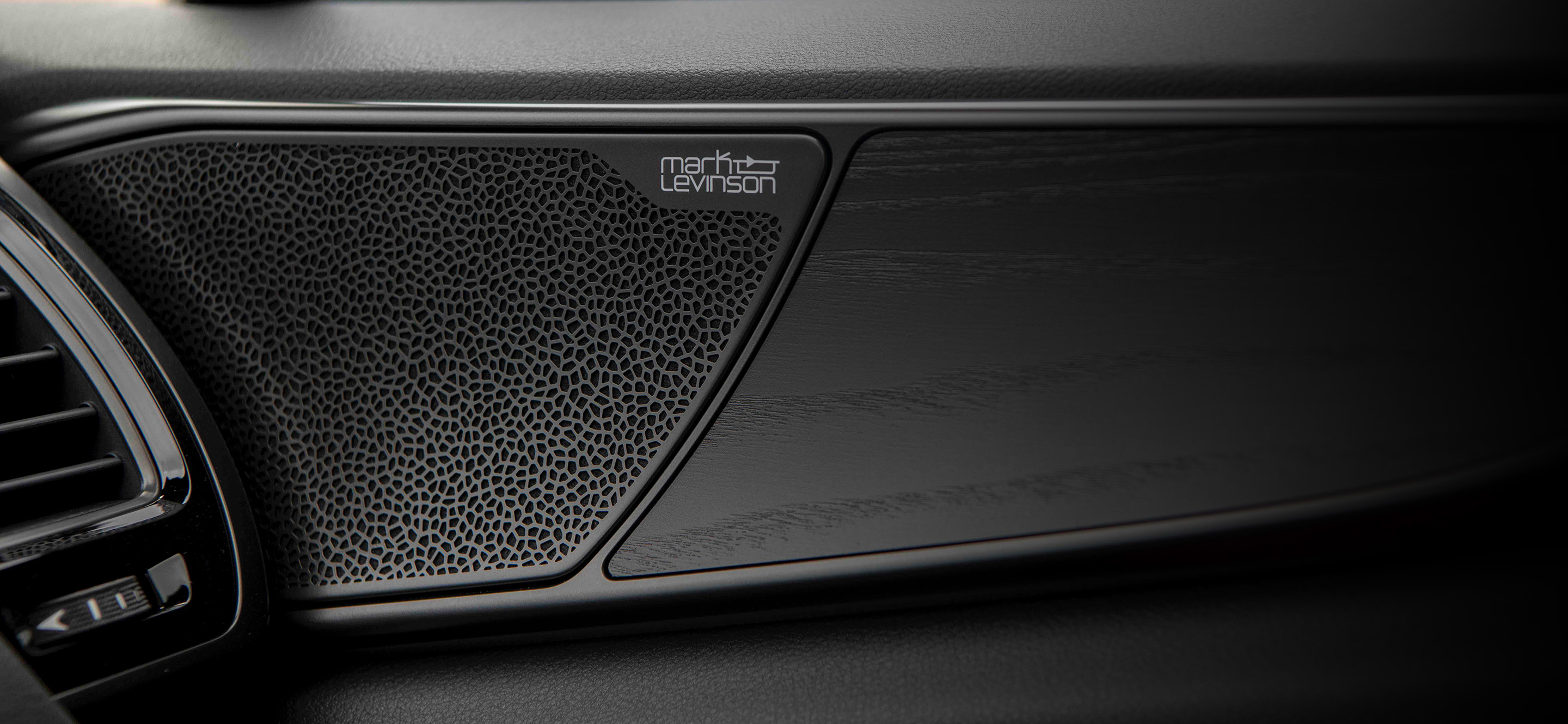

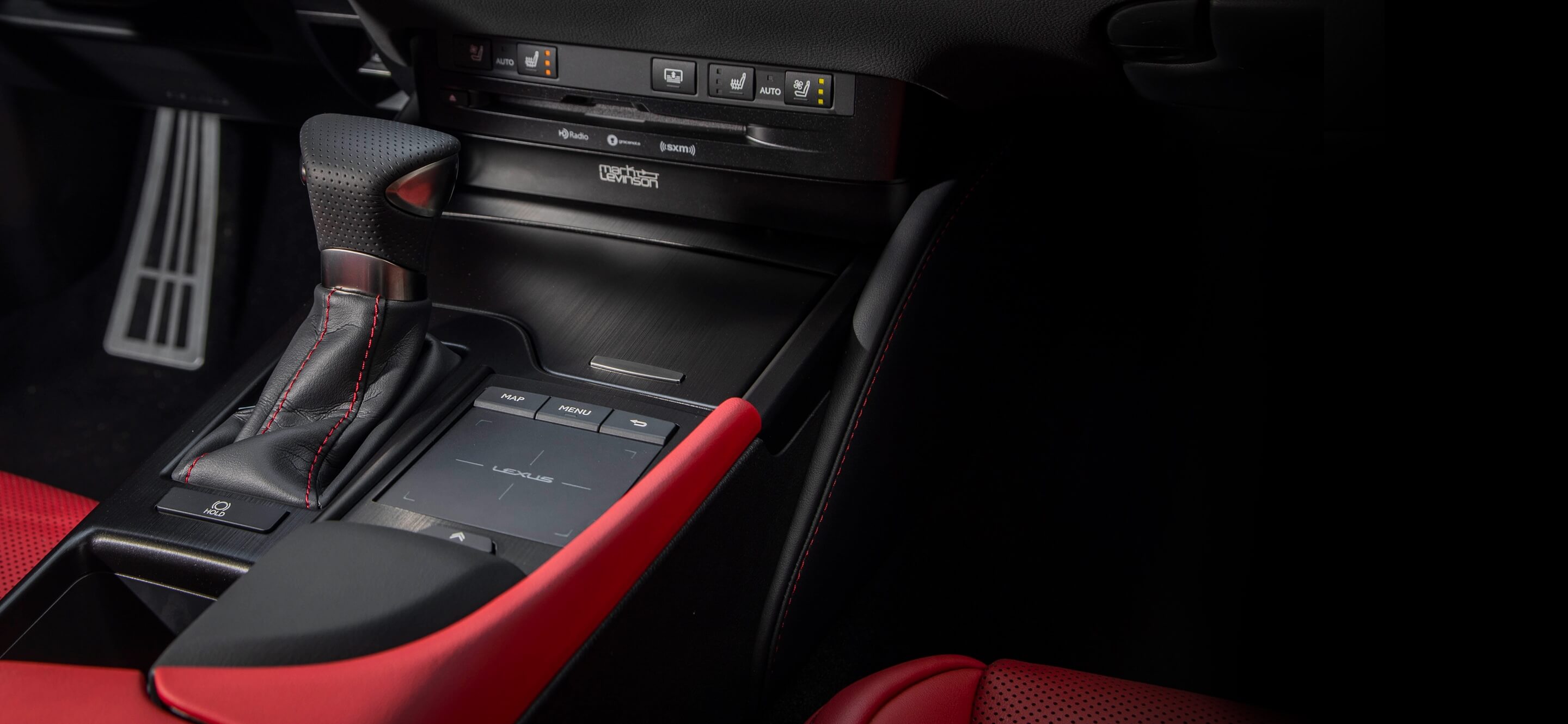

PurePlay

There is a distinct difference between listening to music and being immersed in it, and no one knows that better than Mark Levinson engineers. That’s why they created PurePlay—the world’s first sound system that fully envelops the listener in their music through advanced sound-stage technology. This is surround sound like you’ve never experienced.

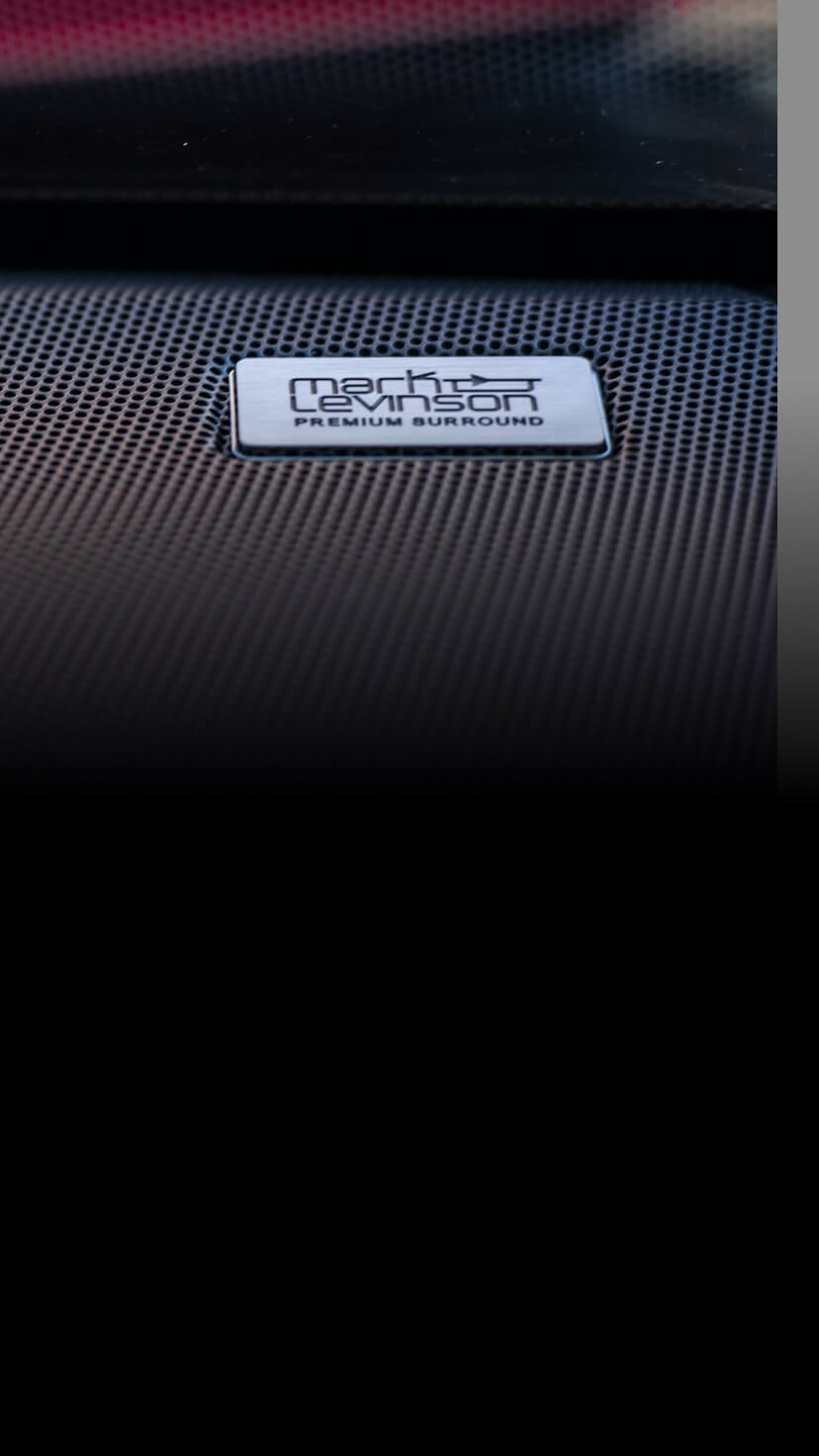

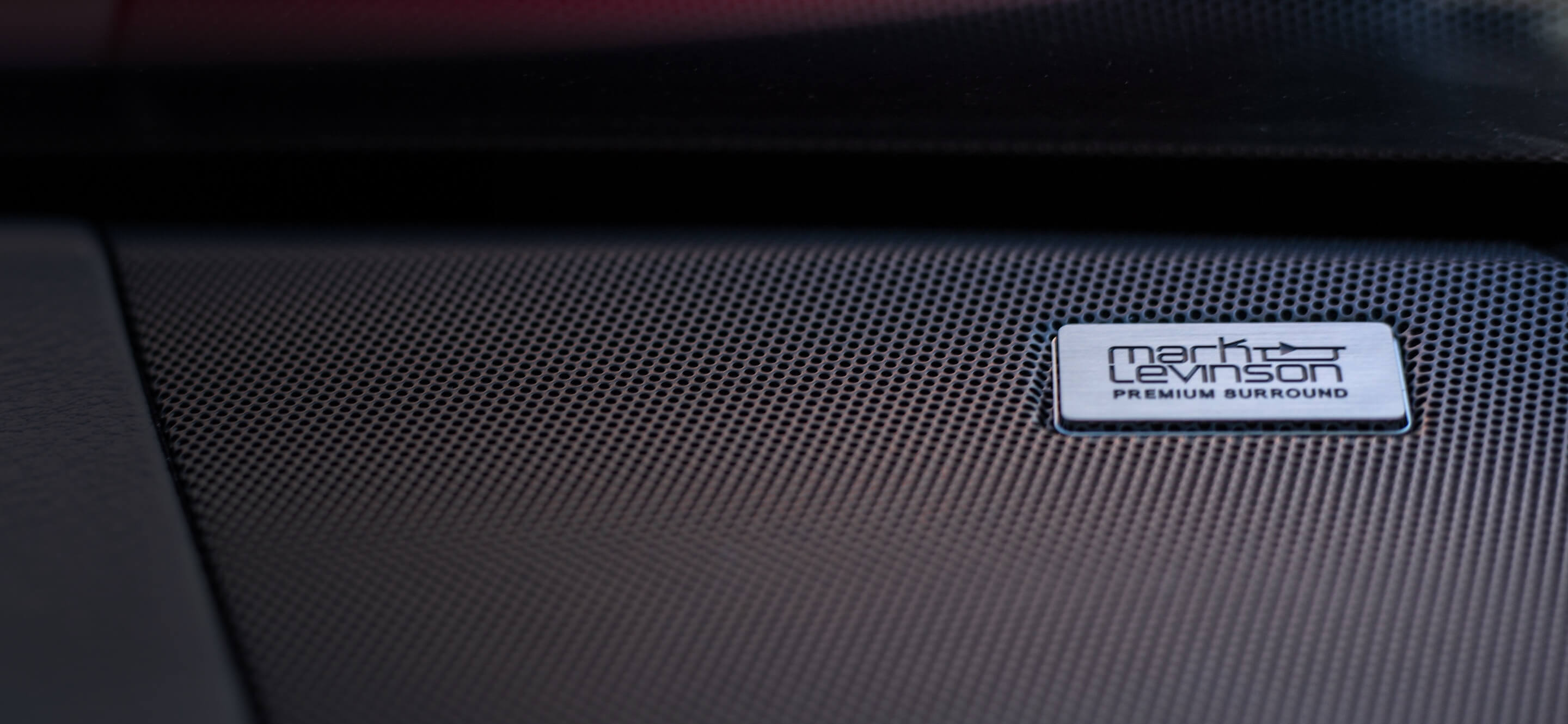

Unprecedented Design Architecture

By leveraging precision staging, world-class speaker design and placement, unparalleled tuning and state-of-the-art decompression technology, PurePlay delivers an acoustical performance that allows every facet of the music to come through in bright, colorful detail.

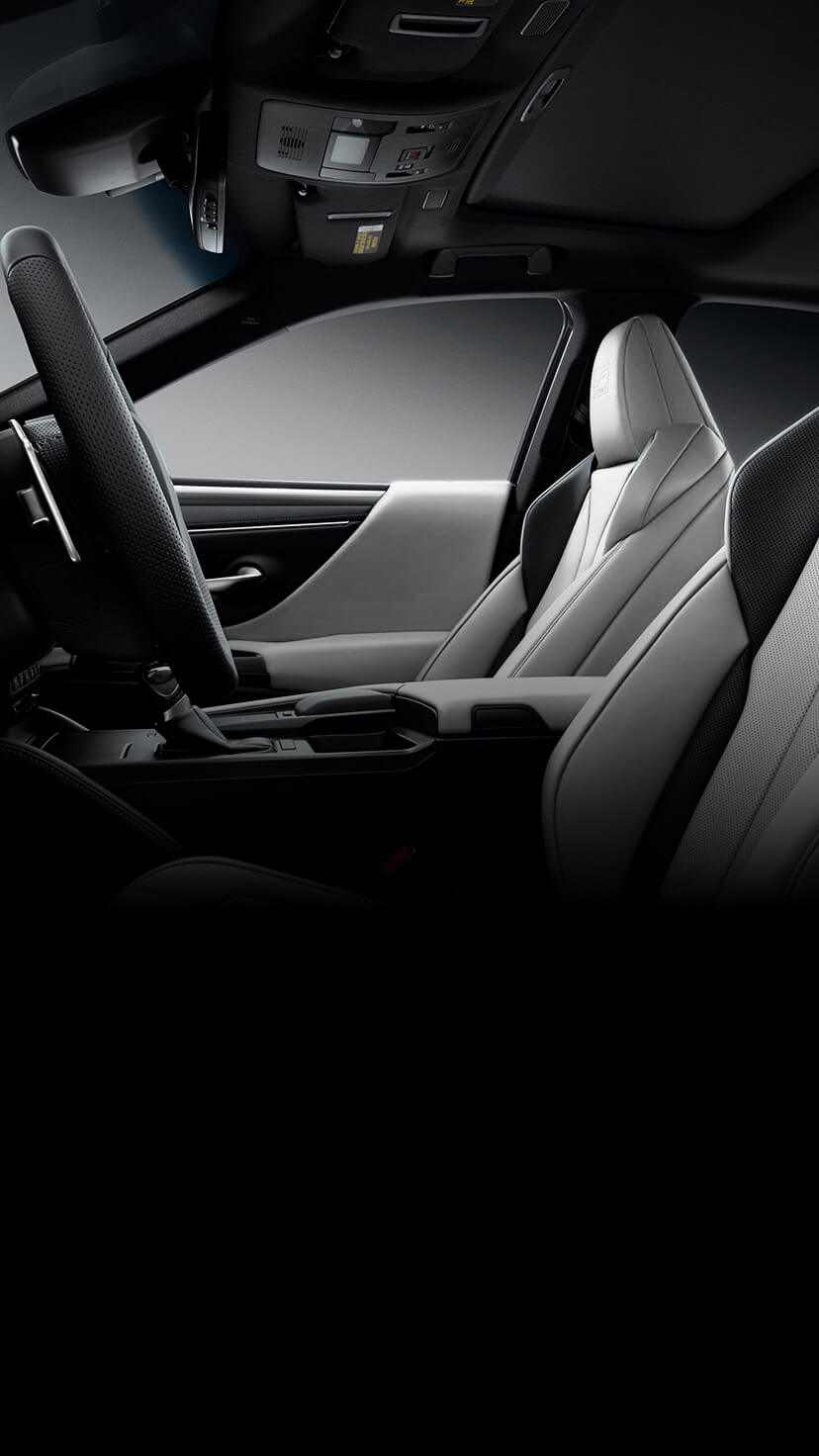

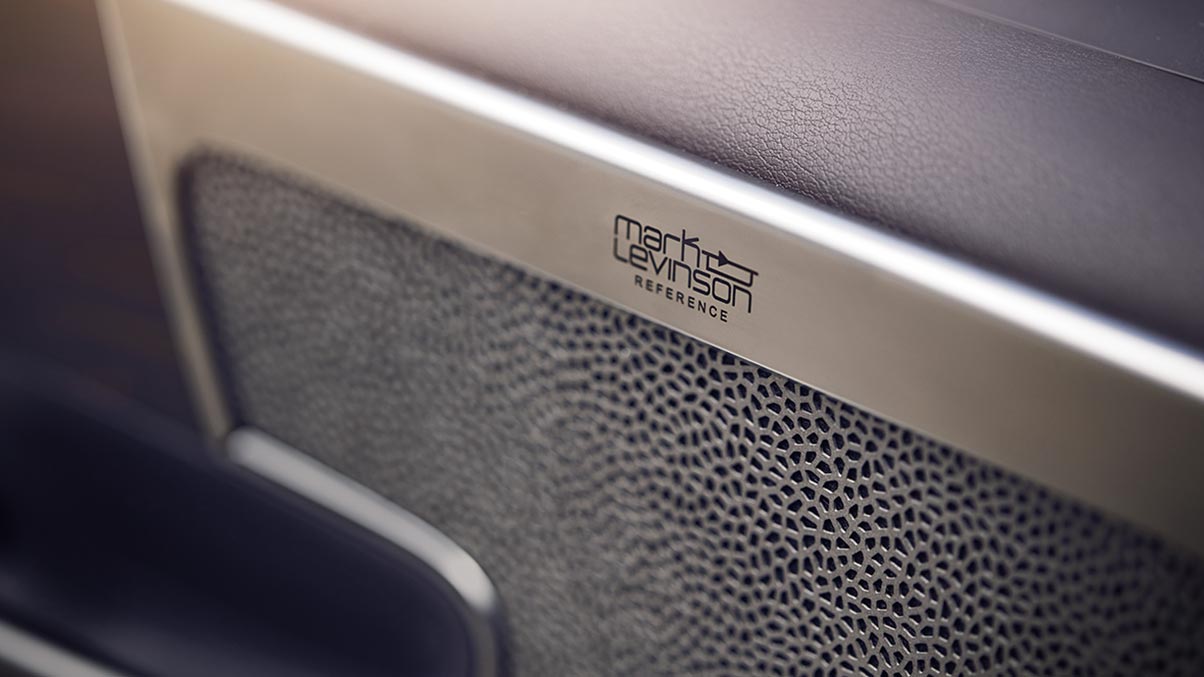

Precision Staging Technology

Each speaker is methodically placed throughout the cabin to enhance acoustics and deliver a consistent tonal color between all midrange speakers and tweeters. From the front seats to the rear, each and every passenger will be fully enveloped in the music.

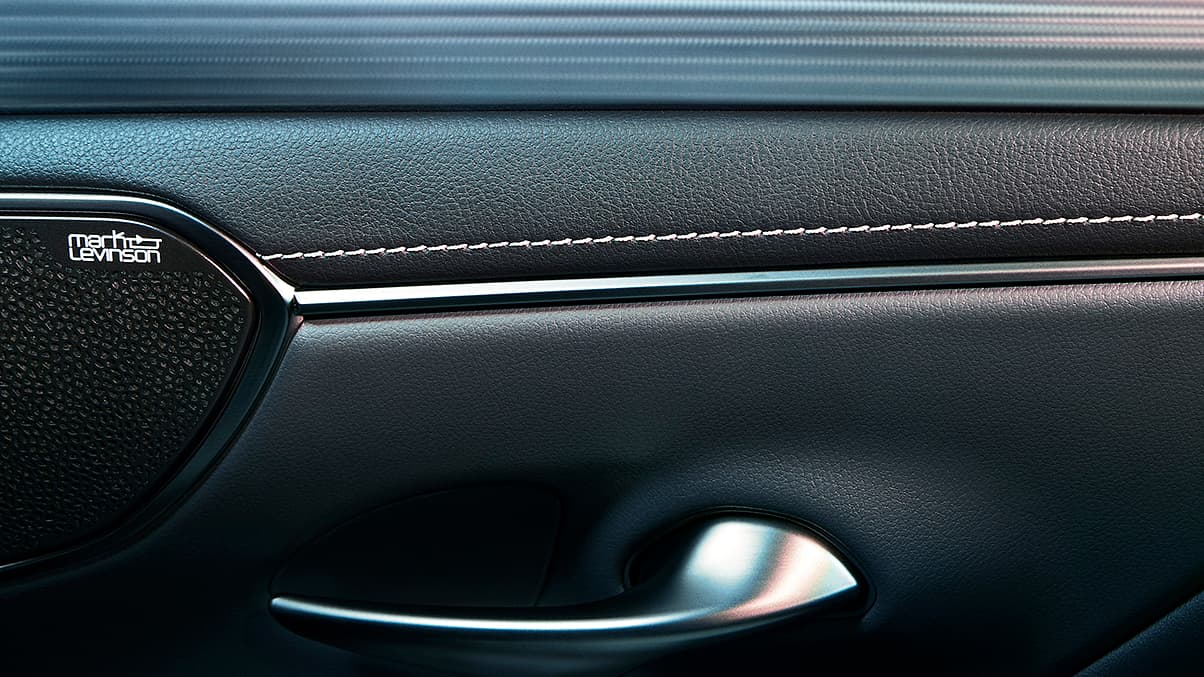

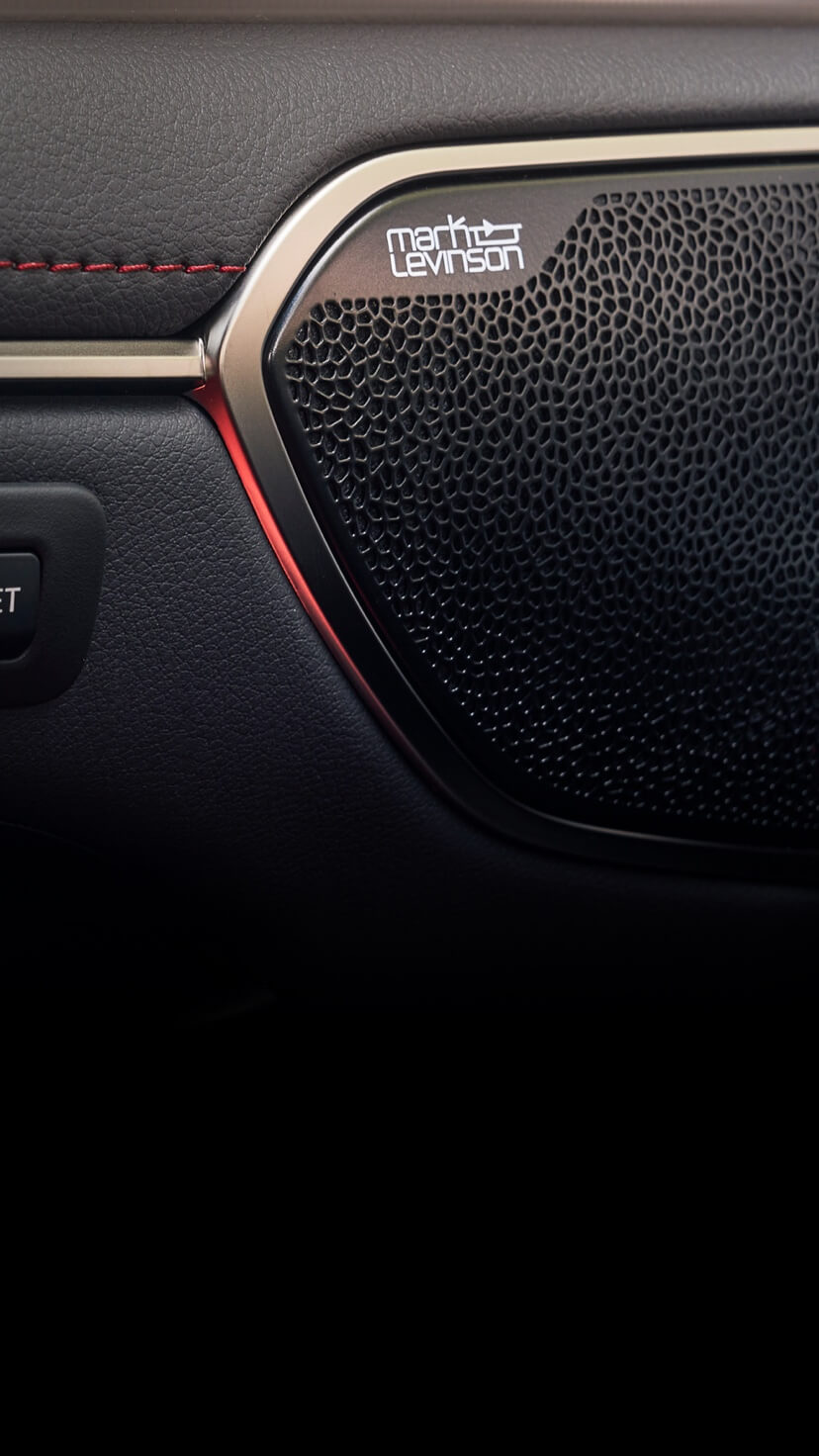

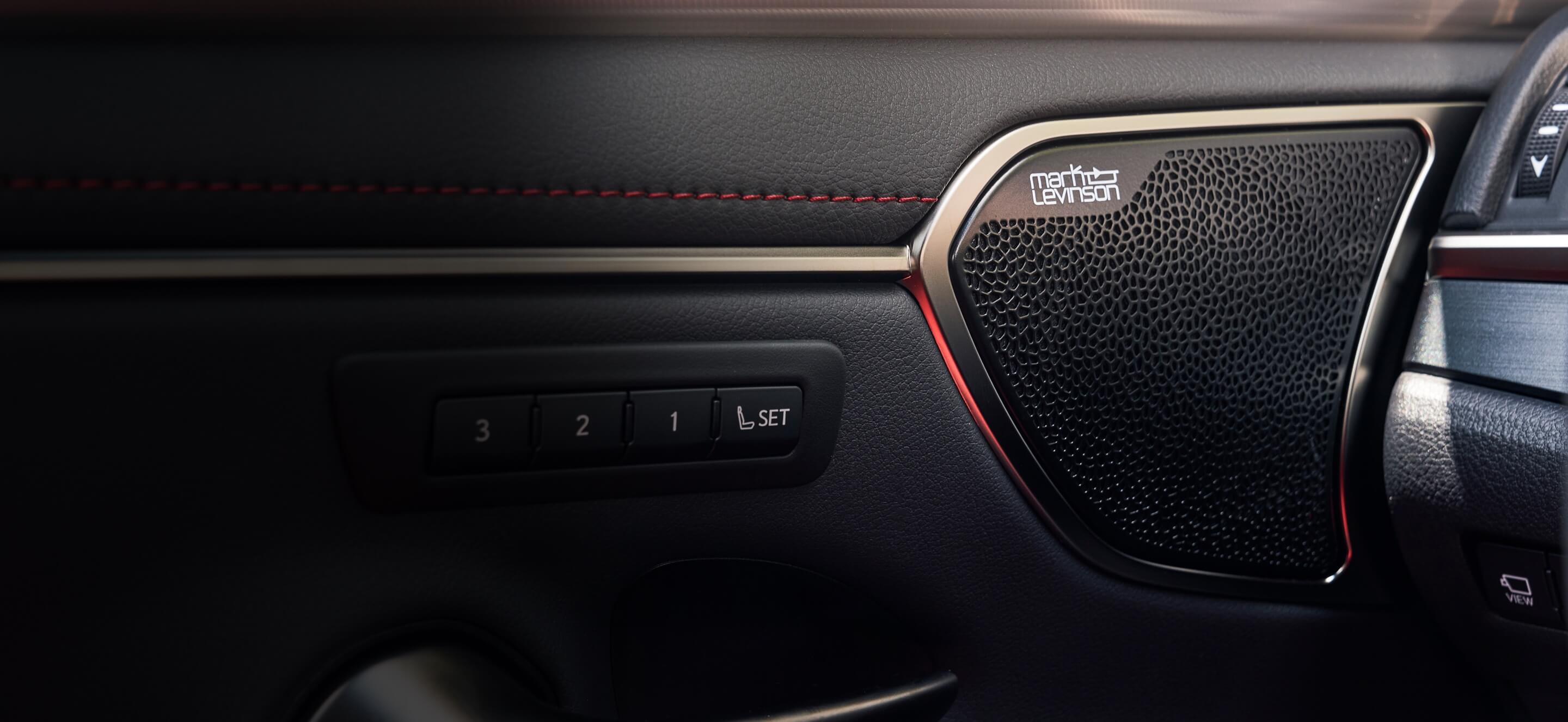

World-Class Speakers

The 17-speaker Mark Levinson PurePlay system is comprised of two front door-mounted elliptical woofers, a rear subwoofer and seven proprietary Unity speakers that each pair a high- and mid-range speaker together for a more accurate and natural sound stage. Get ready to hear your music like never before.

Lexus <em>GS</em>
GS
835 watts
17 speakers

Highlights

  • 835 watts amplified power
  • 17 speakers
  • 7.1 channel architecture
  • 12 channel DPS amplifier
Lexus GS

Artful Blend of Performance and Sound

Experience the blend of full-throttle performance and state-of-the-art sound in the Lexus GS, a multi-talented sedan that delivers on all fronts—making it the perfect pair for a premium Mark Levinson system.

Learn more about the Lexus GS on Lexus.com

1 2 2 3 3 4 4 5 5 6 7 7 8

System Overview

1

Midrange Unity Extended Bandwidth Speakers

Center Front

These three 90mm midrange with 16mm tweeter dual speakers carry an efficient design and create an authentic sound by combining both mid and high frequencies.

2

Midrange Unity Extended Bandwidth Speakers

Front and Rear Doors

These three 90mm midrange with 16mm tweeter dual speakers carry an efficient design and create an authentic sound by combining both mid and high frequencies.

3

Mid-Woofers

Front and Rear Doors

Two 7x10cm high efficiency mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

4

Tweeter

Front Doors

Two compact, 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

5

Midrange

Rear Deck

Two 170mm high efficiency mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

6

Subwoofer

Rear

200mm Dual Voice Coil Subwoofer delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

7

Midrange

Rear

These two 90mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

8

Amplifier

Rear

12-channel, 835-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

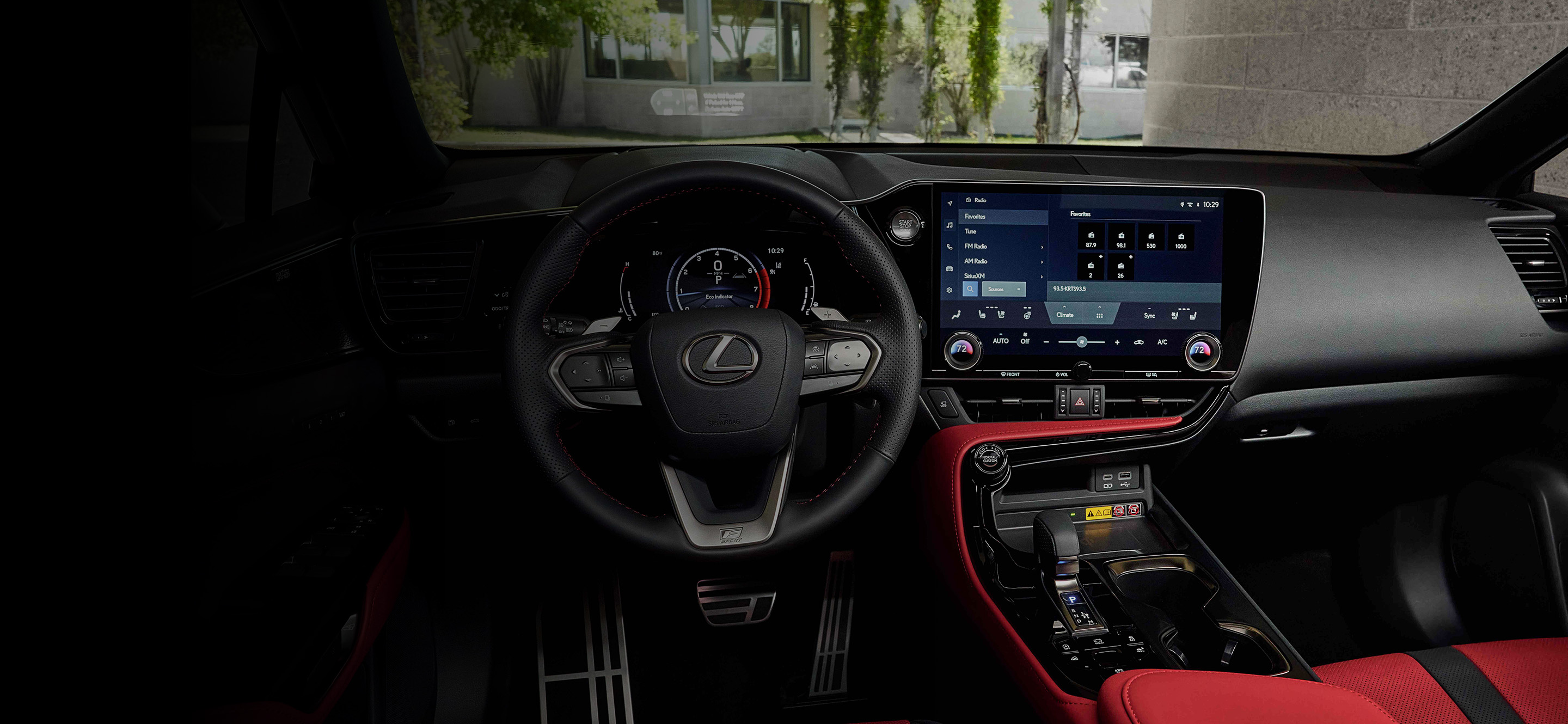

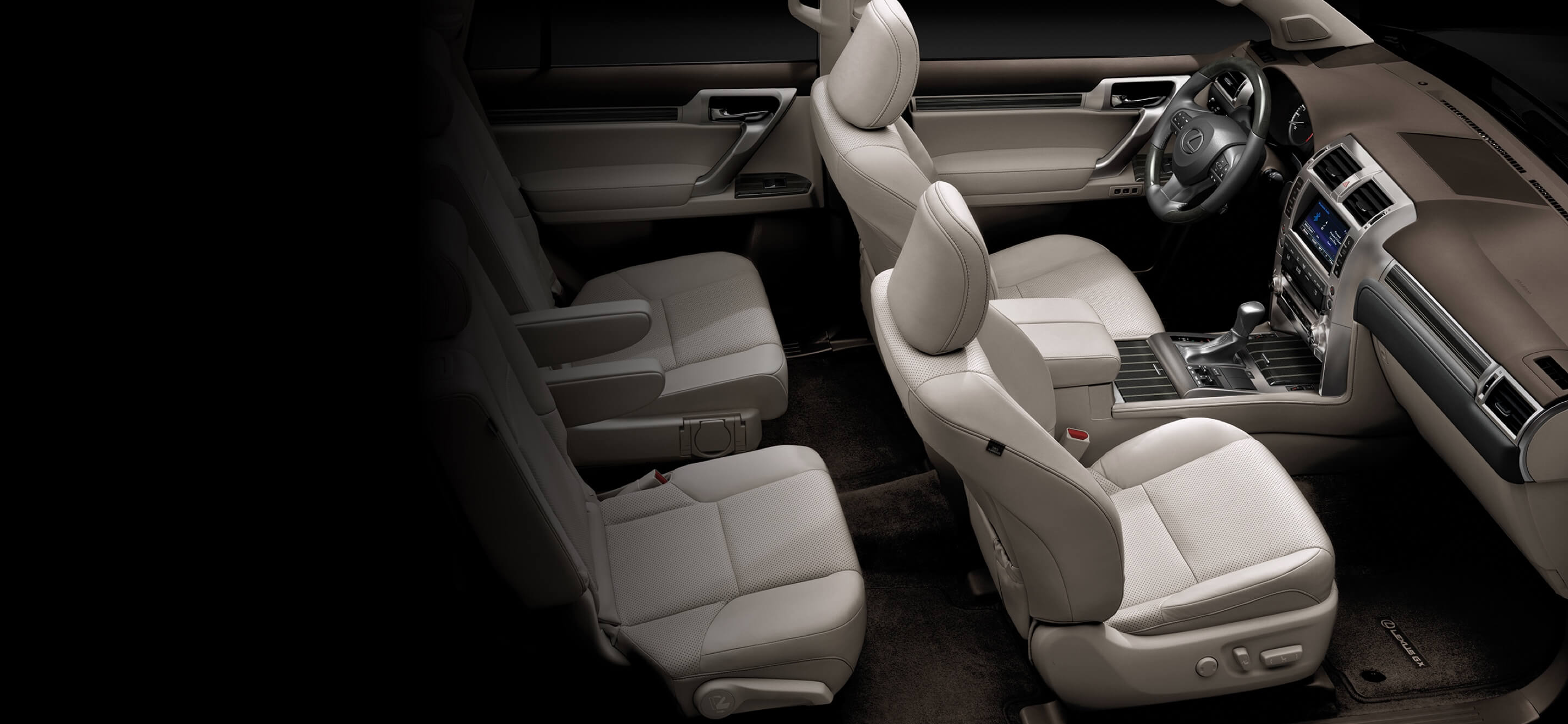

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

Lexus <em>GX</em>
GX
330 watts
17 speakers

Highlights

  • 330 watts amplified power
  • 17 speakers
  • 7.1 channel architecture
  • 12 channel DPS amplifier

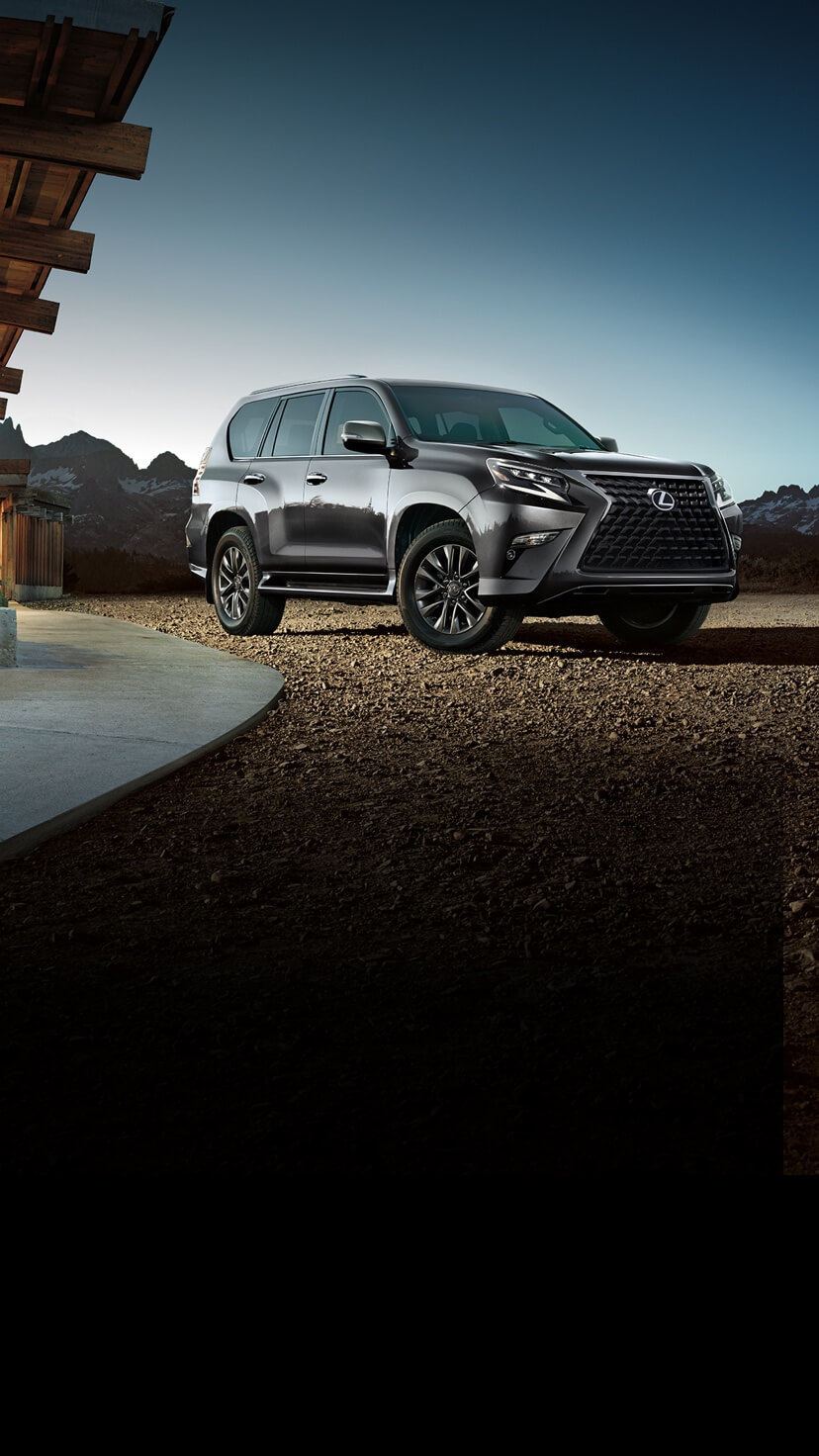

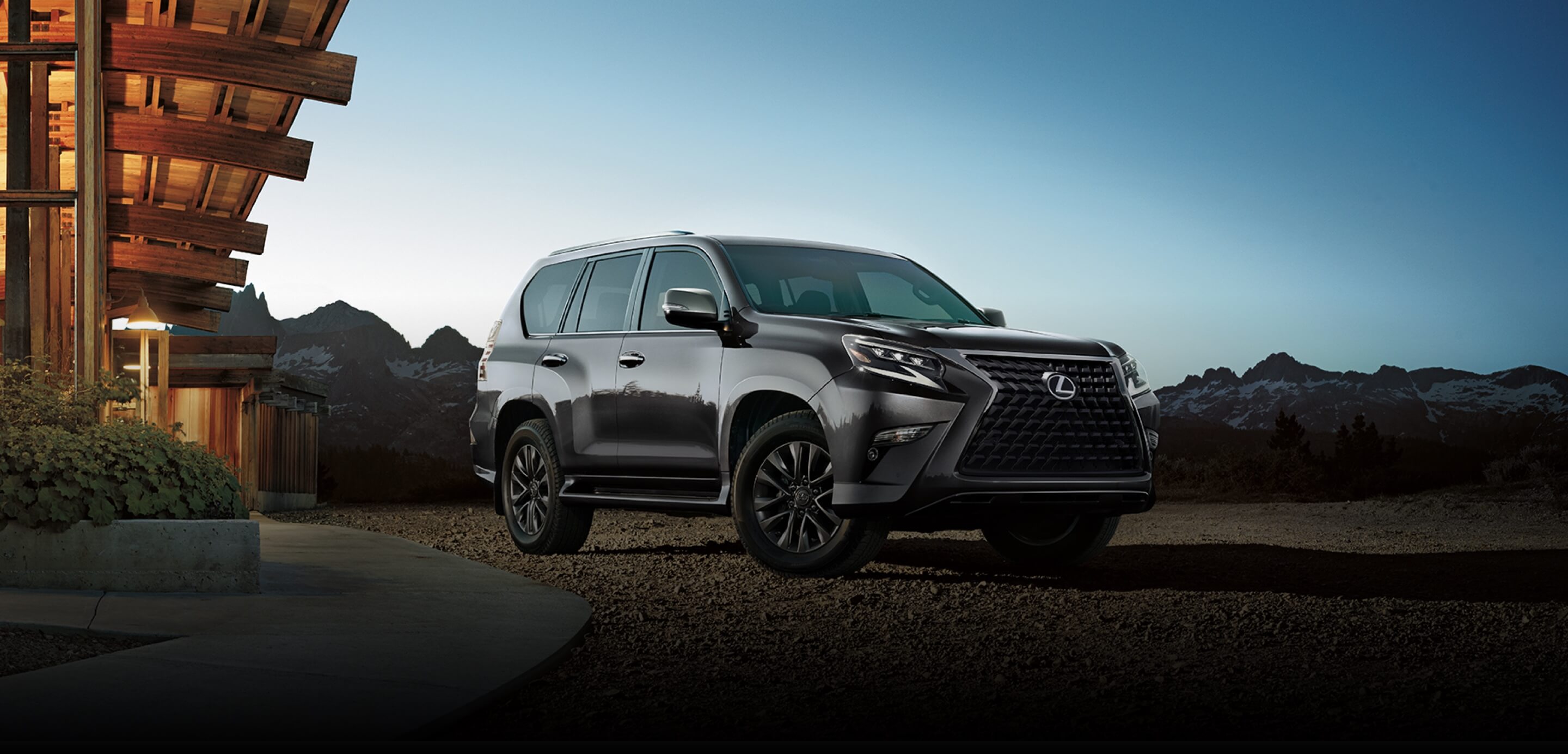

Lexus GX

Incredible Sound,
On and Off the Beaten Path

Whether you’re hitting the city streets or navigating the dirt roads, the Lexus GX features driver-inspired technology and next-generation speakers that fully immerse you in the environment and sound that surrounds you.

Learn more about the Lexus GX on Lexus.com

1 2 2 5 5 3 4 4 7 7 6 6 8 9 9

System Overview

1

Coax Midrange/Tweeter

Center Front

Three 90mm midrange woofers and three 25mm tweeters mounted coaxially combine mid and high frequencies. The full auditory range of 20-20,000 hertz fills the cabin with clear, rich sound.

2

Midrange

Center Front

These two 90mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

3

Amplifier

Front and rear doors

12-channel, 330-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

4

Mid-Woofer

Front and rear doors

Two 6x9cm mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

5

Tweeter

Front and rear doors

Four compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

6

Midrange

Rear Deck

Two 160mm high efficiency mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

7

Tweeter

Rear Deck

Four compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

8

Subwoofer

Rear

The 250mm Dual Voice Coil enclosed subwoofer delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

9

Coax Midrange/Tweeter

Rear

Three 90mm midrange woofers and three 25mm tweeters mounted coaxially combine mid and high frequencies. The full auditory range of 20-20,000 hertz fills the cabin with clear, rich sound.

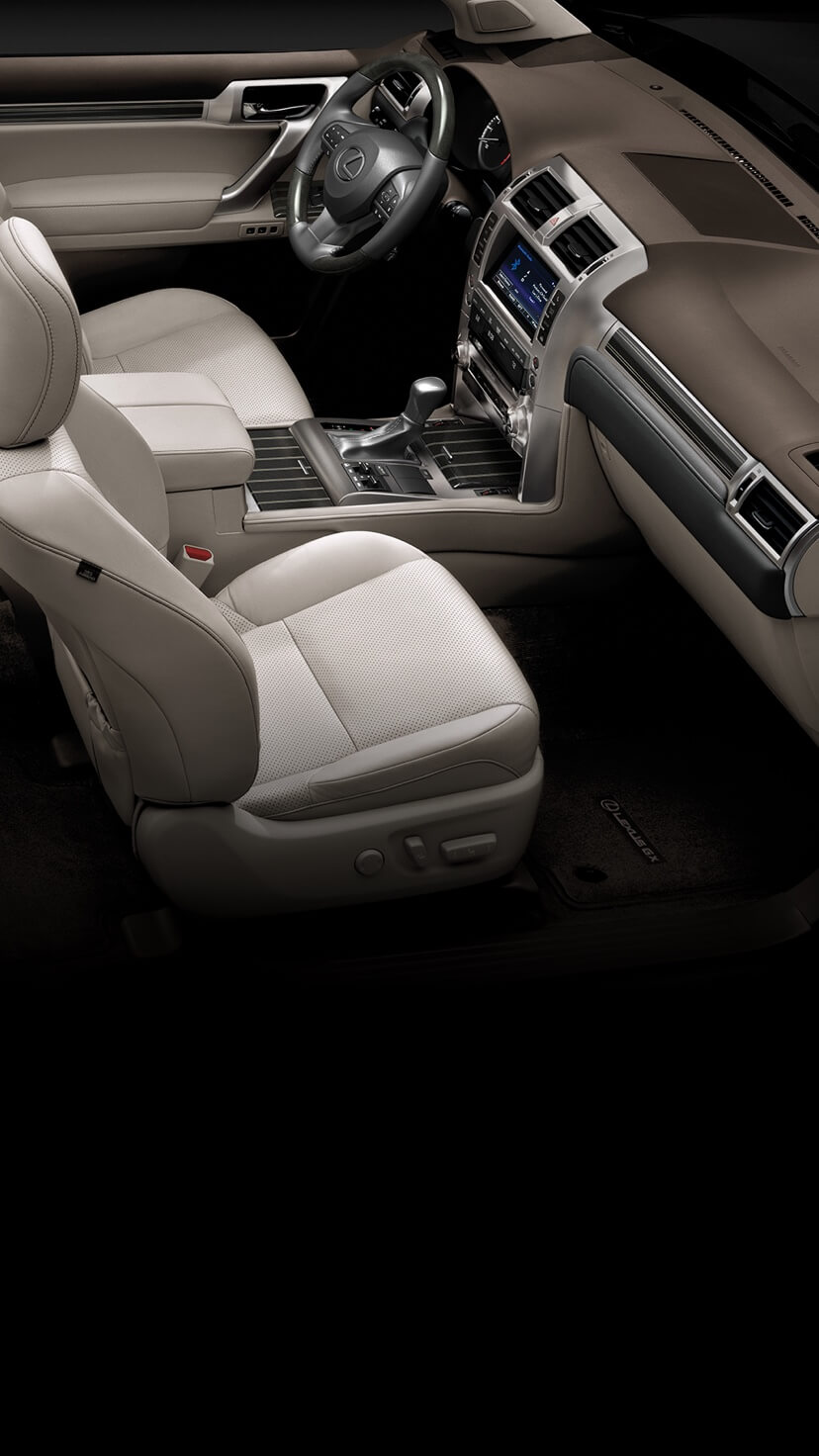

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

Lexus <em>IS</em>
IS
835 watts
15 speakers

Highlights

  • 835 watts amplified power
  • 15 speakers
  • 7.1 channel architecture
  • 10 channel DPS amplifier

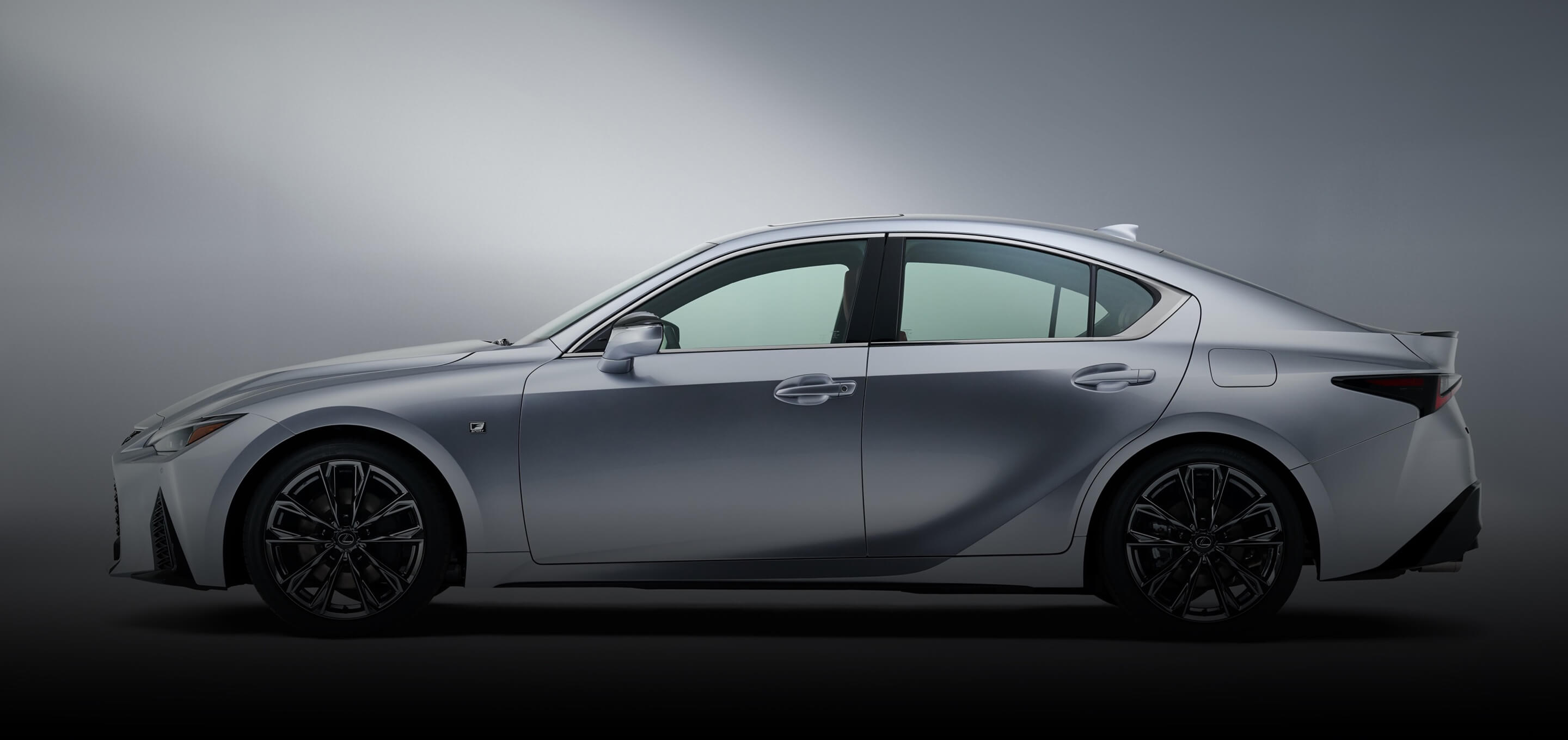

Lexus IS

Bold Sound That Turns Heads

Striking presence that stands out from the crowd and bold sound that turns heads. That’s what you get when you blend commanding interior and exterior design with an impeccably engineered sound system. That’s what you get with the Lexus IS.

Learn more about the Lexus IS on Lexus.com

9 8 8 7 7 6 6 5 4 4 3 3 2 2 1

System Overview

1

Midrange

Center Front

These five 65mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

2

Midrange

Front and rear doors

These five 65mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

3

Mid-Woofer

Front and rear doors

Two 160mm mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

4

Tweeter

Front and rear doors

Four compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

5

Amplifier

Front and rear doors

10-channel, 300-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

6

Tweeter

Rear Deck

Four compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

7

Midrange

Rear Deck

Two 100mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

8

Midrange

Rear

These five 65mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

9

Subwoofer

Rear

The 200mm Dual Voice Coil subwoofer delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

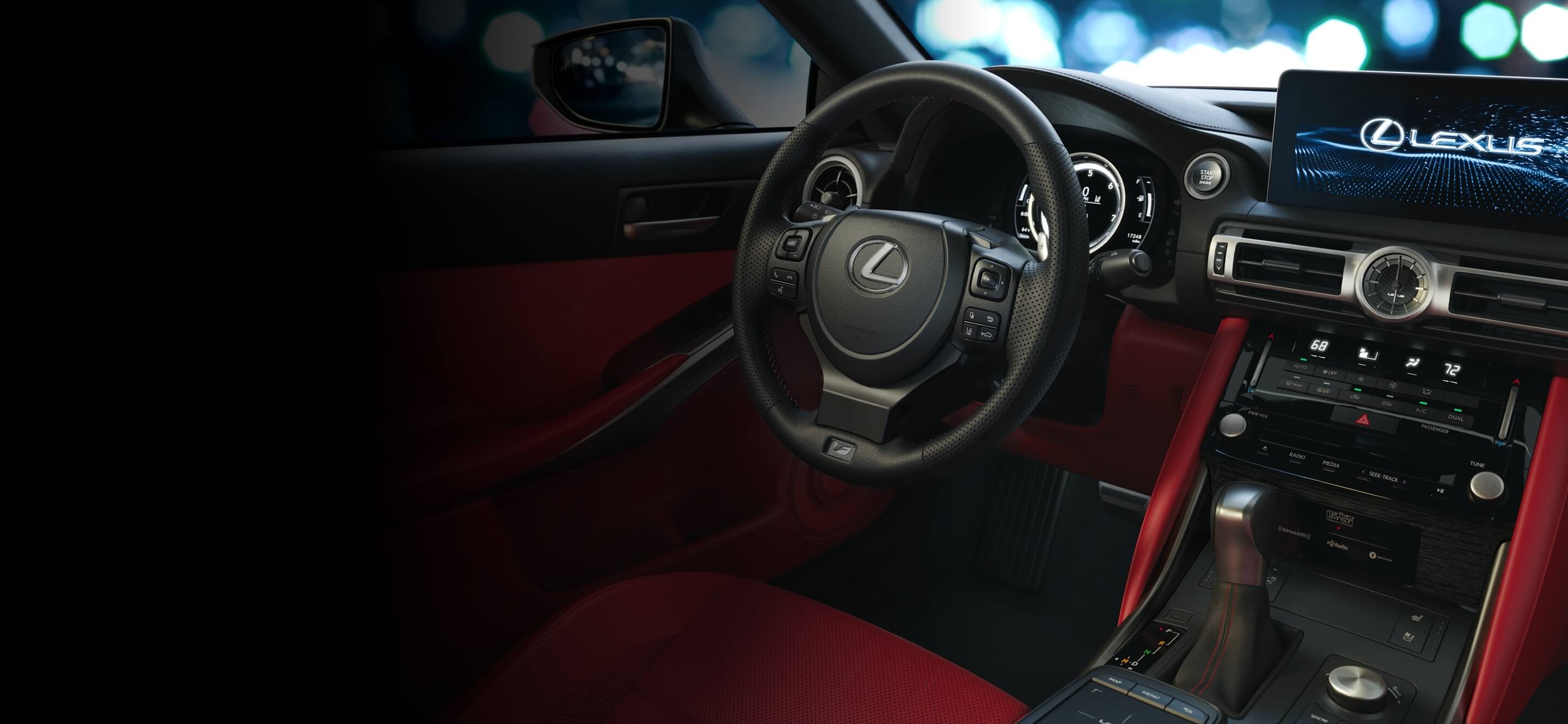

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

Lexus <em>LC</em>
LC
915 watts
13 speakers

Highlights

  • 915 watts amplified power
  • 13 speakers
  • 7.1 channel architecture
  • 11 channel DPS amplifier

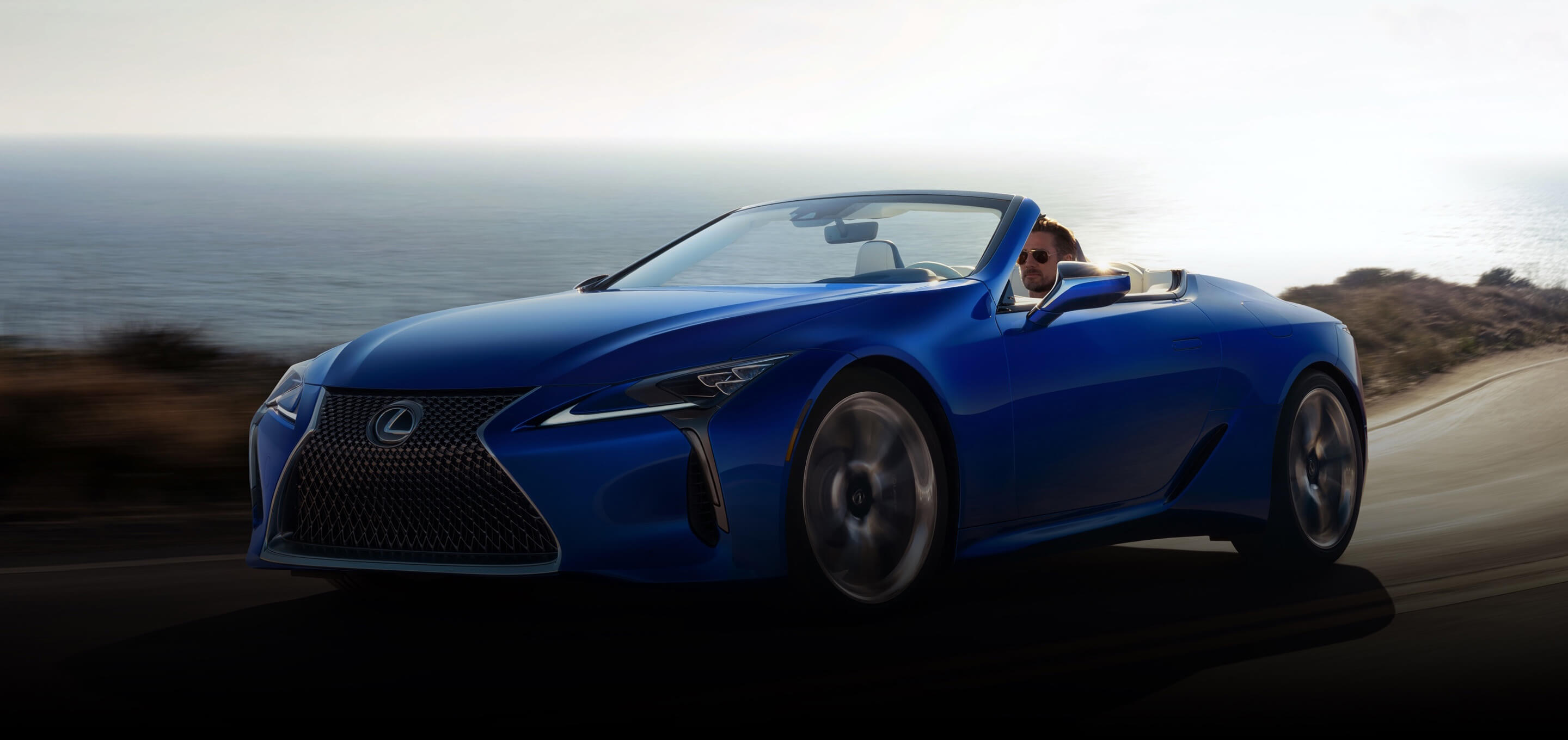

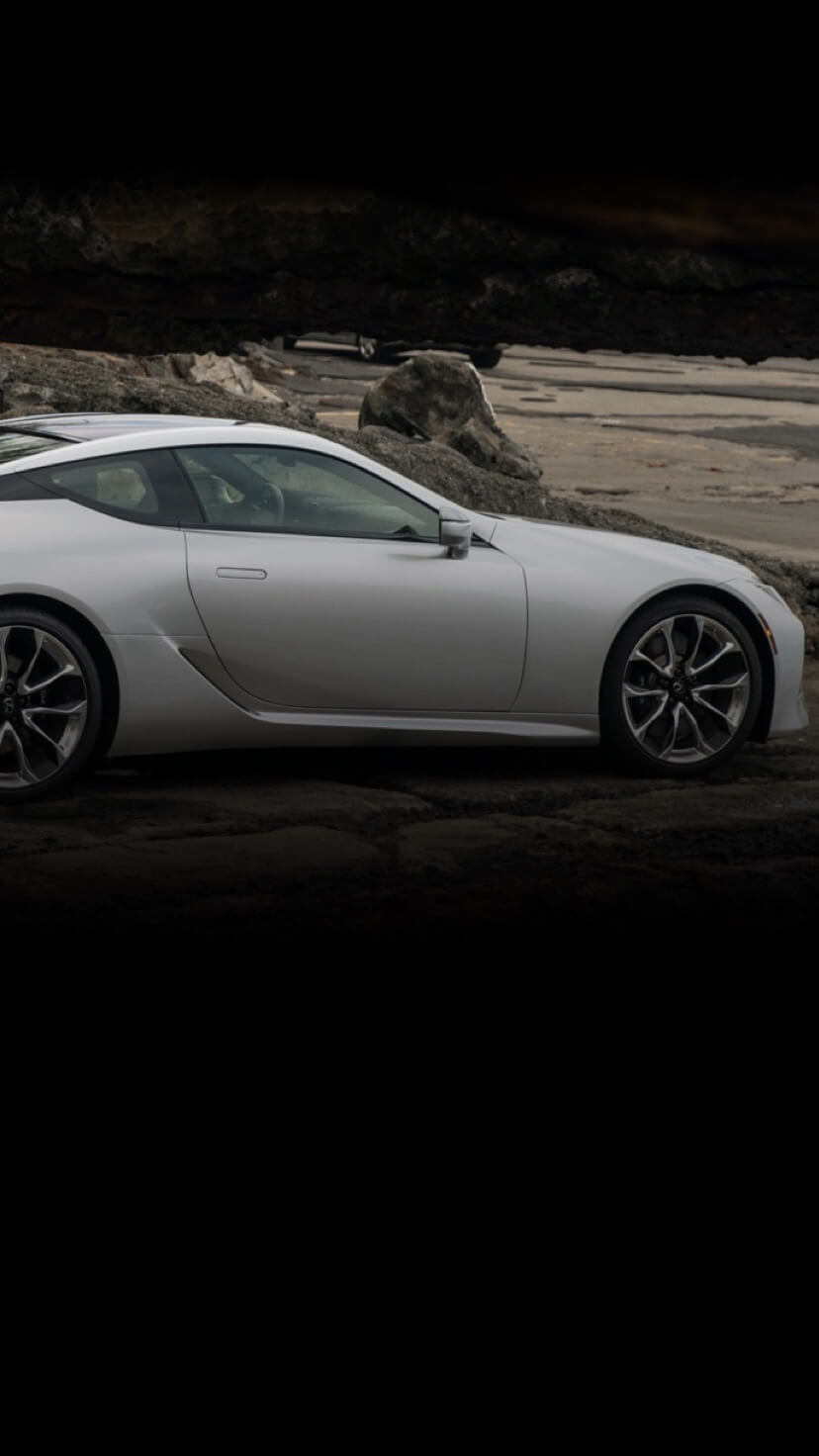

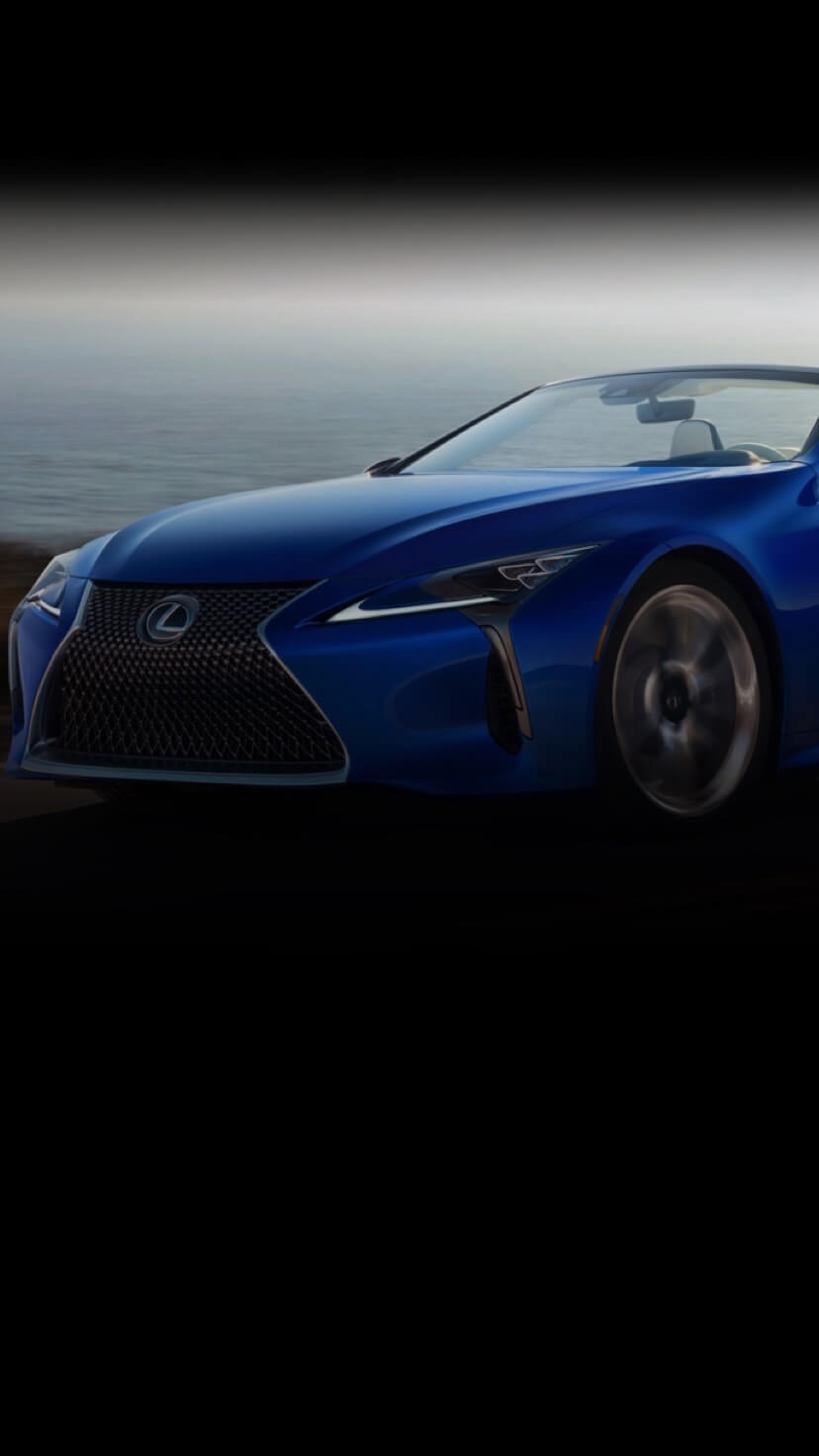

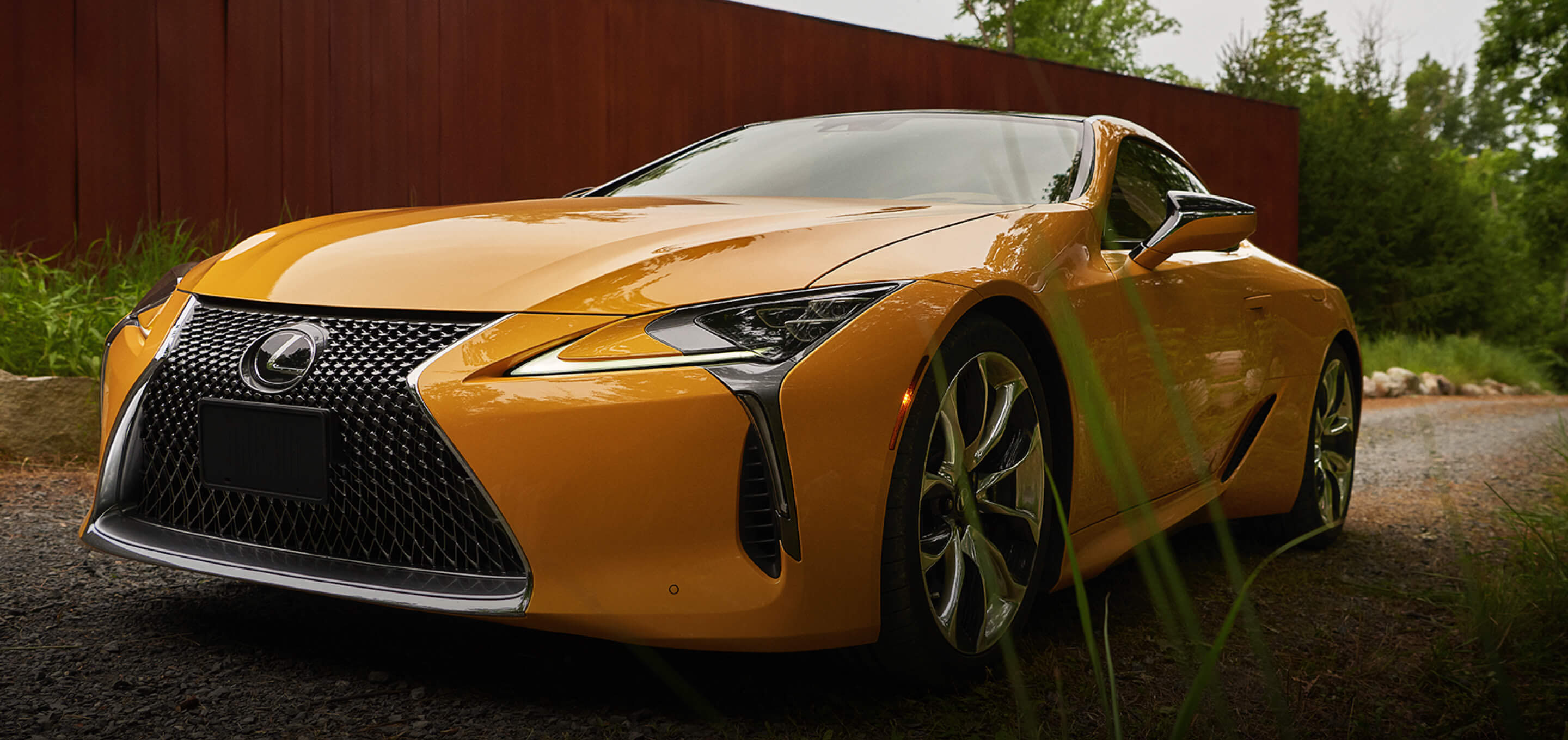

Lexus LC

High-Performance, With Sound to Match

A high-performance coupe with world-class luxury deserves a sound system to match. That’s why we chose premium Mark Levinson technology for the LC. Because when you’re surrounded by bold sound and uncompromising performance like this, you’re connected to the road and your music like never before.

Learn more about the Lexus LC on Lexus.com

System Overview

1

Transducers

100 mm Direct Drive transducers (Bi-Amplified Coaxial Speakers mounted 16 mm tweeter/100 mm aluminum midrange)

2

Woofers

180 mm Woofers

3

Unity Speakers

100 mm Unity Speakers

4

Subwoofer

265 mm Conventional Subwoofer

5

Amplifier

11-Channel Amplifier with 915 watts output.

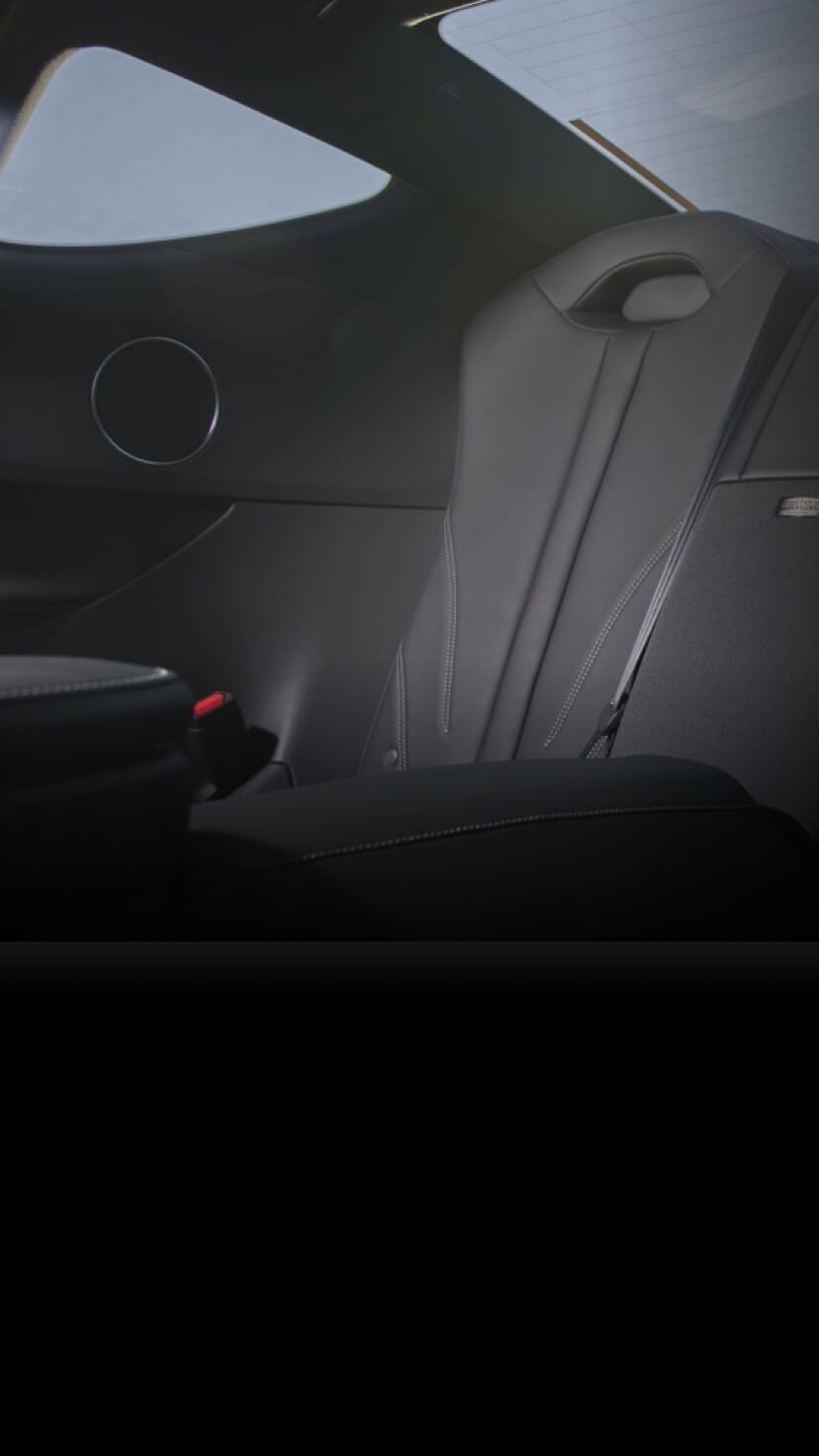

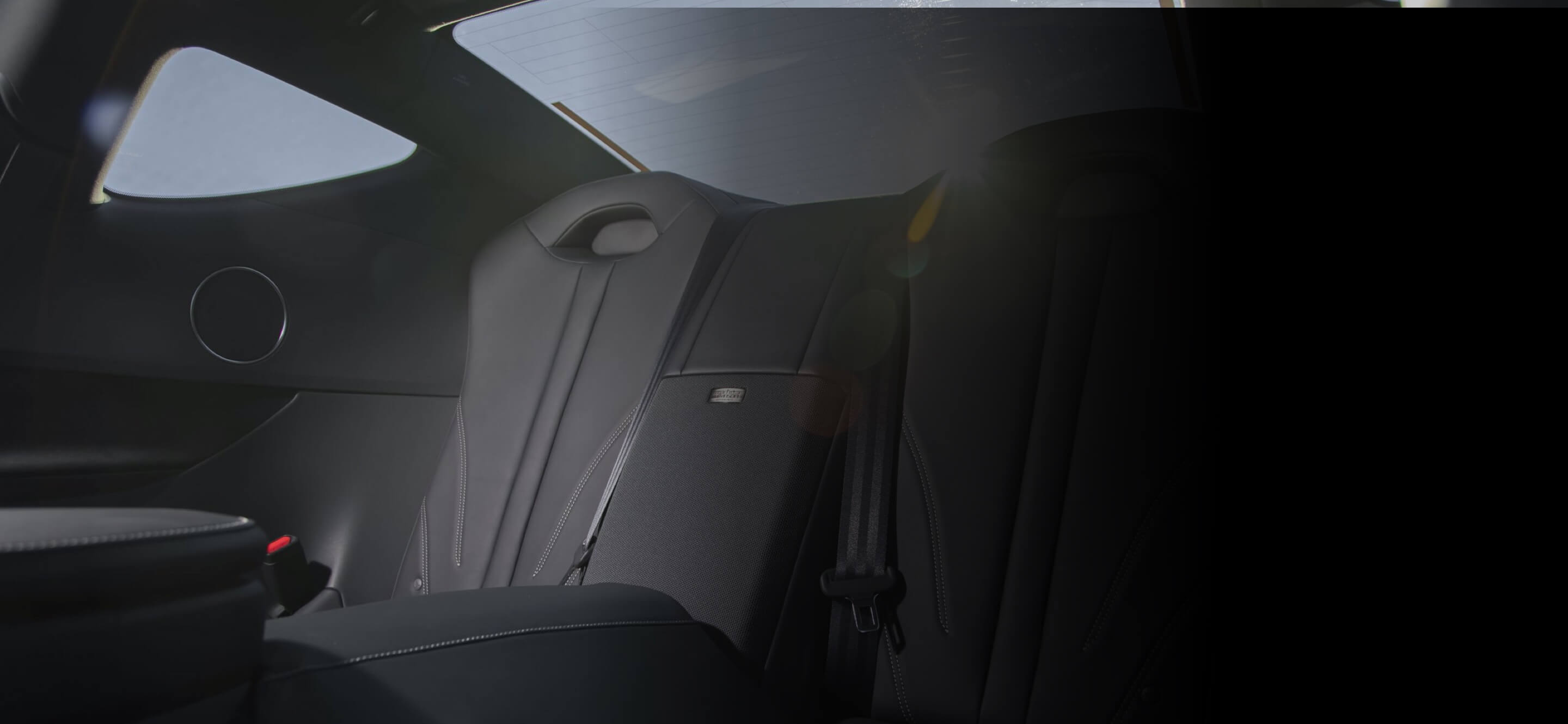

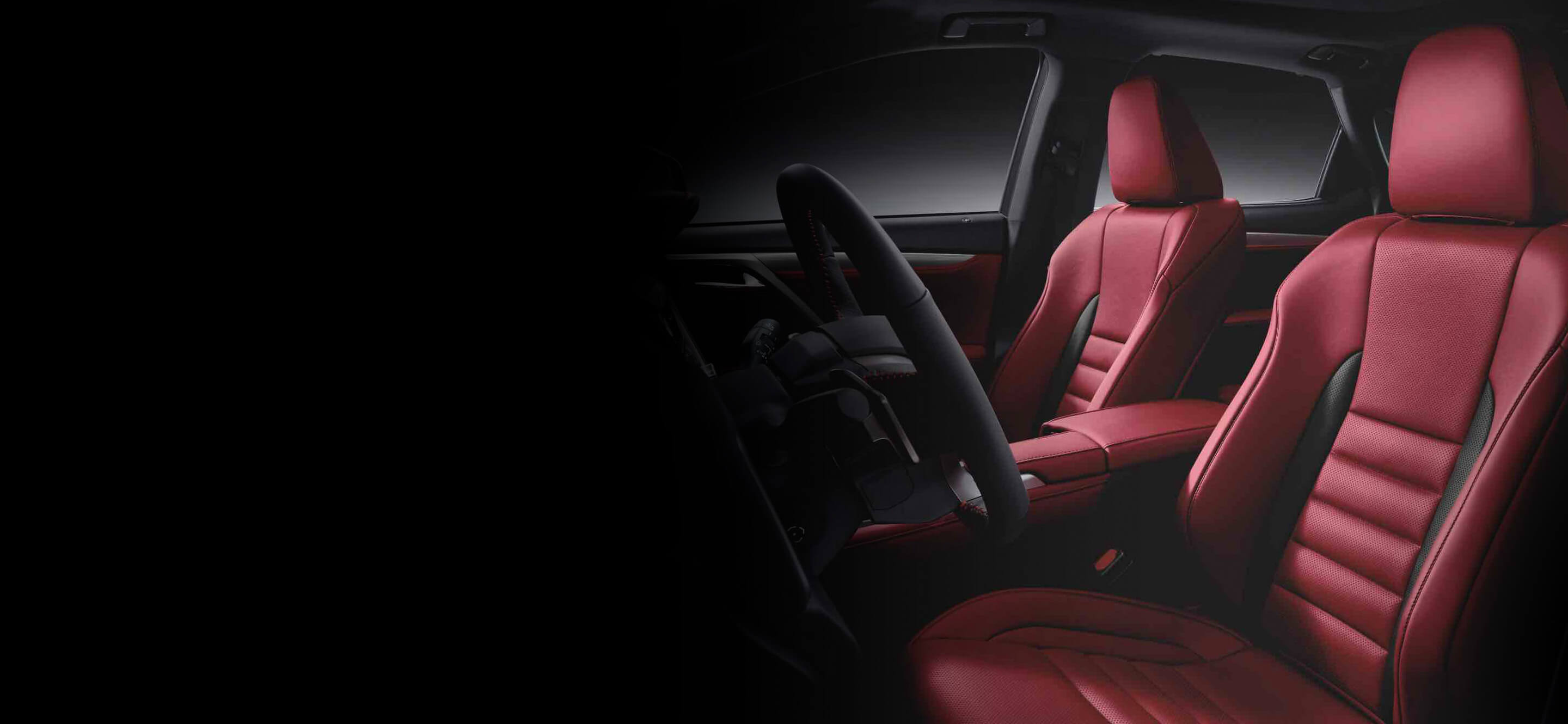

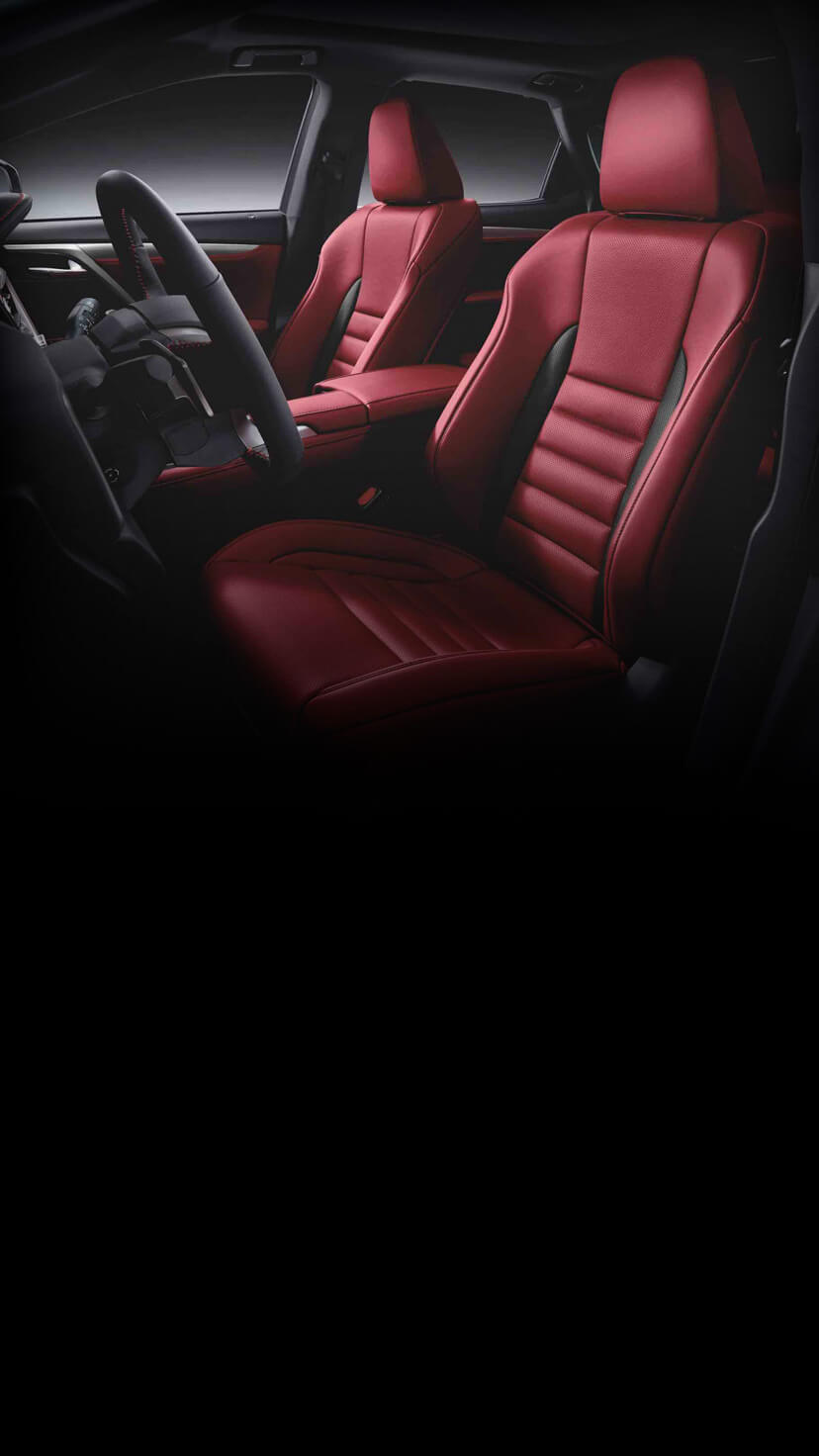

QuantumLogic Surround

QuantumLogic Surround (QLS) enhances the realism of your audio and completely immerses you in dimensional sound. It does through proprietary algorithms that extract and enhance signals and impulse responses from the original recordings so you can listen to every note perfectly.

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

Lexus <em>LS</em>
LS
2400 watts
23 speakers

Highlights

  • 2400 watts amplified power
  • 23 speakers
  • 7.1 channel architecture
  • 16 channel DPS amplifier

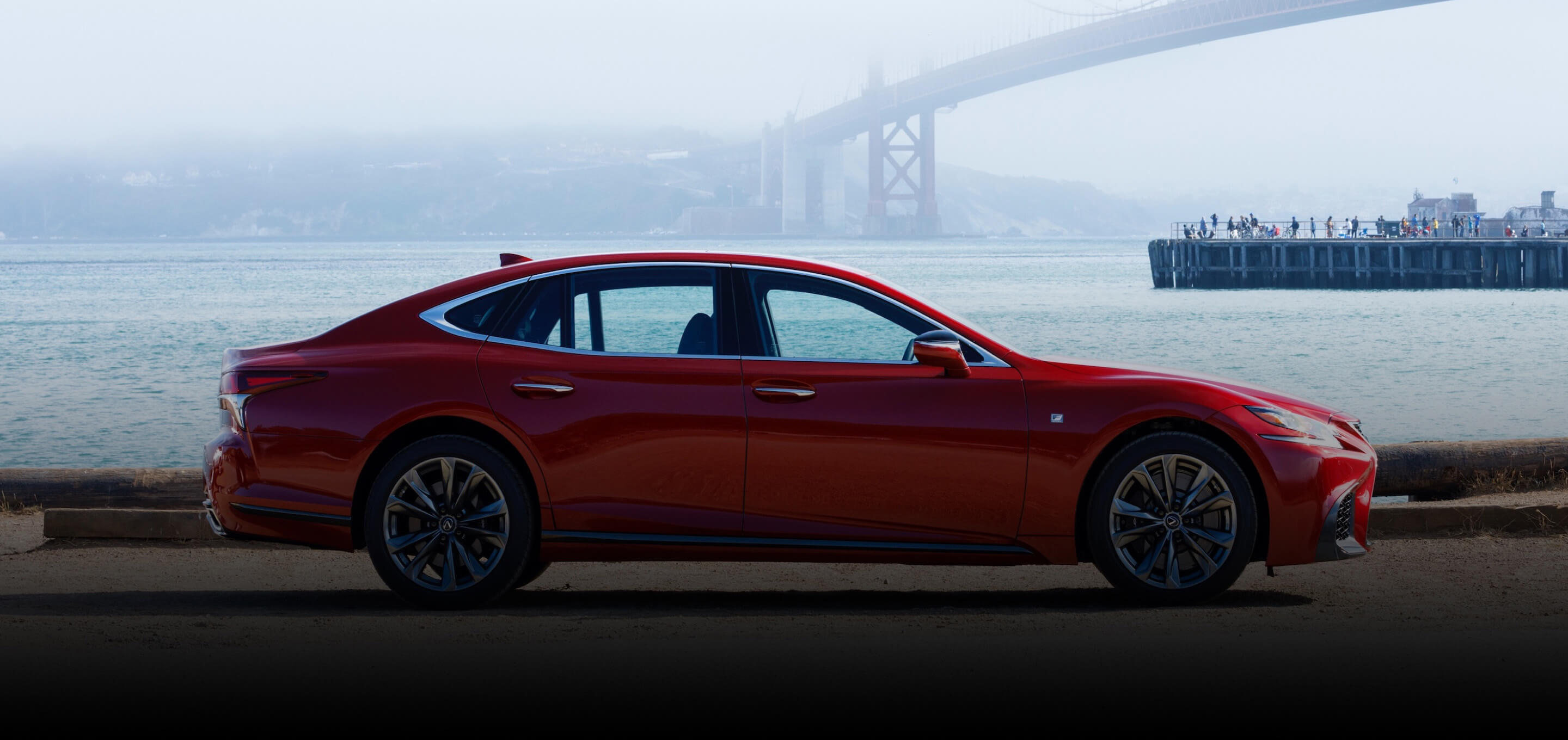

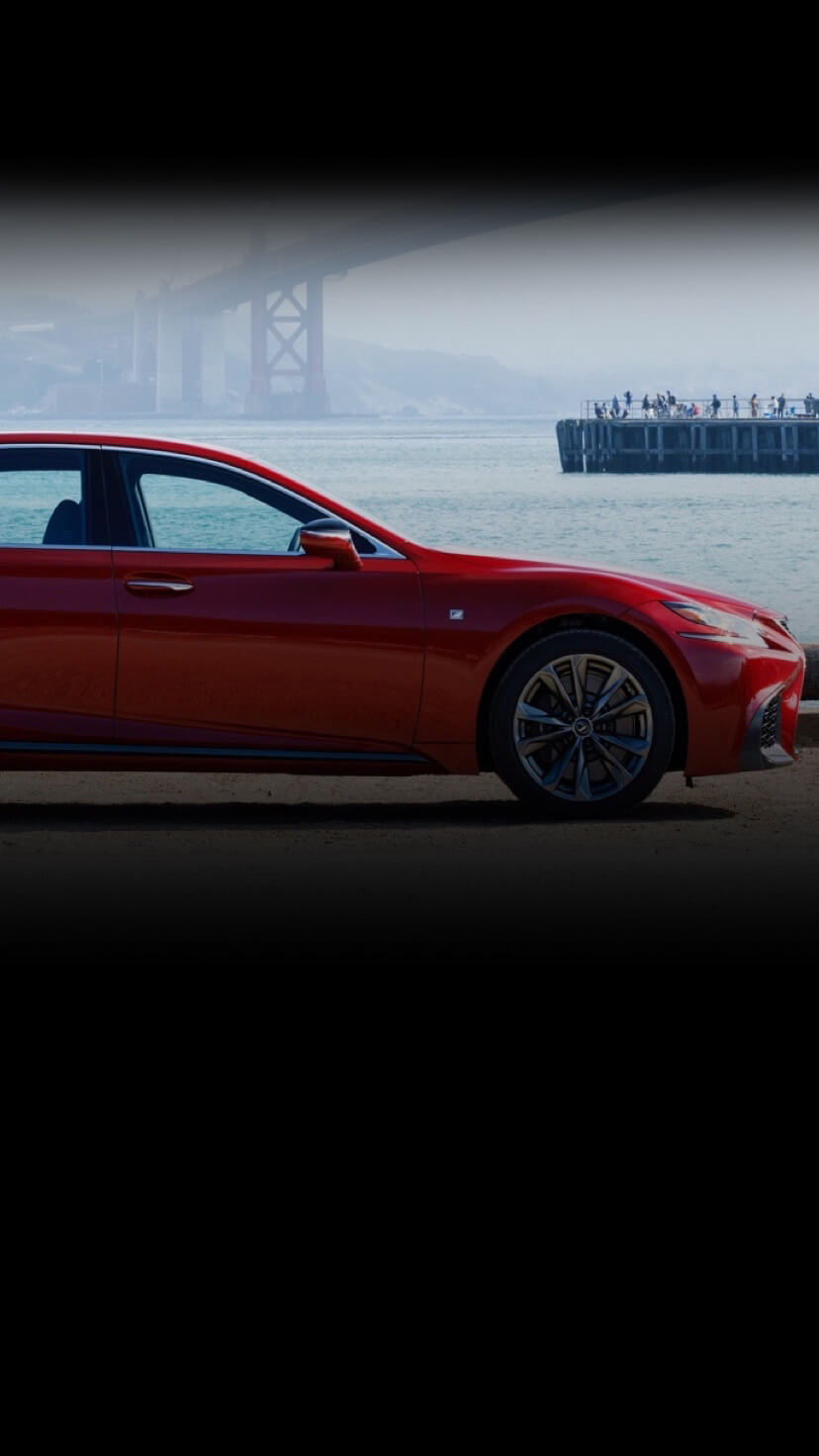

Lexus LS

Luxury Style and Sound—Redesigned

Completely redesigned to push the boundaries of style and sound, the Lexus LS and LS Hybrid incorporate proprietary Mark Levinson technology to deliver a three-dimensional surround sound experience that will take your breath away.

Learn more about the Lexus LS on Lexus.com

1 1 1 2 2 2 3 3 4 5 5 6 6 7 7 8 8 9 9 10

System Overview

1

Midrange Speakers

Center Front

Seven 100mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

2

Tweeter

Center Front

These seven compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

3

Mid-Woofers

Front and rear doors

Two 6x9cm mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

4

Amplifier

Front and rear doors

16-channel, 450-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

5

Tweeter

Rear Deck

These seven compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

6

Midrange

Rear Deck

Seven 100mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

7

Mid-Woofer

Rear Deck

Two 160mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

8

Tweeter

Rear

These seven compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

9

Midrange

Rear

Seven 100mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

10

Subwoofer

Rear

The 250mm Dual Voice Coil subwoofer delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

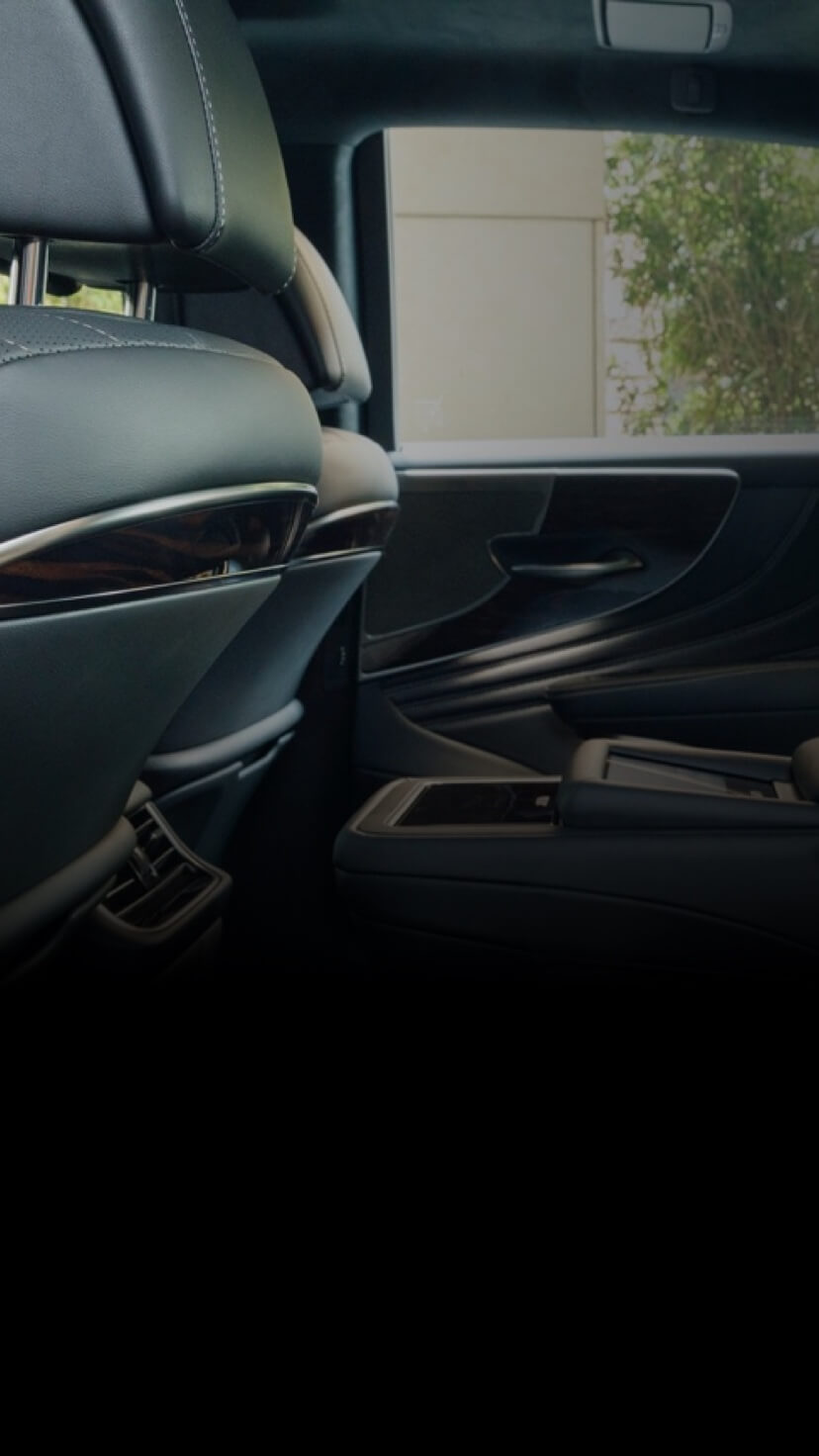

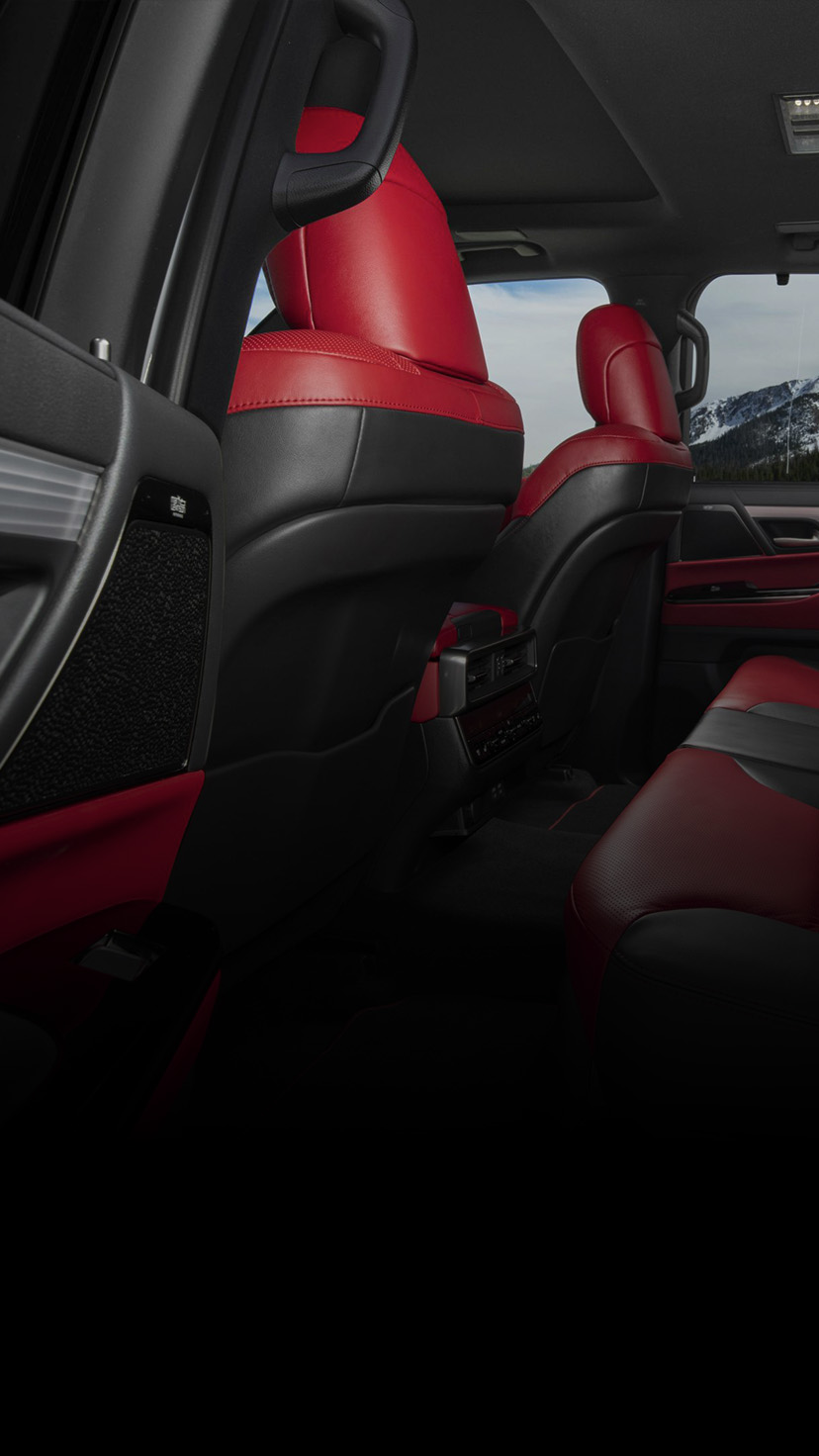

3D Surround Sound

Stunning music experiences shouldn’t be just for the front row. That’s why we spend thousands of hours collaborating with Lexus engineers to customize the speaker placement and system architecture in each unique automobile. The result? Completely immersive 3D sound that envelops each listener—no matter where they’re sitting.

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

Lexus <em>LX</em>
LX
450 watts
19 speakers

Highlights

  • 450 watts amplified power
  • 19 speakers
  • 7.1 channel architecture
  • 16 channel DPS amplifier

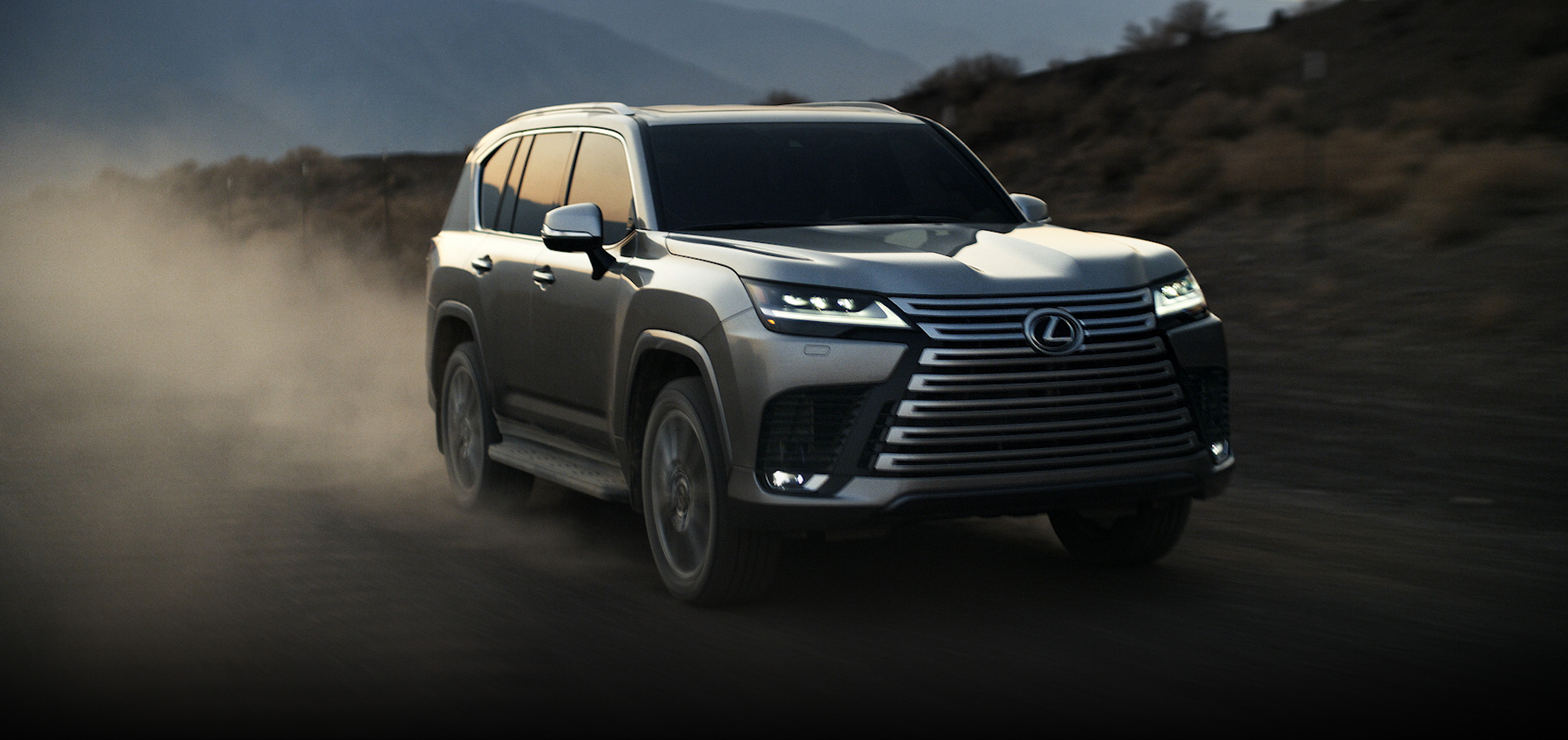

Lexus LX

A Flagship SUV with Peerless Audio

The largest SUV in the Lexus lineup, the LX has a host of innovative features that emphasize its commanding presence—including a peerless Mark Levinson sound system. Together, the spacious cabin and premium sound create a listening environment that revitalizes your music and delivers the most powerful audio experience.

Learn more about the Lexus LX on Lexus.com

1 1 1 2 2 2 3 3 4 5 5 6 6 7 7 8 8 9 9 10

System Overview

1

Midrange Speakers

Center Front

Seven 100mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

2

Tweeter

Center Front

These seven compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

3

Mid-Woofers

Front doors

Two 6x9cm mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

4

Amplifier

Drivers Seat

16-channel, 450-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

5

Tweeter

Rear Deck

These seven compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

6

Midrange

Rear Deck

Seven 100mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

7

Mid-Woofer

Rear Deck

Two 160mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

8

Tweeter

Rear

These seven compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

9

Midrange

Rear

Seven 100mm midrange speakers bridge the gap between bass and tweeter and provide essential fullness and balance to ensure rich, enveloping sound.

10

Subwoofer

Rear

The 250mm Dual Voice Coil subwoofer delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

Lexus <em>NX</em>
NX
980 watts
14 speakers

Highlights

  • 980 watts amplified power
  • 14 speakers
  • 7.1 channel architecture
  • 10 channel DPS amplifier

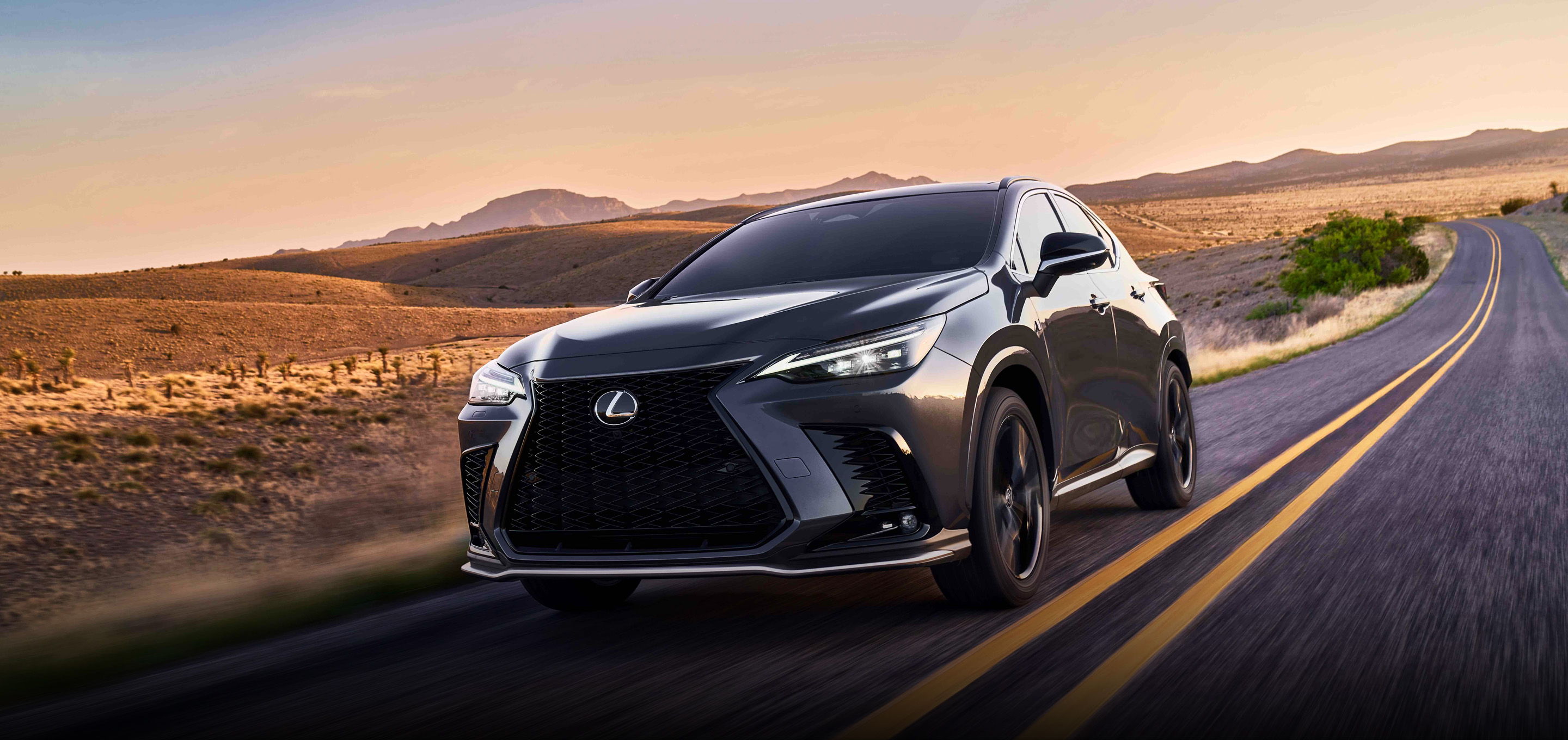

Lexus NX

Sound that Amplifies Life

The Lexus NX offers for the first time a Mark Levinson premium surround sound system allowing you to be fully enveloped by your music.

Learn more about the Lexus NX on Lexus.com

System Overview

1

25mm Dome Tweeters

Two compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

2

170mm Wide Inverted Woofer

Handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

3

90mm Unity Speakers

90mm midrange with 16mm tweeter dual speakers carry an efficient design and create an authentic sound by combining both mid and high frequencies.

4

90mm Wide Dispersion Midrange

Handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

5

200mm Inverted Subwoofer

Delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

6

Amplifier

10-channel, 980-watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

Lexus <em>RX</em>
RX
835 watts
15 speakers

Highlights

  • 835 watts amplified power
  • 15 speakers
  • 7.1 channel architecture
  • 12 channel DPS amplifier

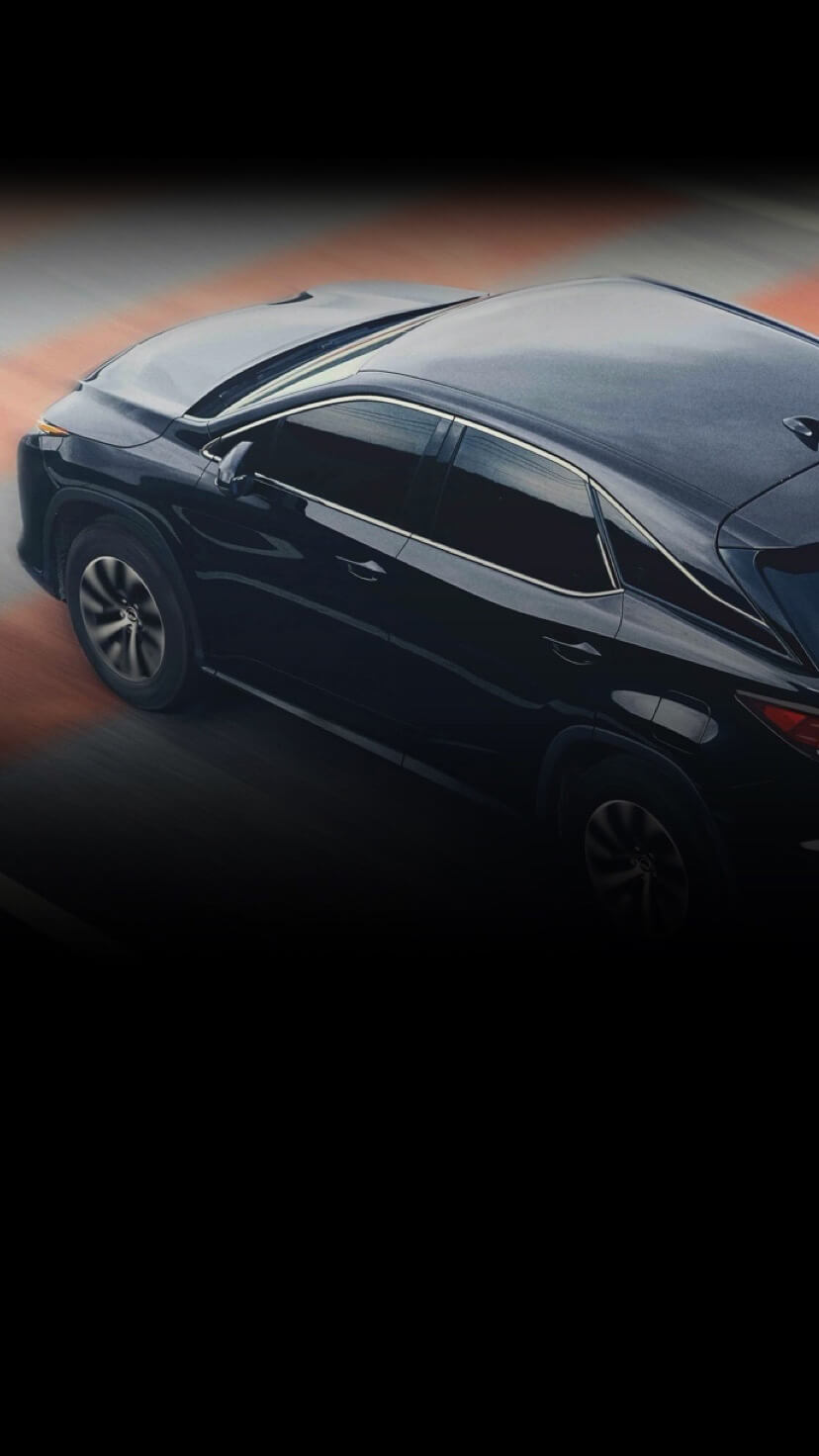

Lexus RX

Sound, Style and Substance—Just What the Doctor Ordered

No matter where you sit, the Lexus RX offers exceptionally engineered Mark Levinson technology that places you at the center of your favorite music, podcasts and media. Once you discover Mark Levinson in the RX, there’s no going back.

Learn more about the Lexus RX on Lexus.com

1 1 1 2 2 3 4 4 5 5 6 6 7

System Overview

1

Midrange Speakers

Center Front

Three 90 mm Unity speakers

2

Woofer

Front and rear doors

Two 7" x 10" woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

3

Amplifier

Center console

12-channel, 835-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

4

Tweeter

Rear Deck

These two compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

5

Mid-Woofer

Rear Deck

Two 170mm mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

6

Midrange Speakers

Rear

90 mm Wide Dispersion speakers

7

Subwoofer

Rear

The 200mm Dual Voice Coil enclosed subwoofer delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

Lexus <em>RC</em>
RC
835 watts
17 speakers

Highlights

  • 835 watts amplified power
  • 17 speakers
  • 7.1 channel architecture
  • 10 channel DPS amplifier

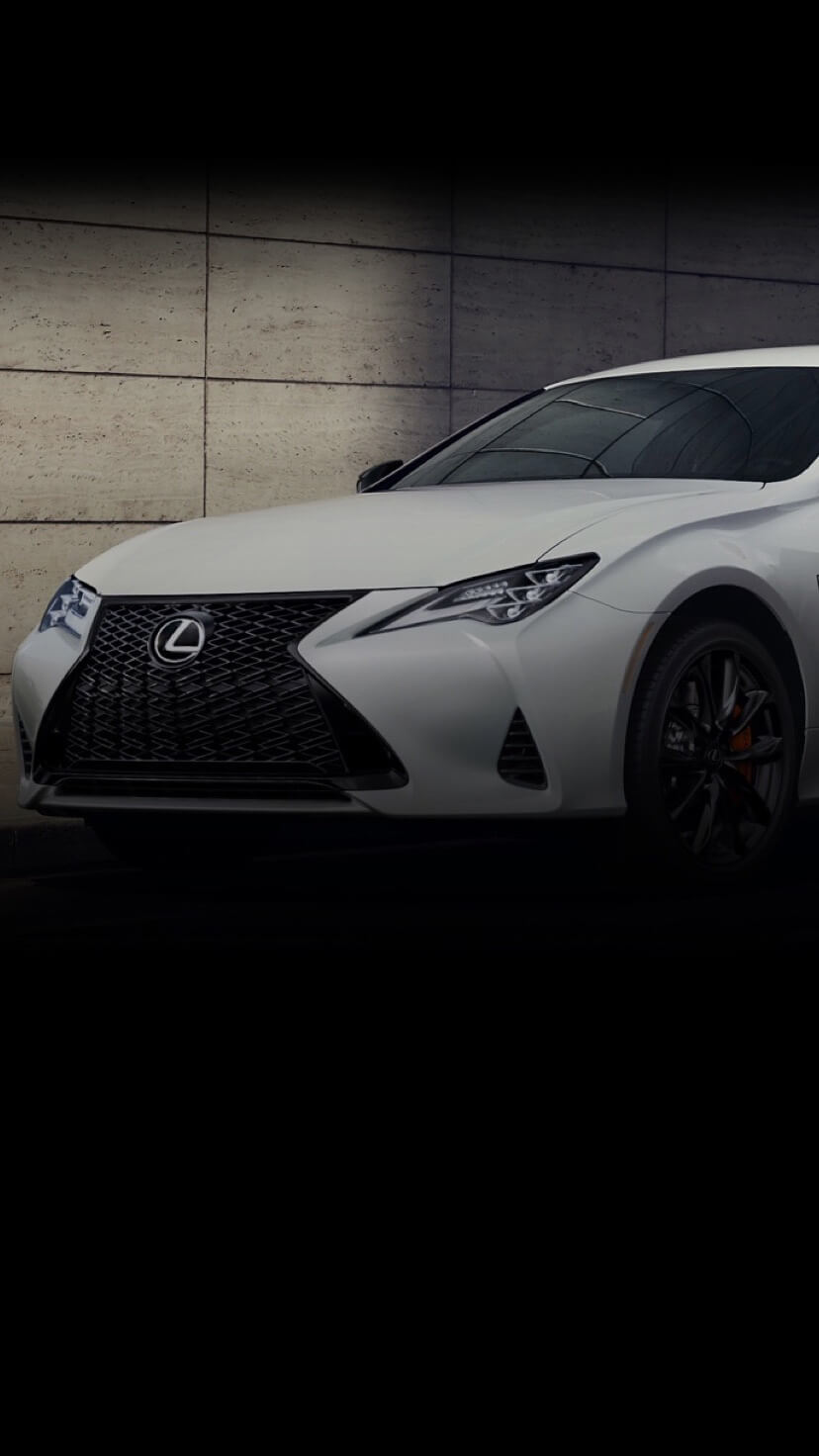

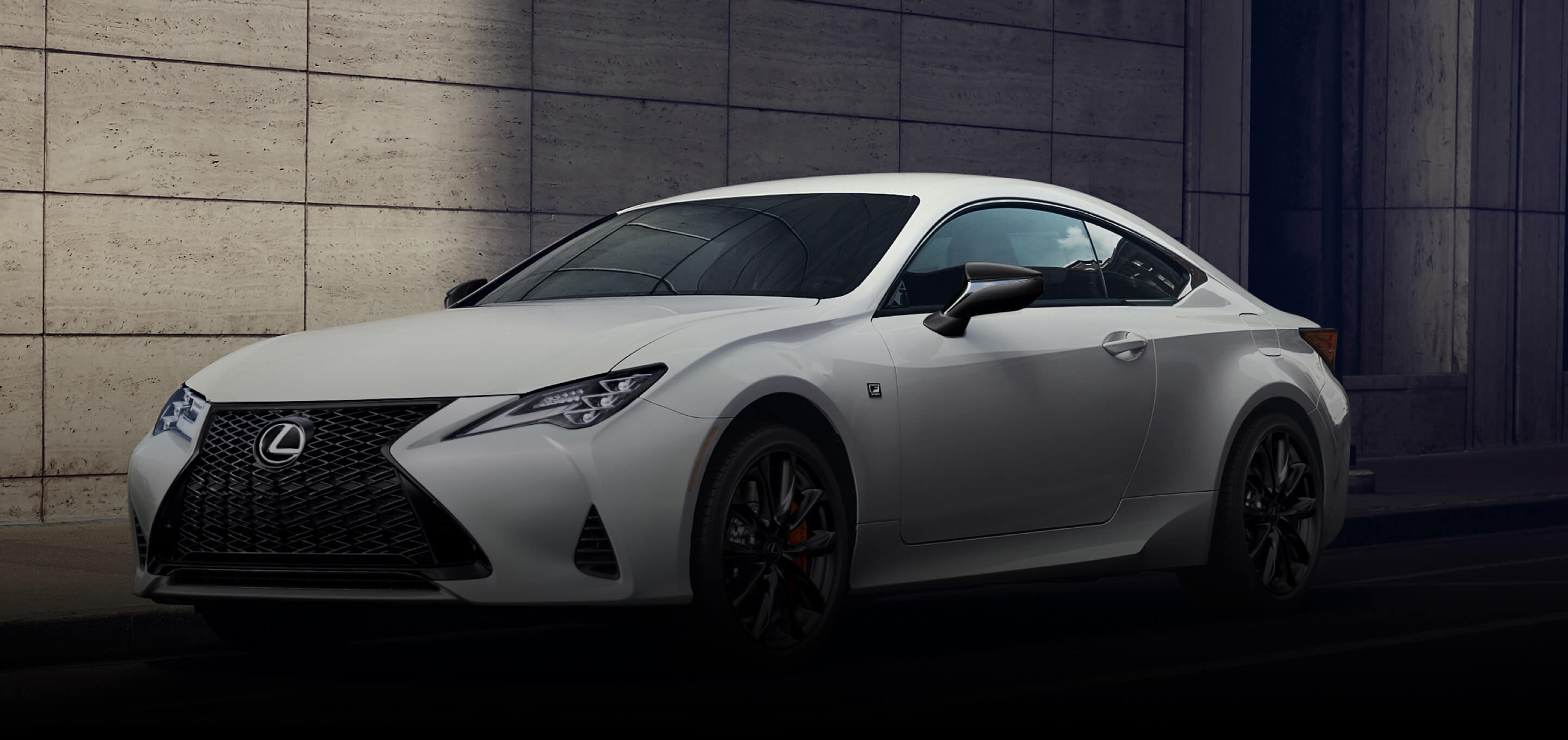

Lexus RC

Strap In for Unmatched Sport and Sonic Performance

Heart-racing sports performance pairs perfectly with exhilarating audio experiences. Discover performance like never before in the Lexus RC—the vehicle that makes every mile and every song memorable.

Learn more about the Lexus RC on Lexus.com

1 1 1 2 2 3 3 4 4 5 6 6 7

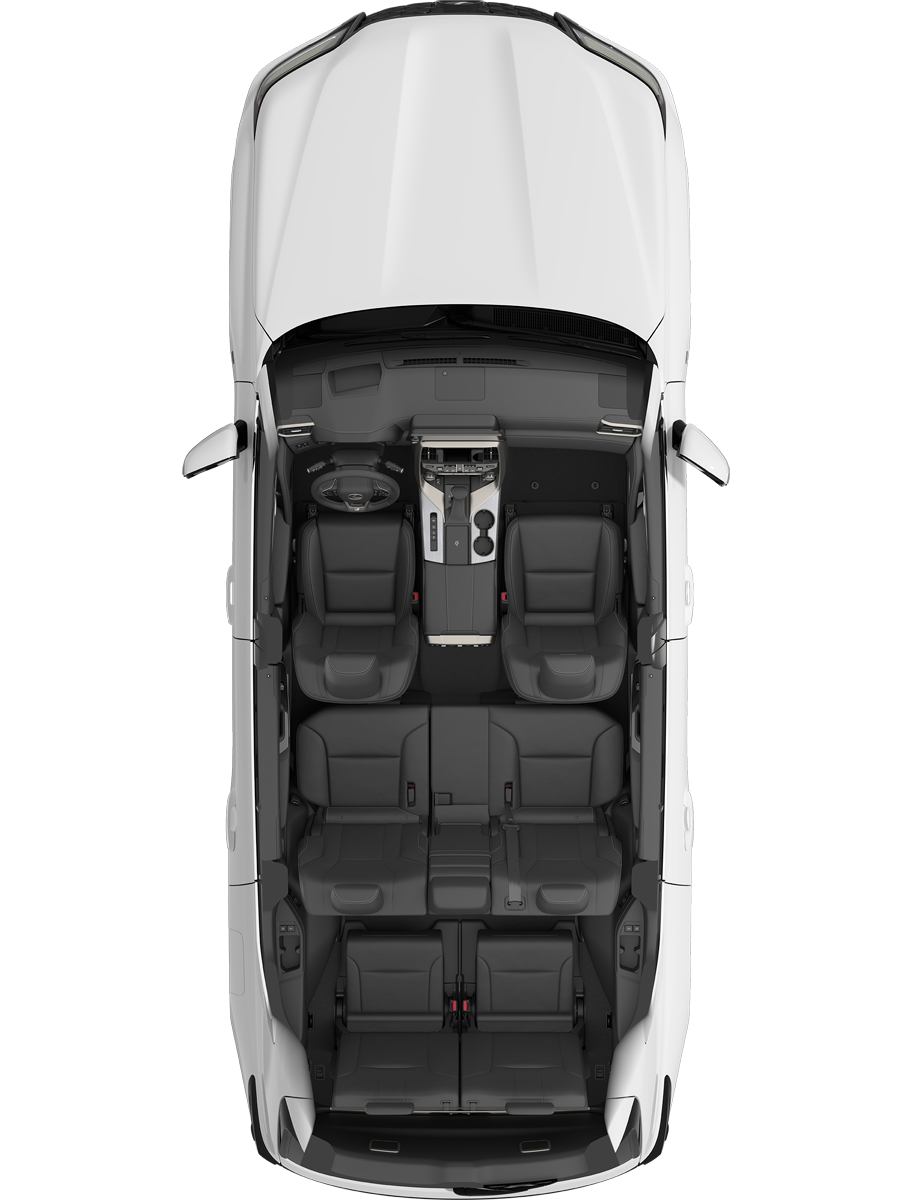

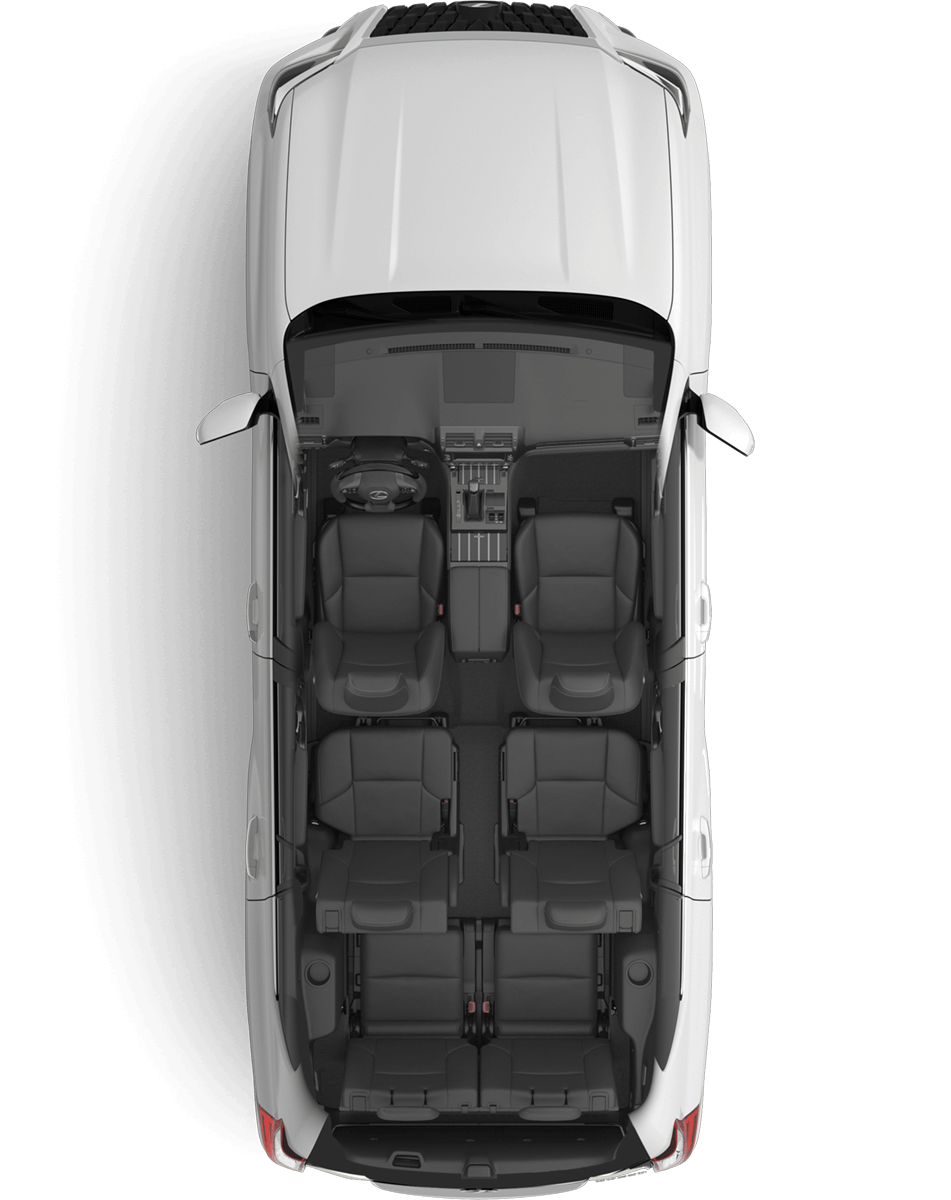

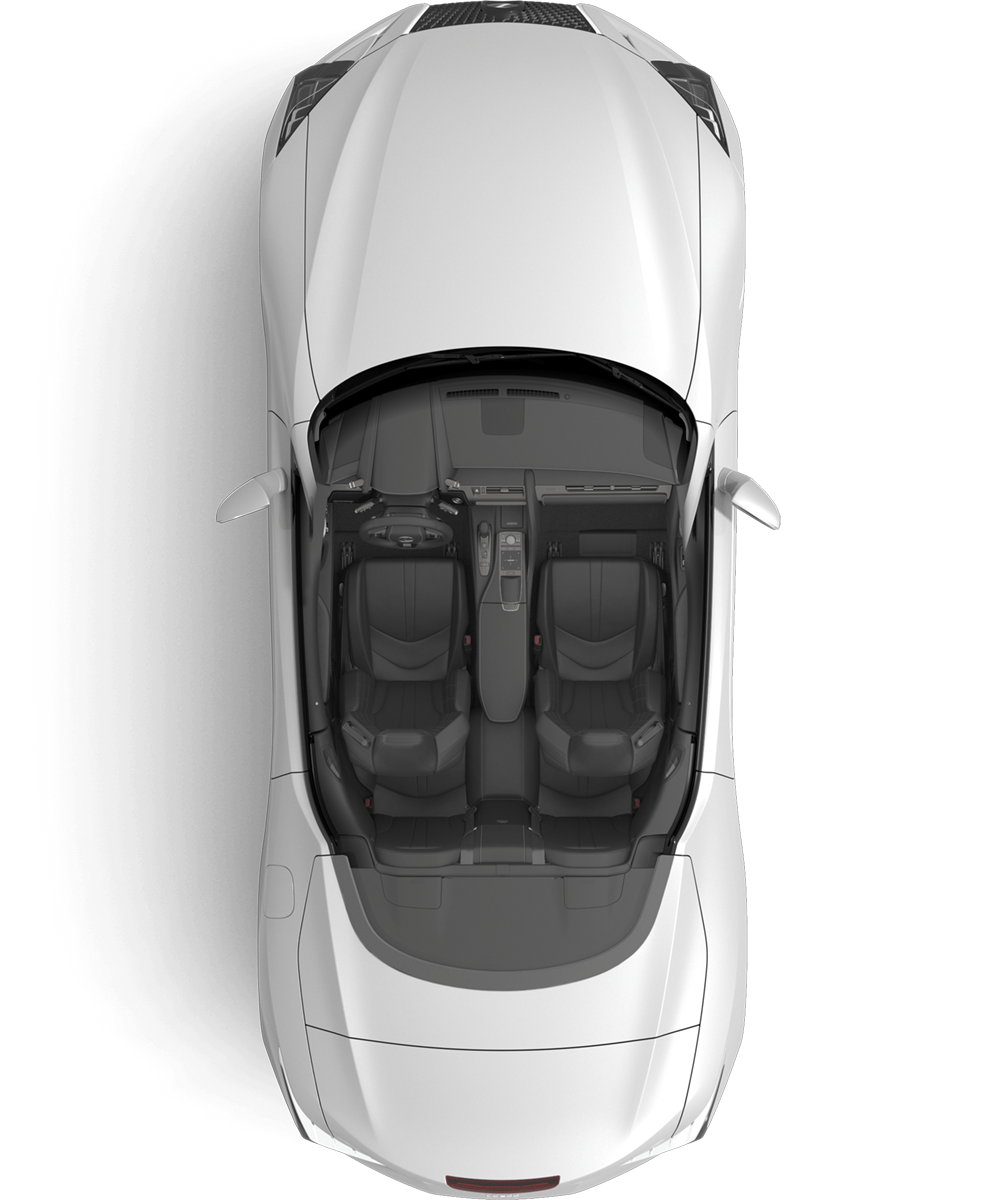

System Overview

1

Unity Extended Bandwidth Speakers

Center Front

These three 90mm midrange with 16mm tweeter dual speakers carry an efficient design creating a pure sound by combining both mid and high frequencies.

2

Mid-Woofers

Front and rear doors

Two 180mm high efficiency mid-woofers

3

Tweeter

Rear Deck

Two compact, high efficiency 25mm tweeters can reproduce the highest frequencies so you fully experience the harmonics of every track.

4

Inverted Woofer

Rear Deck

Two 170mm mid-woofers handle a full range of sound and are optimized to send rich, clear bass notes to every seat in your vehicle.

5

Subwoofer

Rear

The 200mm Dual Voice Coil encolsed subwoofer delivers deep, clear low-frequency effects for any music genre, with sound you can feel as well as hear.

6

Unity Extended Bandwidth Speakers

Rear

These three 90mm midrange with 16mm tweeter dual speakers carry an efficient design creating a pure sound by combining both mid and high frequencies

7

Amplifier

Rear

10-channel, 835-Watt amplifier uses Digital Signal Processing (DSP) to balance and enhance tonal blending, regardless of music or broadcast source.

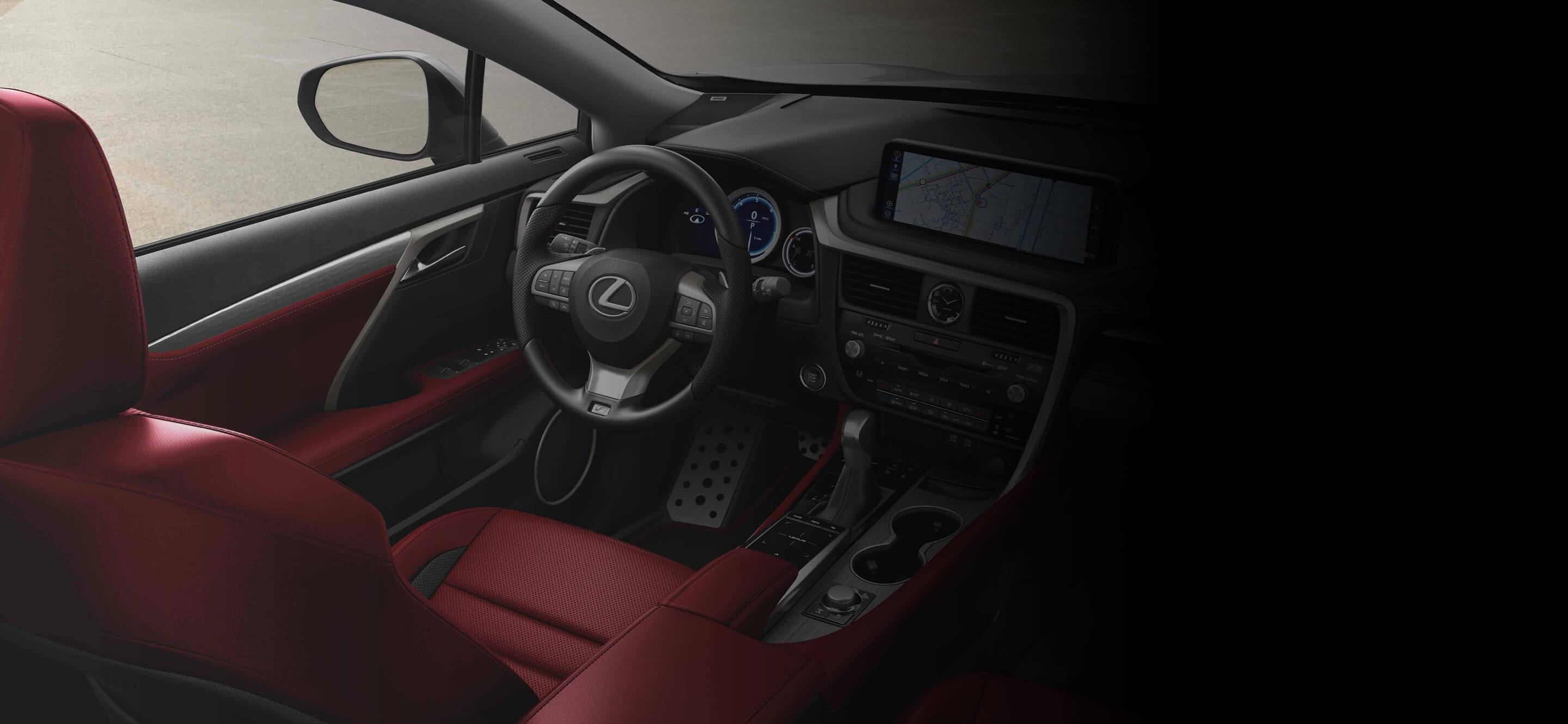

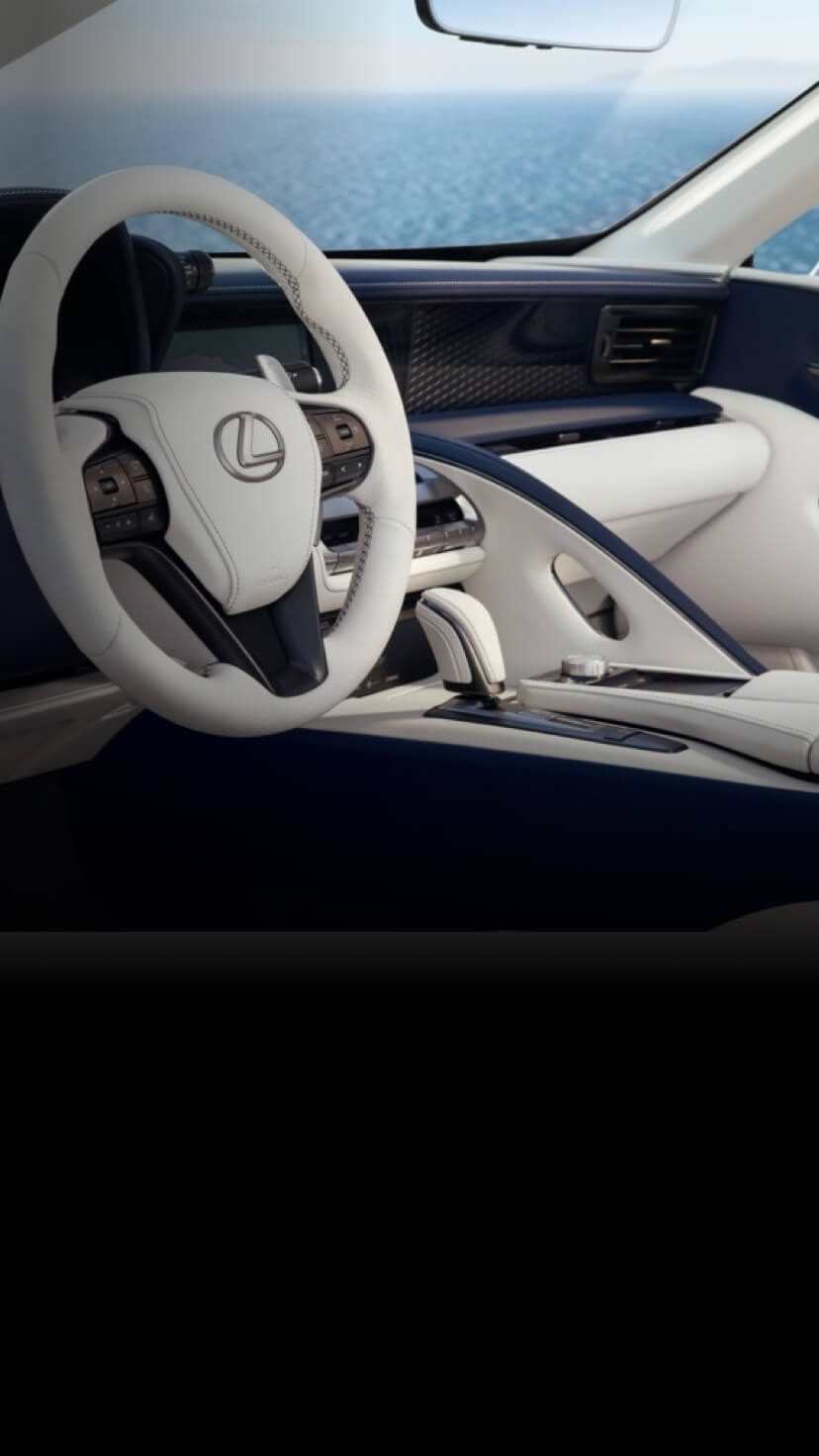

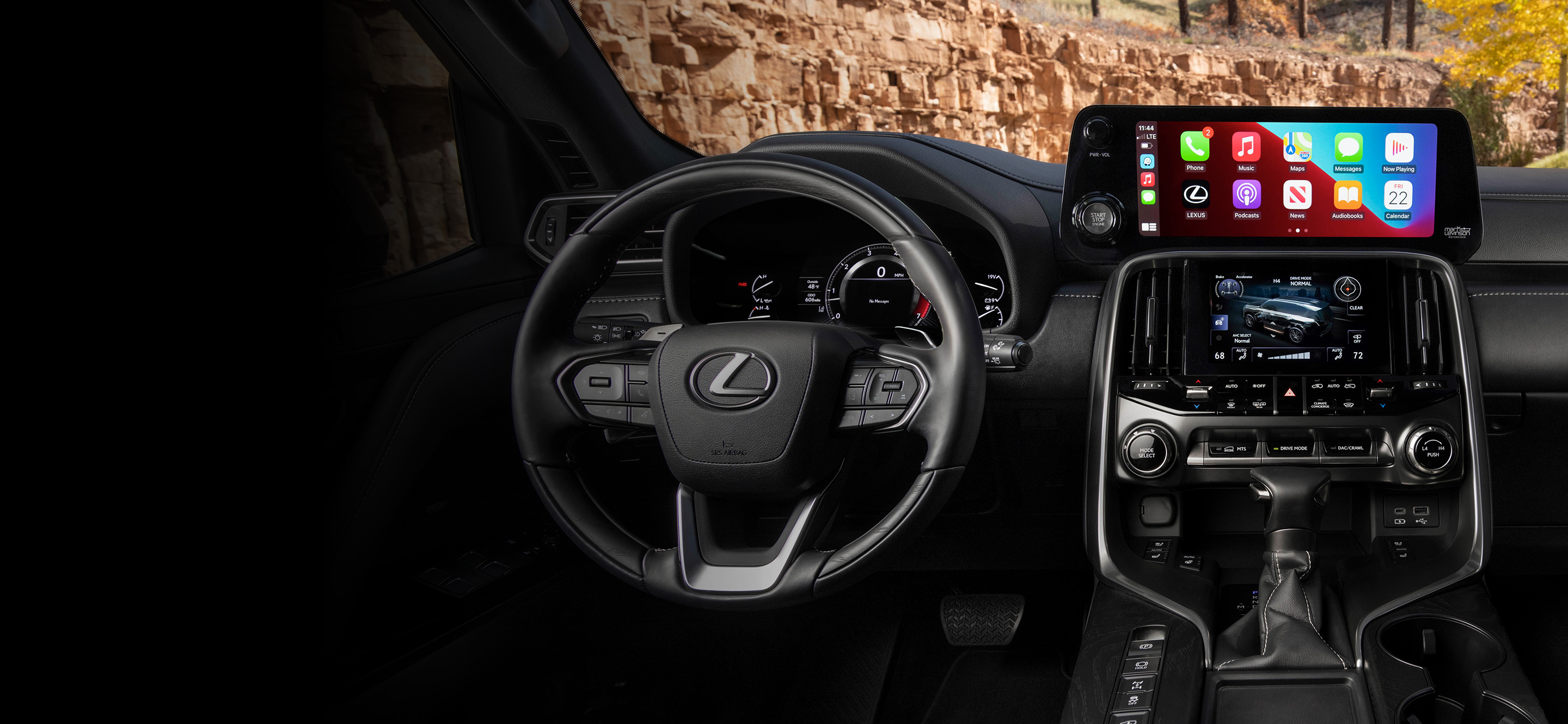

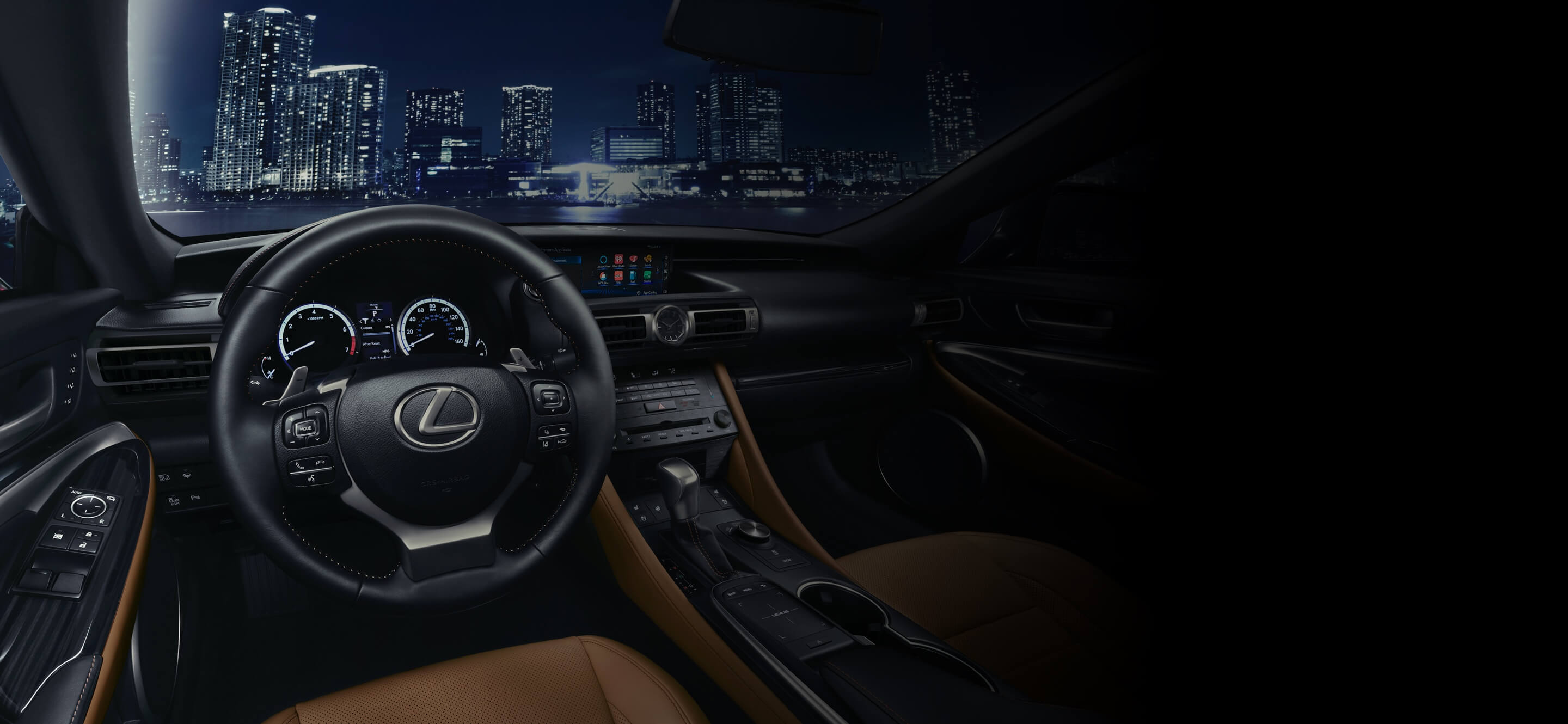

Clari-Fi

Our proprietary Clari-Fi technology improves the quality of highly compressed digital audio by restoring the authenticity, ambience, warmth and clarity that is lost in the compression process. Get ready to hear every note of your music perfectly just as the artist imagined.

  • Lexus Racing

    Passion and excellence are key to the heritage of both Lexus and Mark Levinson. By competing in the IMSA WeatherTech SportsCar Championship, the Lexus Racing engineering team is able to refine their performance philosophies and build implement new performance standards for production F and F Sport vehicles.

  • Lexus Racing

    We spend thousands of hours collaborating with Lexus engineers to achieve pure and precise Mark Levinson audio excellence inside each Lexus model. Now, we’re extending this partnership to the race track to push the boundaries even further.

  • Lexus Racing

    Peak performance never happens by accident. It is the result of an uncompromising devotion to engineering, craftsmanship and design. Working with Lexus, this devotion allows us to deliver an exhilarating music experience to every passenger both on and off the track.

Reviews

  • Automobile

    “Included in the Touring package, the 13-speaker Mark Levinson audio system offers a fidelity of sound rare in a car...and its clarity at even high volume will is sure to bring out the best in your favorite music.” - On the Lexus LC

  • Business Insider

    “And the RC F's 835-watt, 17- speaker Mark Levinson sound system is fantastic, the best I've ever experienced in a car.” - On the Lexus RC

  • CNET

    “On the tech front, the NX Black Line is the first NX to receive Lexus' excellent 14-speaker Mark Levinson sound system, one of Roadshow's perennial favorites.” – On the Lexus NX

  • CNBC

    “That volume knob also controls the Mark Levinson premium audio system, which is up there with the best I’ve heard. Even at full, ear-throbbing volume, the music is crisp and beautiful.” – On the Lexus GS

  • Gear Patrol

    “Audiophiles will rejoice in the quality produced by the 17-speaker package, which was carefully arranged throughout 10 different cabin locations so that tunes are optimally delivered...I was able to hear layers of favorite songs that I didn’t know existed.” – On the Lexus ES

  • Jalopnik

    “…Mark Levinson audio system…one of my favorite things about the LC 500. It’s crystal clear even at absurd volumes, with even-toned sound that perfectly compliments the grand-touring mission of the LC 500” – On the Lexus LC

  • Motor Authority

    “Audiophiles will want to opt for the terrific Mark Levinson audio system with 13 speakers, and 915 watts of power…” – On the Lexus LC

  • MotorTrend

    “The Mark Levinson stereo is as velvety on the ears as anything coming out of Germany, and the car's build quality is as impeccable as always.” – On the Lexus LS

  • Torque News

    “The only other option which I would recommend to those RX350 buyers – or anyone buying any new Lexus product – is the Mark Levinson audio system. The Levinson systems are, in my opinion, among the best on the market…” - On the Lexus RX

  • Wired

    “Although some of the most-established luxury automotive brands expressed interest, Levinson was reluctant to partner with anyone. No automotive company met Levinson’s standards for the ideal environment—a highly refined and exceptionally quiet ride, even at elevated speeds, combined with precise acoustics. Then Mark Levinson met Lexus.” – On the Lexus ES
